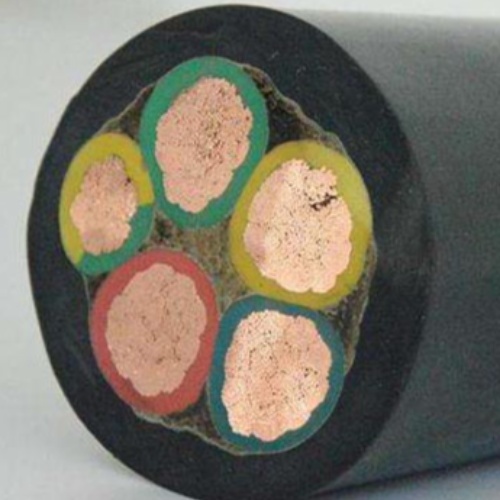

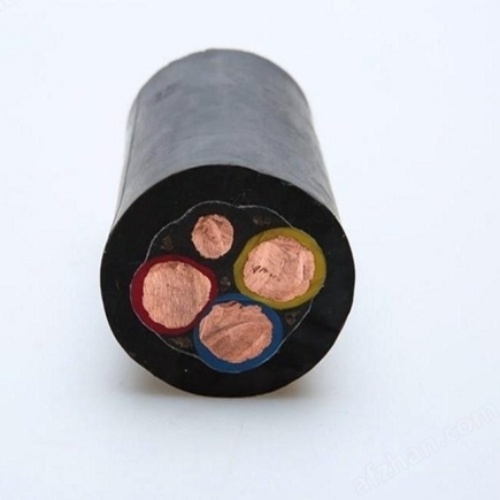

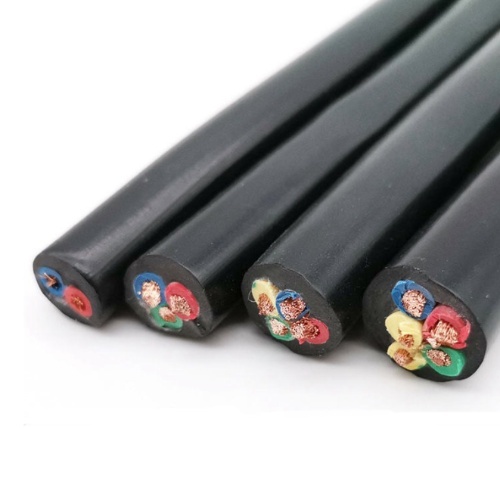

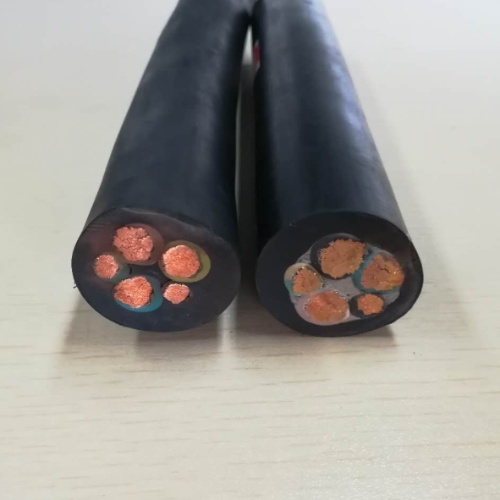

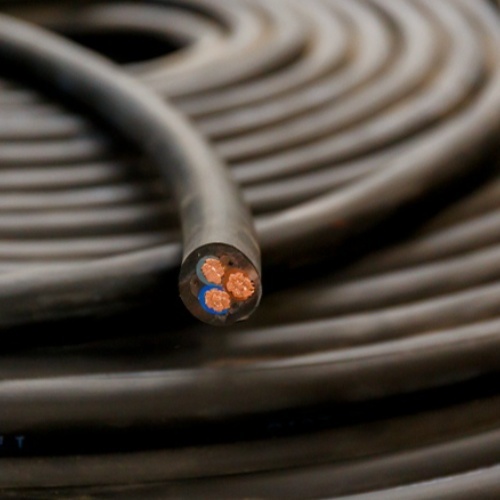

Oil Resistance XLPE Insulated Power Cable For Construction
Oil Resistance XLPE Insulated Power Cable For Construction
Oil Resistance XLPE Insulated Power Cable For Construction
Oil Resistance XLPE Insulated Power Cable For Construction
Oil Resistance XLPE Insulated Power Cable For Construction
Oil Resistance XLPE Insulated Power Cable For Construction
Oil Resistance XLPE Insulated Power Cable For Construction
Oil Resistance XLPE Insulated Power Cable For Construction
Oil Resistance XLPE Insulated Power Cable For Construction
Oil Resistance XLPE Insulated Power Cable For Construction
Specifications
Conductor Material: :
Copper
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Color :
Customized
Outer Sheath: :
PVC
Type :
XLPE Underground Cable
standard :
IEC 60502-1
Name :
Copper Conductor Cable
Description

ISO9001 XLPE insulated power cable for construction


XLPE insulated power cable

Cross-linked polyethylene XLPE has stable intermolecular bonds between polyethylene particles produced by thermochemical action due to the presence of organic peroxides.


XLPE has the same electrical properties as conventional polyethylene, and has better thermal and mechanical properties due to stable intermolecular bonding. This makes the maximum continuous conductor temperature of XLPE insulated cables 90°C, while the maximum continuous conductor temperature of conventional polyethylene insulated cables is 75°C. The maximum working temperature of the overload conductor is 130°C (under the emergency overload temperature, it shall not exceed 100 hours per year). The maximum conductor short-circuit temperature is 250°C. This provides important advantages in terms of cable ratings and has special significance in countries or situations where the ambient temperature is high and a derating factor must be applied.


The cross-linking technology is completely based on the "dry" cross-linking and cooling process. This eliminates the tiny inclusions of water in the insulation, which, unless prevented, will cause the so-called "water tree effect". The triple cross head can extrude the shielding layer over the conductor and extrude the shielding layer over the insulating layer in one technical operation. All these make the cable have excellent electrical, thermal and mechanical properties.

Physical and Electrical Characteristics

No.cores xInsulationSheathOuter ØweightCurrent ratings in air 30℃Current ratings buried 20℃
cross-sec.thicknessthicknessapprox.approx.
Nominal
PhaseNeutralvalue
mm²mmmmmmmmkg / kmAA
3×4+1×2.50.70.71.812.72773747
3×6+1×40.70.71.813.93634760
3×10+1×60.70.71.816.15276481
3×16+1×100.70.71.818.676685106
3×25+1×160.90.71.822.21140113137
3×35+1×160.90.71.824.61475139

164

Application


XLPE insulated cables can be used in almost all installations: ground, cable tray, indoor, power station, factory, exchange station. Because of their better thermal properties, they are especially recommended for the following occasions:
-High ambient temperature
-The cable is exposed to sunlight
-The cable is placed in the pipe of the concrete block
-Cables are grouped
-High emergency load is important
-Need high short circuit current
-High shielding layer must transmit high leakage current


Special functions on request:

•Oil resistance
• UV resistance
• Flame retardant cat. A, B, C
•Non-flame retardant
•termite
• Rodent
• Low smoke zero halogen
