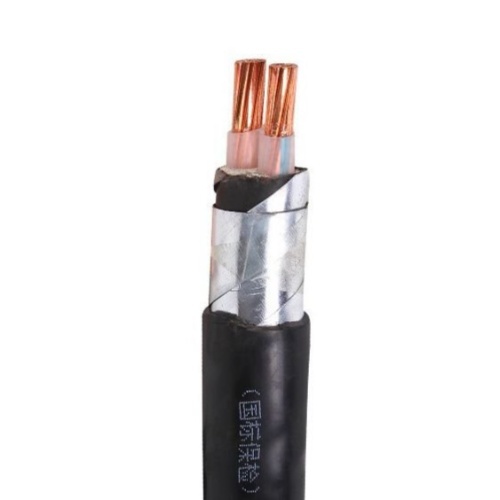

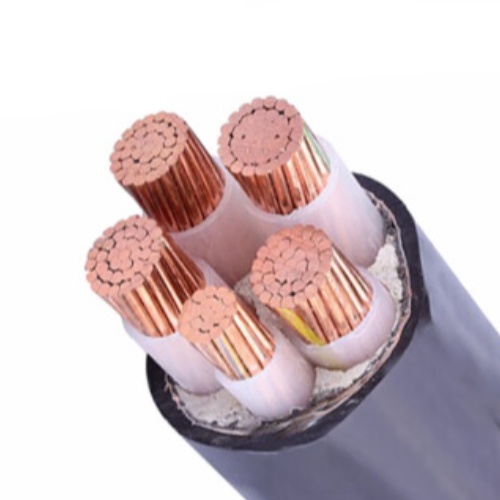

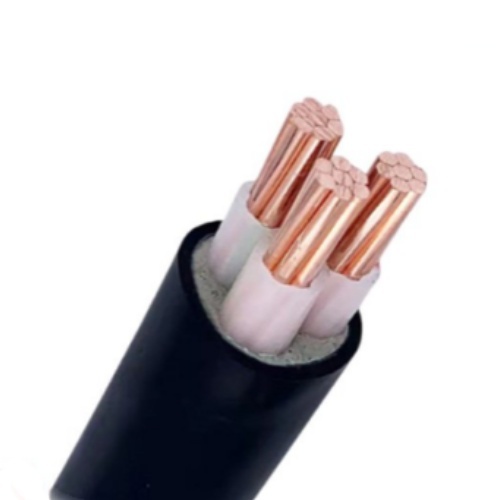

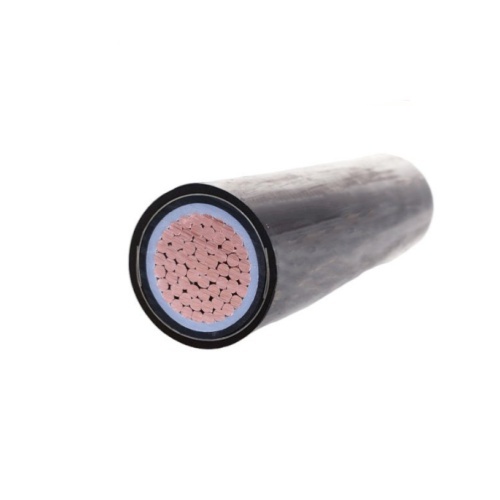

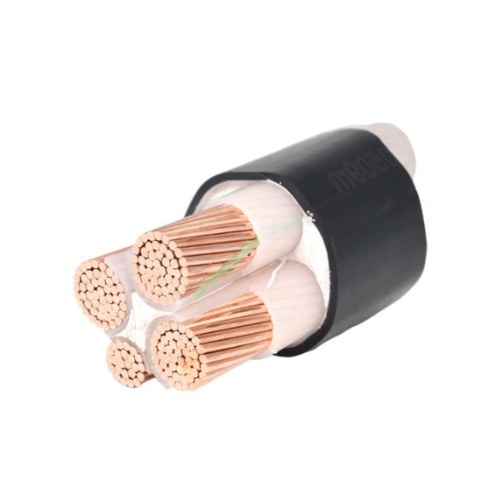

Pvc Sheath Insulated Armored 1kv Xlpe Electrical Cable
Pvc Sheath Insulated Armored 1kv Xlpe Electrical Cable
Pvc Sheath Insulated Armored 1kv Xlpe Electrical Cable
Pvc Sheath Insulated Armored 1kv Xlpe Electrical Cable
Pvc Sheath Insulated Armored 1kv Xlpe Electrical Cable
Pvc Sheath Insulated Armored 1kv Xlpe Electrical Cable
Pvc Sheath Insulated Armored 1kv Xlpe Electrical Cable
Pvc Sheath Insulated Armored 1kv Xlpe Electrical Cable
Pvc Sheath Insulated Armored 1kv Xlpe Electrical Cable
Pvc Sheath Insulated Armored 1kv Xlpe Electrical Cable
Specifications
Conductor Material: :
Copper
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Color :
Customized
Outer Sheath: :
PVC
Type :
XLPE Underground Cable
standard :
IEC 60502-1
Name :
Copper Conductor Cable
Description

Xlpe insulated copper electric power cable armored 0.6 / 1kv

Features and uses of XLPE insulated power cables:

The cross-linked polyethylene insulated power cable has the characteristics of high mechanical strength, strong environmental stress resistance, excellent electrical performance, and strong current resistance.


Chemical corrosion. In addition, the lightweight and simple product is easy to use. This product is suitable for transmission and distribution systems with a rated voltage of 0.6/1kv.


It has the main characteristics of fire-resistant cables. The cables are not easy to catch fire or continue to burn within a certain range. It is suitable for power stations, subways, tunnels, high-rise buildings, and large-scale


Dense distributed cables in industrial and mining enterprises, oil fields, coal mines and other places.


Executive standard:


GB/T 12706, IEC 60502 and related domestic and foreign standards, such as BS, VDE, JIS, AEIC, etc.

Physical and Electrical Characteristics

No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164

What is cross-linked polyethylene/XLPE?

Cross-linked polyethylene, also known as XLPE, is a form of insulation produced by heating and high pressure. One way to produce XLPE insulation is to irradiate the compound. Another method is to use peroxide to chemically crosslink the compound. The most important attribute of XLPE is its electrical properties. Cables with XLPE insulation can carry large currents and high voltages. A common application of XLPE is medium and high voltage applications. The physical and electrical properties of XLPE make it an ideal choice for use in industrial environments.

Common types of XLPE wires or cables

Building wire (XHHW)
Car line (GXL)
power cable
Control Cable
Direct buried thread
