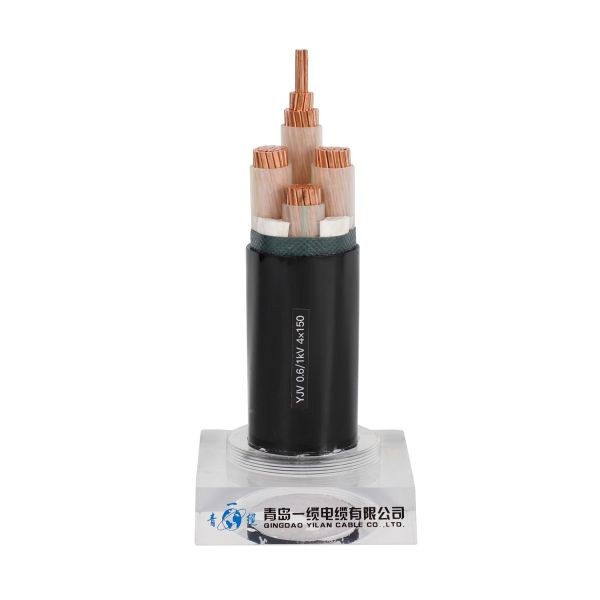

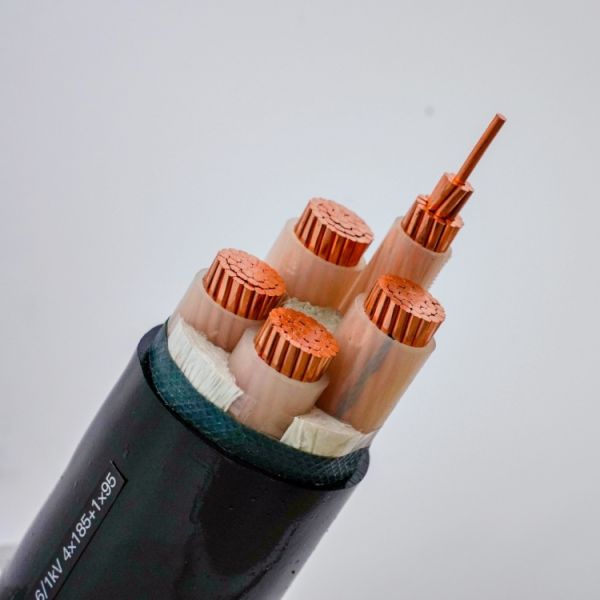

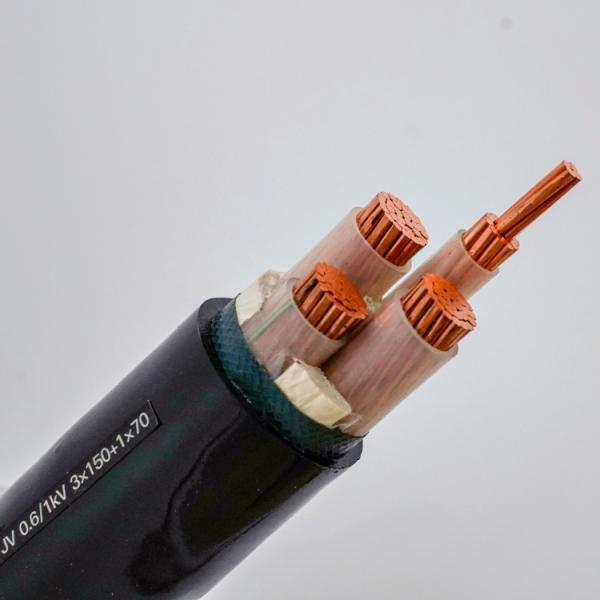

PVC Sheathed Steel Tape 6KV 10KV Xlpe Insulated Wire
PVC Sheathed Steel Tape 6KV 10KV Xlpe Insulated Wire
PVC Sheathed Steel Tape 6KV 10KV Xlpe Insulated Wire
PVC Sheathed Steel Tape 6KV 10KV Xlpe Insulated Wire
PVC Sheathed Steel Tape 6KV 10KV Xlpe Insulated Wire
PVC Sheathed Steel Tape 6KV 10KV Xlpe Insulated Wire
PVC Sheathed Steel Tape 6KV 10KV Xlpe Insulated Wire
PVC Sheathed Steel Tape 6KV 10KV Xlpe Insulated Wire
PVC Sheathed Steel Tape 6KV 10KV Xlpe Insulated Wire
PVC Sheathed Steel Tape 6KV 10KV Xlpe Insulated Wire
Specifications
Conductor Material: :
Copper
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Color :
Customized
Outer Sheath: :
PVC
Type :
XLPE Underground Cable
Name :
Copper Conductor Cable
standard :
IEC 60502-1
Description

Xlpe insulated PVC sheathed steel tape steel wire armored power cable

1. XLPE cable standard:


According to GB12706 (equivalent to IEC60502), it can also be carried out in accordance with ASTM, BS, DIN and AS/NZS standards or other requirements.

2. Rated voltage of XLPE cable:

0.6 / 1KV 6 / 10KV; 8.7 / 15KV; 12 / 20KV; 18 / 20KV; 21 / 35KV; 6 / 35KV

3 . Physical and Electrical Characteristics

No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164

4. The structure of XLPE cable:

Conductor: copper or aluminum

Insulation: XLPE

Inner sheath: PVC or PE

Armour: galvanized steel strip, galvanized steel wire

Outer sheath: PVC or PE

No. Number of cable cross-sections: 1 core (single core), 2 cores (double core), 3 cores, 4 cores (4 cores with equal cross-sectional area or 3 equal cross-sectional areas + 1 neutral core with small cross-sectional area), 5 Core (5 3 equal cross-sectional area cores + 2 small-area neutral cores or 4 equal cross-sectional areas + 1 small-area neutral core. We provide armored and unarmored types for the above cables.

It can also be made according to customer requirements.

5 . Advantage:

One kind. Excellent electrical and mechanical properties

b. Best resistance to chemical corrosion and thermal aging, environmental stress and flame retardancy

C. Simple structure, easy to use

d. Reduce expense
