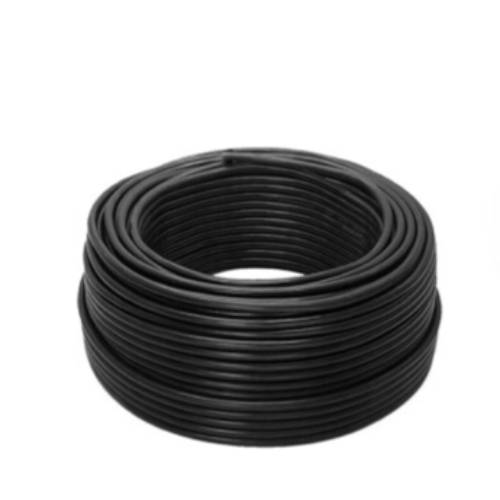

0.6KV 50mm Copper Conductor Steel Tape XLPE Insulated Cable
0.6KV 50mm Copper Conductor Steel Tape XLPE Insulated Cable
0.6KV 50mm Copper Conductor Steel Tape XLPE Insulated Cable
0.6KV 50mm Copper Conductor Steel Tape XLPE Insulated Cable
0.6KV 50mm Copper Conductor Steel Tape XLPE Insulated Cable
0.6KV 50mm Copper Conductor Steel Tape XLPE Insulated Cable
0.6KV 50mm Copper Conductor Steel Tape XLPE Insulated Cable
0.6KV 50mm Copper Conductor Steel Tape XLPE Insulated Cable
0.6KV 50mm Copper Conductor Steel Tape XLPE Insulated Cable
0.6KV 50mm Copper Conductor Steel Tape XLPE Insulated Cable
Specifications
Conductor Material: :
Copper
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Color :
Customized
Outer Sheath: :
PVC
Type :
XLPE Underground Cable
standard :
IEC 60502-1
Name :
Copper Conductor Cable
Description

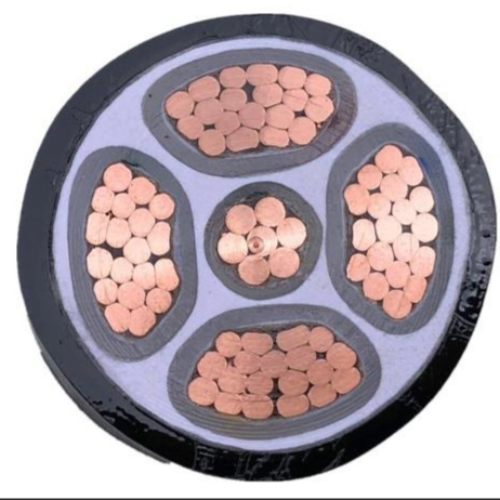

0.6 / 1KV 50mm XLPE insulated steel tape armored power cable

1 . standard

The products are manufactured according to GB12706, IEC60502 and BS6346, VDE, AS/NZS, UL and other standards or according to customer requirements.

2 . usage:

This product is suitable for distribution lines or fixed installations with rated power frequency voltage not exceeding 15Kv and AC 50Hz.

3 . Physical and Electrical Characteristics

No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164

4 . Application range:

1. Operating characteristics:

Maximum conductor working temperature: 90°C
During short circuit (less than 5 seconds), the maximum temperature of the cable conductor shall not exceed 250°C. When laying cables, the ambient temperature should not be lower than 0°C.

2. The bending radius of the cable:
Single-core cable: non-armored cable 20D, armored cable 15D
Core cable: unarmored cable 15D, armored cable 12D.
Remarks: D represents the actual outer diameter of the cable
