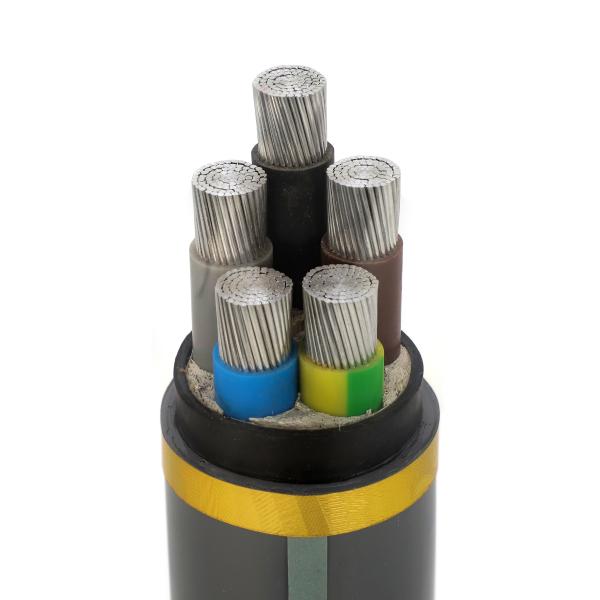

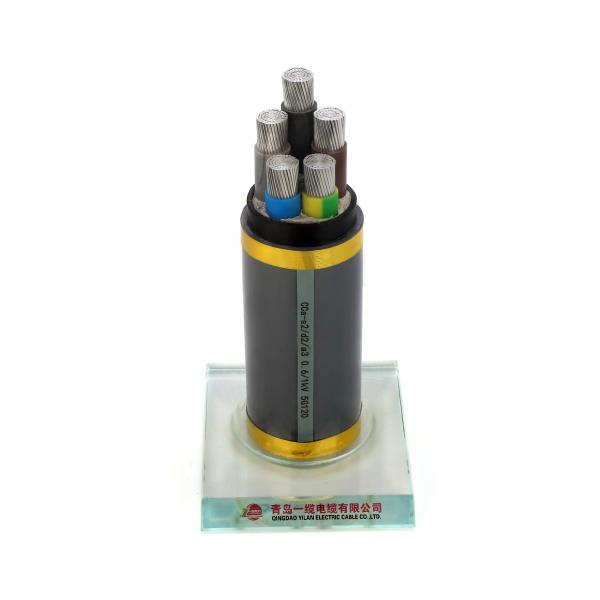

1kv Copper Conductor Fire Resistant XLPE Underground Cable
1kv Copper Conductor Fire Resistant XLPE Underground Cable
1kv Copper Conductor Fire Resistant XLPE Underground Cable
1kv Copper Conductor Fire Resistant XLPE Underground Cable
Specifications
Conductor Material: :
Copper
Color :
Customized
Outer Sheath: :
PVC
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Type :
XLPE Underground Cable
standard :
IEC 60502-1
Name :
Copper Conductor Cable
Description

Fire-Resistant XLPE Underground Cable

XLPE cable


XLPE is cross linked polyethylene material and PVC stands for polyvinyl chloride insulation. Both XLPE cable and PVC cable are the most popular cables. While sometimes we need to make a right choice between the two insulated cables especially when we need to choose a kind of Low voltage (0.6/1kv) Cables in a project. Therefore, it is of vital importance to differentiate XLPE cable and PVC cable.

Physical and Electrical Characteristics

No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164

Application field

These cables are used for power supply in low-voltage installation systems, and are suitable for installation in indoor and outdoor, cable ducts, underground, power and exchange stations, local energy distribution, and industrial plants without mechanical damage.

Advantages of XLPE cable


As the structure changes, XLPE has obtained excellent electrical properties. XLPE cables also have higher overload capacity in emergency situations. XLPE cable is an ideal choice for power transmission and distribution because it has high corrosion resistance in contaminated atmospheric environments and has better resistance to chemicals and corrosive alkalis. In addition, it can withstand vibration and thermal shock

XLPE insulators will not melt or drip even at the temperature of the soldering iron, and have increased flow resistance and improved aging characteristics. Compared to PE insulators, another advantage of XLPE insulators for LV and MV cables is improved water tree resistance.
