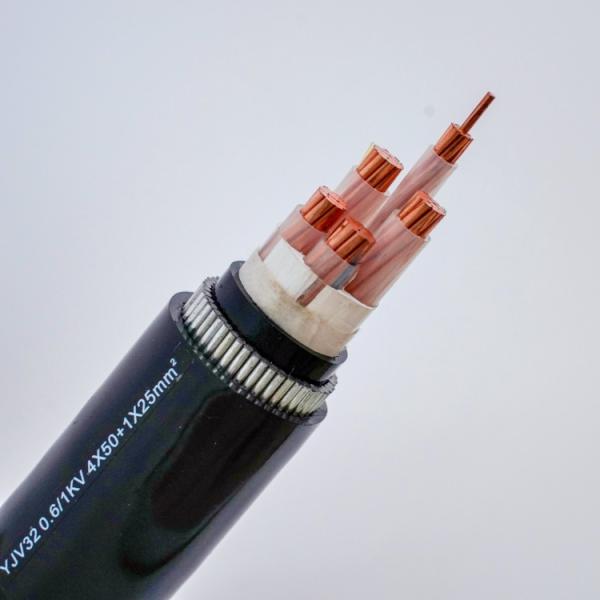

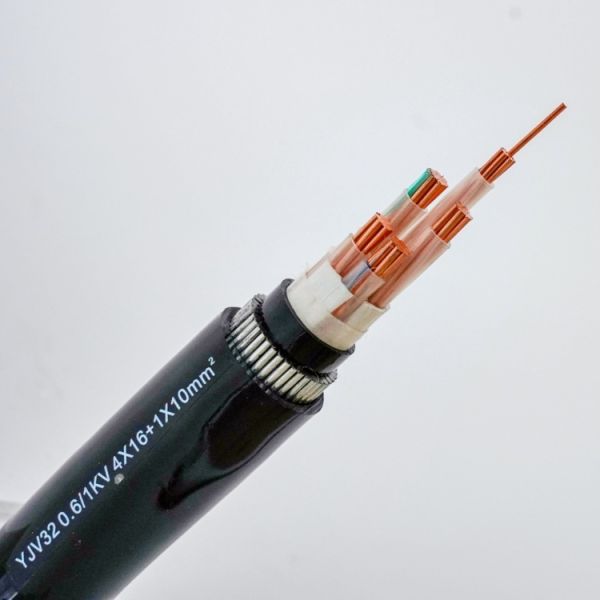

1KV IEC60502-1 Underground 4 Core Xlpe Cable
1KV IEC60502-1 Underground 4 Core Xlpe Cable
1KV IEC60502-1 Underground 4 Core Xlpe Cable
1KV IEC60502-1 Underground 4 Core Xlpe Cable
1KV IEC60502-1 Underground 4 Core Xlpe Cable
1KV IEC60502-1 Underground 4 Core Xlpe Cable
1KV IEC60502-1 Underground 4 Core Xlpe Cable
1KV IEC60502-1 Underground 4 Core Xlpe Cable
Specifications
Conductor Material: :
Copper
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Color :
Customized
Outer Sheath: :
PVC
Type :
XLPE Underground Cable
standard :
IEC 60502-1
Name :
Copper Conductor Cable
Description

0.6/1KV Four Core CU/XLPE/PVC 0.6/1kV IEC60502-1 For Underground Application

Application:


Power cables: used in power stations, industrial and switchgear, and urban power supply networks indoors, cable ducts, outdoor and buried cables.

Put up:

1) Conductor: Type 2 copper or aluminum stranded wire

2) Insulation: XLPE

3) Armor: steel wire or steel belt

4) Sheath: PVC or PE

Standard:

Conductors of IEC 60228 insulated cables

IEC 60502-1 Insulation class 1 kV (Um = 1.2kV) to 30kV (Um = 36kV) with extruded insulation power cables and accessories-Part 1: Rated voltage of 1 kV (Um = 1.2kV) Cable 3 kV (Um = 3.6kV).

Physical and Electrical Characteristics

No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164
