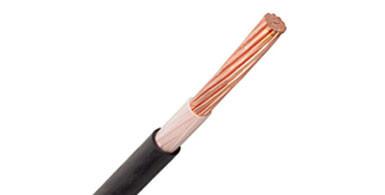

4mm 6mm Underground 0.6kV Xlpe Insulated Power Cable
4mm 6mm Underground 0.6kV Xlpe Insulated Power Cable
Specifications
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Name :
Copper Conductor Cable
Conductor Material: :
Copper
standard :
IEC 60502-1
Outer Sheath: :
PVC
Color :
Customized
Type :
XLPE Underground Cable
Description

0.6kV / 1kV XLPE insulated PVC sheathed power cable

XLPE insulated cable

Single-core XLPE insulated cables/wires have ordinary annealed solid or stranded round copper conductors with XLPE insulation and PVC sheath. Also called XLPE cable or CU/XLPE/PVC 0.6/1000V. Single-core insulated cables can be used to comply with AS 5000.1, IEC 60502 and BS7889 standards.

Holdone provides customers with high quality 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm single core cables/wires. Welcome to contact us!

Physical and Electrical Characteristics

No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164

Description of single core power cord (XLPE insulation)

Rated temperature: 90℃

Rated voltage: 600/1000V

Reference standard: IEC60502

Conductor: Shaped and round stranded copper conductor

Insulation: insulated with cross-linked polyethylene compound

PVC bed

Flame-retardant PVC sheath as a whole

Application of single-core power cable (cross-linked polyethylene insulation)


•Used for fixed installation of power transmission and distribution systems, tunnels and pipelines, etc.

•For situations that should not be subjected to external mechanical forces
