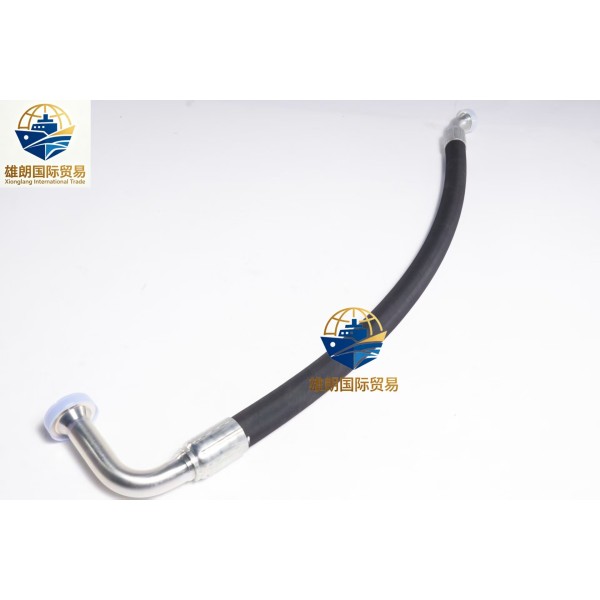

Original Hydraulic Hoses Assembly 4SH25-SFS45-SFS9032H130-1120V180, Sany Material Code: 60208345. All hydraulic hoses for Sany machinery are available.
Model: 4SH25-SFS45-SFS9032H130-1120V180
Material Code: 60208345
Compatible Models: Sany SY365H / SY375H and other 36–37 ton excavators
Application: Main pump - main control valve / boom high-pressure oil circuit, original factory four-ply steel wire braided high-pressure hose.
Model Breakdown (At a Glance)
- 4SH25: EN856 standard, 4-ply steel wire braid, inner diameter 25mm (1")
- SFS45: One end 45° flange fitting (SFS heavy-duty flange)
- SFS90: Other end 90° flange fitting
- 32H130: Flange specification DN32, thickness 130mm
- 1120V180: Effective length 1120mm, assembly angle 180°
Core Parameters (Original Factory Specifications)
- Working Pressure: 38MPa (380bar)
- Bursting Pressure: ≥152MPa (1520bar), safety factor 4:1
- Bending Radius: ≥340mm
- Temperature Range: -40℃～+100℃ (hydraulic oil)
- Structure: Oil-resistant inner rubber → 4-ply steel wire braid → Wear-resistant outer rubber
- Fittings: Original SFS flanges with O-rings, leak-proof and explosion-proof
- Length/Weight: 1120mm / Approximately 6.5kg
Product Advantages
1. Original Genuine Parts, High-Pressure Heavy-Duty
Sany original parts (60208345) compatible with the main high-pressure circuit of 36-ton excavators, pressure resistance up to 380bar, impact and fatigue resistant.
2. Four-Ply Steel Wire, Explosion-Proof and Durable
4SH braiding structure, pulse life >400,000 cycles; outer rubber is oil and aging resistant, ensuring long service life in mining/heavy-duty conditions.
3. Flange Sealing, Zero Leakage
Dual SFS flanges with imported O-rings ensure reliable high-pressure sealing, avoiding risks of hose rupture and oil leakage.
4. Fixed-Length Molding, Easy Installation
Factory-standard length 1120mm and 180° angle allow direct replacement without modification, reducing interference.
Installation Compatibility Notes
- Compatible With: High-pressure interfaces of main pumps, main control valves, and boom cylinders on SY365H/SY375H.
- Installation: Clean flange surfaces, replace O-rings with new ones; secure firmly to avoid bending radius <340mm.
- Pressure Testing: Maintain 38MPa for 5 minutes; no leakage indicates pass.
