M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve
M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve
M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve
M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve
Specifications
MOQ :
5000PCS
Brand Name :
XINIXA
Certification :
ISO9001
Place of Origin :
CHINA
Price :
1.5USD/PCS
Payment Terms :
T/T
Supply Ability :
5000000 PCS/ DAY
Delivery Time :
5-8 working days
Packaging Details :
Corrugated Carton / Box
Model Number :
M04X0.7 Vent Valve
Part name/ Product model :
Metal threaded waterproof air permeable valve
P/N/ code :
CJ04-N005
Thread specifications :
M04X0.7
Length of thread :
5.0mm
Breathability & Water resistance :
☑ M002≥60ml/min, IP67>10Kpa (about equal to 1.0 m water pressure)
Working temperature :
-40℃ ~125℃
Salt atmosphere :
48 hours (IEC 68-2-11)
Torsion :
0.3 ±0.1Nm
Description

CJ04-N005


Part name/ Product model

Metal threaded waterproof air permeable valve

Customer / Customer name


P/N/ code

CJ04-N005

Customer P/N / Customer part number

product appearance


Thread specifications

M04X0.7

Length of thread

5.0mm

Material quality

Stainless steel ☑ aluminum alloy Copper Other Please note:

Colour

☑Natural color Oxidized black Nickel plating Other please note:

Gasket ring

Black O-ring Original ☑color O-ring Black flat washer Original color flat washer

Logo

Logo No logo

Product performance characteristics


Breathability

&

Water resistance

☑ M002≥60ml/min, IP67>10Kpa (about equal to 1.0 m water pressure)

Working temperature

-40℃ ~125℃

Salt atmosphere

48 hours (IEC 68-2-11)

Torsion

0.3 ±0.1Nm

Design and dimensions

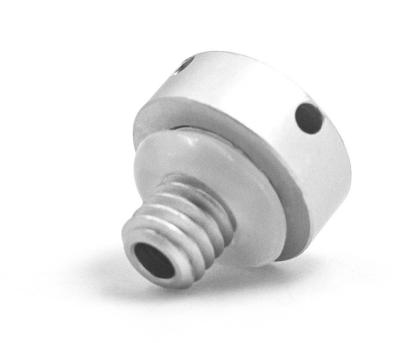

Product display

M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve

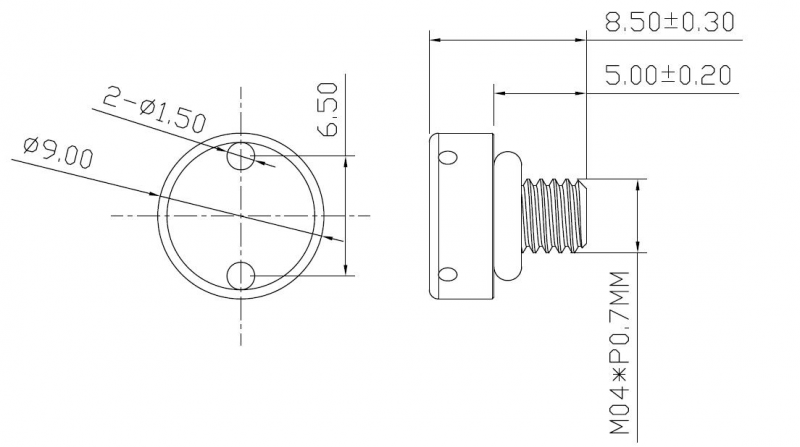

Design dimension

 M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve

Installation suggestions

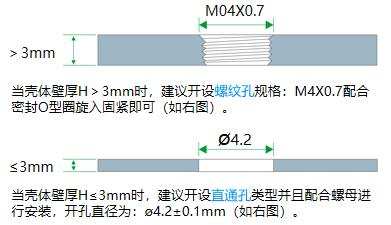

Recommended size

M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve

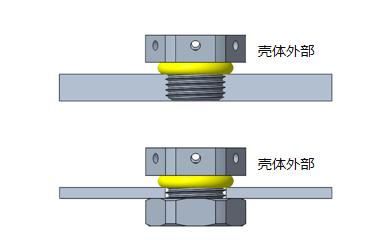

Installation diagram

 M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve
