Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen
Specifications
Model Number :
Owen 12864C-3
Resolution :
128*64
is_customized :
Yes
View Size :
62.2x44mm
Color :
Yellow Green Film
Display Mode :
12864
Origin :
Mainland China
Controller :
SBN0064
Hign-concerned Chemical :
None
Outline Dimension :
78x70x12.5mm
Type :
COB
Description

Owen 12864C-3

The Owen 12864C-3 is a reliable and versatile display module designed for a wide range of industrial and commercial applications. Its robust construction and clear display make it an ideal choice for integration into your products.

Key Benefits:

  • Clear and crisp 128x64 resolution display
  • Compact and durable COB (Chip-on-Board) design
  • Customizable to meet specific project requirements
  • Wide operating temperature range for reliable performance
  • Easy integration with various control systems

Target Industries and Applications: Industrial control, medical devices, instrumentation, consumer electronics, and automotive displays.

Product Attributes

FOB Unit: piece
Product MOQ: N/A
FOB Price: $33.8
Packaging & Delivery: N/A

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 12864
Resolution 128*64
Is Customized Yes
Model Number Owen 12864C-3
Type COB
Origin Mainland China

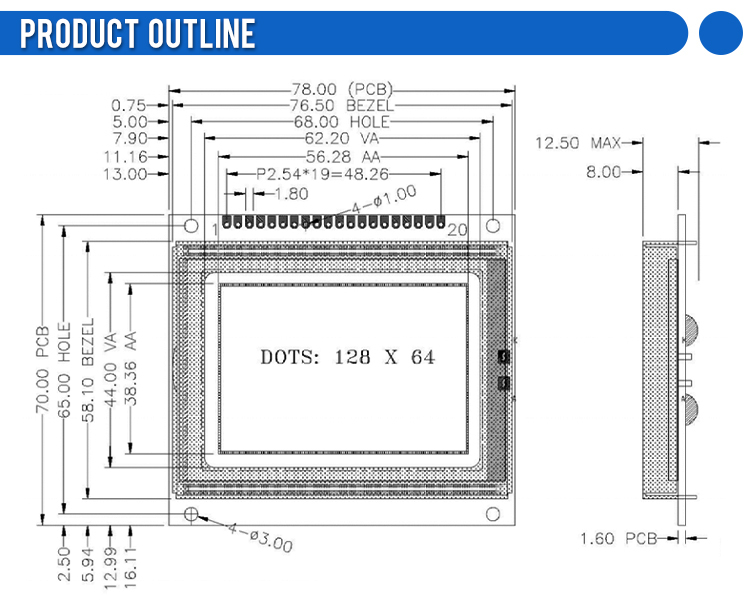

Outline Dimension 78x70x12.5mm
View Size 62.2x44mm
Controller SBN0064

Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen

Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen

Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen

Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen

Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen

Yellow Green Film LCM12864C-3 78X70MM 128X64 20PIN Parallel Port Controller SBN0064 Monochrome Screen

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
