European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
Specifications

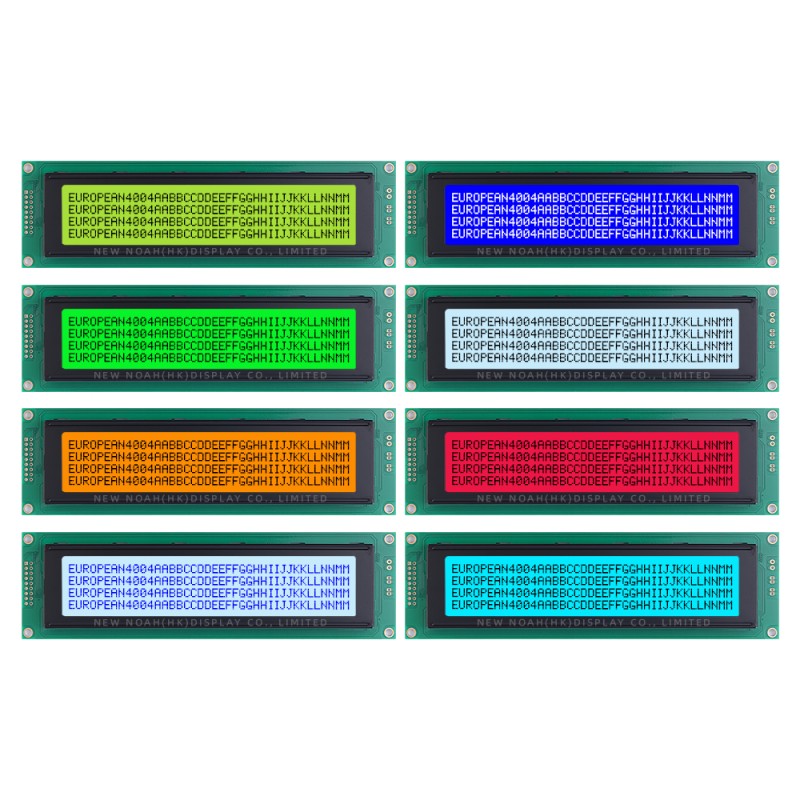

Color :
Red light-black font, Gray light-black font, Green light-black font, Gray light-blue font, Orange light-black font, Ice blue light-black font
Display Mode :
4004
Hign-concerned Chemical :
None
Type :
COB
Controller :
ST7066U

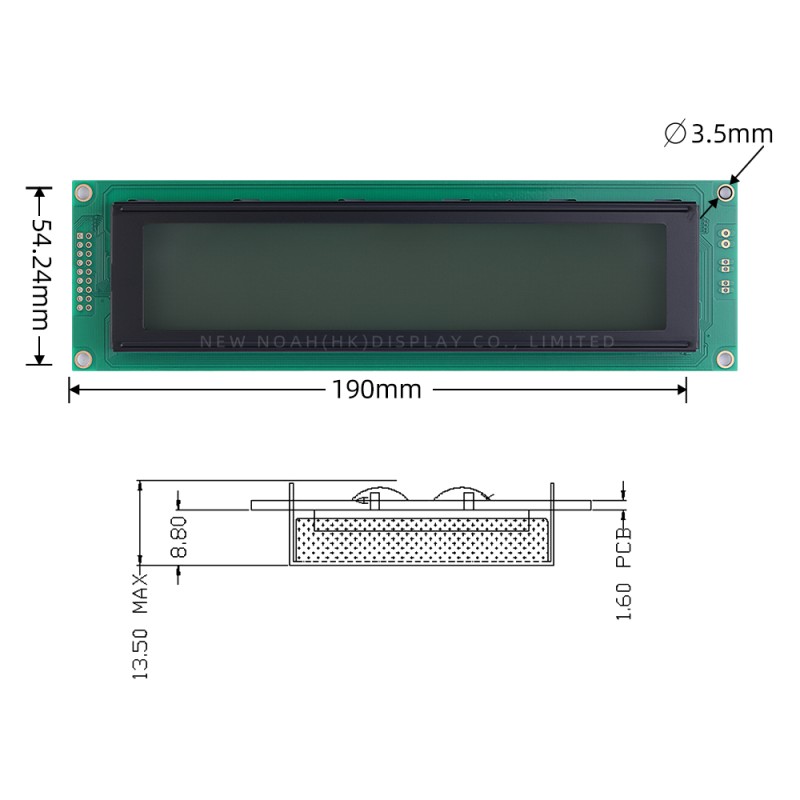

Outline Dimension :
190×54.24×13.5mm
is_customized :
Yes
Resolution :
40*04
Model Number :
European 4004A3
Origin :
Mainland China
View Size :
147×29.5mm
Description

European 4004A3

The European 4004A3 is a high-quality display module designed for various industrial and commercial applications. It offers reliable performance and clear visibility.

Key Benefits:

  • Clear and crisp display
  • Durable construction for long-lasting use
  • Easy integration into existing systems
  • Customizable options available

Target Industries: Industrial automation, consumer electronics, and instrumentation.

Applications: Control panels, measuring instruments, and display systems.

Product Attributes

FOB Unit: piece
Product MOQ: N/A
FOB Price: 12.81
Packaging & Delivery: Tax excluded, add at checkout if applicable.

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 4004
Resolution 40*04
is_customized Yes
Model Number European 4004A3
Type COB
Origin Mainland China
Outline Dimension 190×54.24×13.5mm
View Size 147×29.5mm
Controller ST7066U


European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module

European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module

European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module

European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module

European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module

European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module

European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622


Product Images

European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
Send your message to this supplier
Send Now

European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module

Ask Latest Price
Product Detail
Color :
Red light-black font, Gray light-black font, Green light-black font, Gray light-blue font, Orange light-black font, Ice blue light-black font
Display Mode :
4004
Hign-concerned Chemical :
None
Type :
COB
Controller :
ST7066U
Outline Dimension :
190×54.24×13.5mm
Contact Supplier
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module
European Gray Film 4004A3 Character Module LED Backlight 4004 Character LCD Module

Shenzhen Xinnuoya Display Technology Co., Ltd.

Verified Supplier
1 Years
shenzhen
Since 2009
Business Type :
Manufacturer
Main Products :
0801, 12232, TFT LCD Module
Total Annual :
300000 million-500000 million
Employee Number :
100~150
Certification Level :
Verified Supplier
