Specifications
Type :
COB
Origin :
Mainland China
View Size :
62×25.5mm
Hign-concerned Chemical :
None
is_customized :
Yes

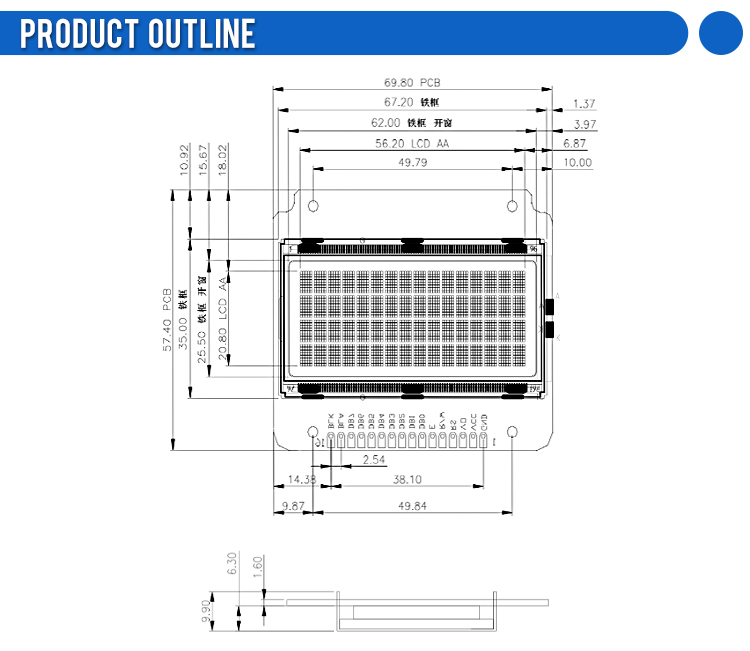

Outline Dimension :
69.8×57.4×9.9mm
Controller :
ST7066
Color :
Blue Film
Resolution :
16*04
Model Number :
1604B
Display Mode :
1604
Description

1604B Display Module

The 1604B is a reliable and efficient display module designed for a variety of industrial and commercial applications. This COB (Chip-on-Board) type display offers clear visibility and consistent performance.

Ideal for integration into control panels, instrumentation, and other devices requiring a compact and informative display solution.

  • Clear and Readable Display
  • Compact Design for Easy Integration
  • Durable COB Technology
  • Wide Range of Applications

Target Industries: Industrial Automation, Instrumentation, Consumer Electronics

Product Attributes

FOB Unit: piece
Product MOQ: N/A
FOB Price: 3.23
Packaging & Delivery: N/A

Technical Specifications

Parameter Value
Hign-concerned Chemical None
Display Mode 1604
Resolution 16*04
Is Customized Yes
Model Number 1604B
Type COB
Origin Mainland China
Outline Dimension 69.8×57.4×9.9mm
View Size 62×25.5mm
Controller ST7066


Blue Film White Letters 1604B Industrial Display Screen 02*16 LCM Display Module Dot Matrix Factory Outlet

Blue Film White Letters 1604B Industrial Display Screen 02*16 LCM Display Module Dot Matrix Factory Outlet

Blue Film White Letters 1604B Industrial Display Screen 02*16 LCM Display Module Dot Matrix Factory Outlet

Blue Film White Letters 1604B Industrial Display Screen 02*16 LCM Display Module Dot Matrix Factory Outlet

Blue Film White Letters 1604B Industrial Display Screen 02*16 LCM Display Module Dot Matrix Factory Outlet

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
