Specifications
is_customized :
Yes
Model Number :
1602W-6

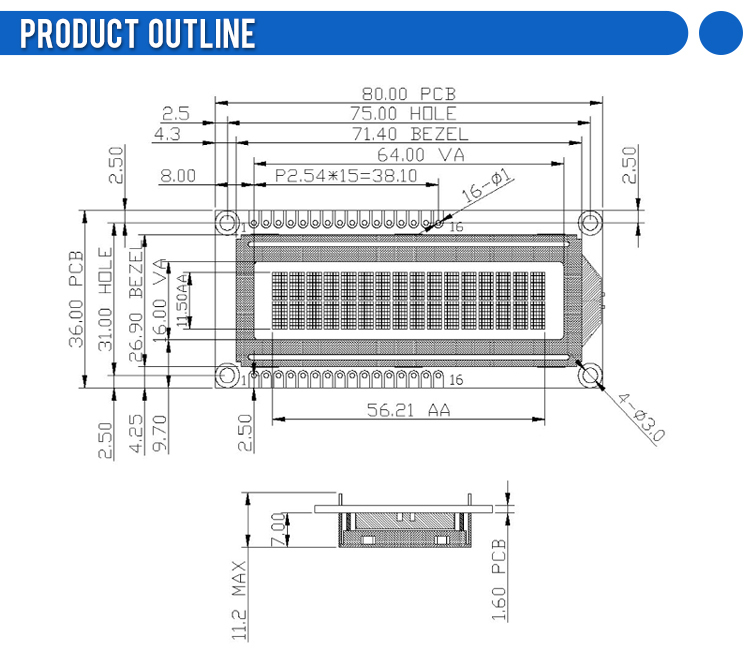

Outline Dimension :
80x36x11.2mm
Controller :
AIP31066L
Origin :
Mainland China
Type :
COB
View Size :
64x16mm
Hign-concerned Chemical :
None
Display Mode :
1602
Resolution :
16*02
Color :
Yellow Green Film
Description

1602W-6 LCD Display

The 1602W-6 is a reliable and versatile LCD display module, ideal for a wide range of industrial and commercial applications. Its clear display and compact design make it an excellent choice for integrating into various devices and systems.

Key Benefits:

  • Clear and readable 16x2 character display
  • Compact and easy to integrate design
  • Low power consumption
  • Durable and reliable performance
  • Customizable options available

Target Industries and Applications: Industrial control, instrumentation, consumer electronics, automotive displays, and more.

Product Attributes

FOB Unit Piece
Product MOQ Not Mentioned
FOB Price $1.74
Packaging & Delivery Not Mentioned

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 1602
Resolution 16*02
Is Customized Yes
Model Number 1602W-6
Type COB
Origin Mainland China
Outline Dimension 80x36x11.2mm
View Size 64x16mm
Controller AIP31066L


Yellow Green Film 1602W-6 Double Row 16PIN 2X16 LCM Display Module AIP31066L LCD Display Screen

Yellow Green Film 1602W-6 Double Row 16PIN 2X16 LCM Display Module AIP31066L LCD Display Screen

Yellow Green Film 1602W-6 Double Row 16PIN 2X16 LCM Display Module AIP31066L LCD Display Screen

Yellow Green Film 1602W-6 Double Row 16PIN 2X16 LCM Display Module AIP31066L LCD Display Screen

Yellow Green Film 1602W-6 Double Row 16PIN 2X16 LCM Display Module AIP31066L LCD Display Screen

Yellow Green Film 1602W-6 Double Row 16PIN 2X16 LCM Display Module AIP31066L LCD Display Screen

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
