Specifications
Display Mode :
19264
Type :
COB
Model Number :
19264-1M
View Size :
104x39mm
Hign-concerned Chemical :
None

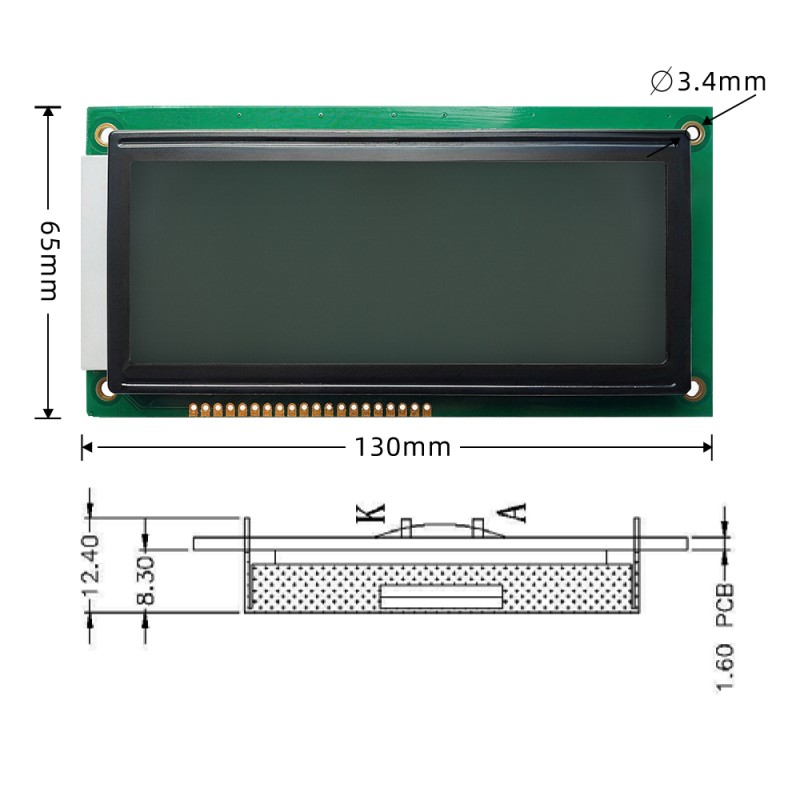

Outline Dimension :
130x65x12.4mm
Origin :
Mainland China
is_customized :
Yes
Controller :
ST7920
Color :
Gray Film
Resolution :
192*64
Description

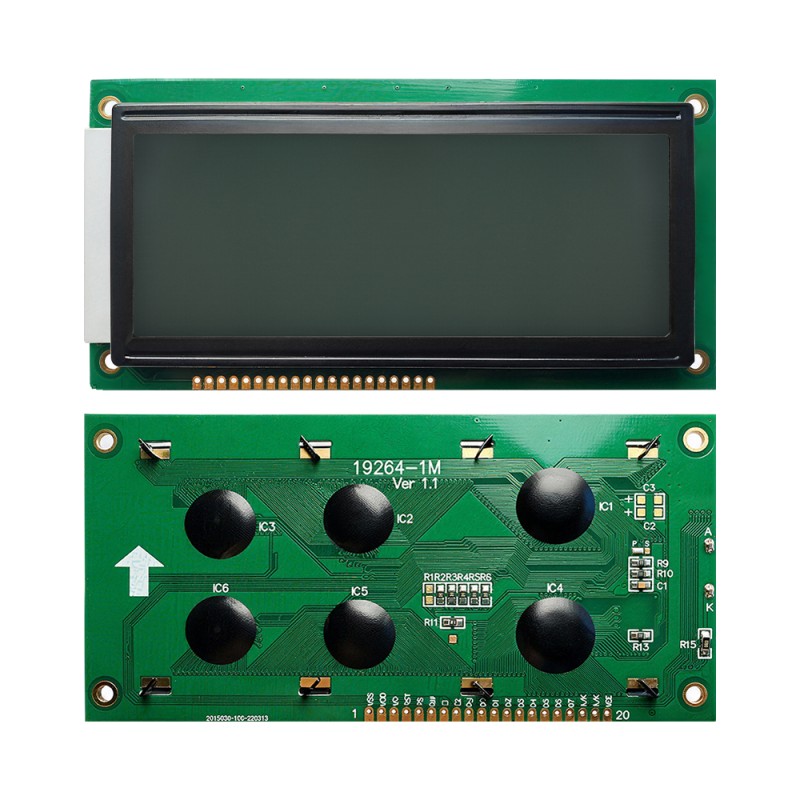

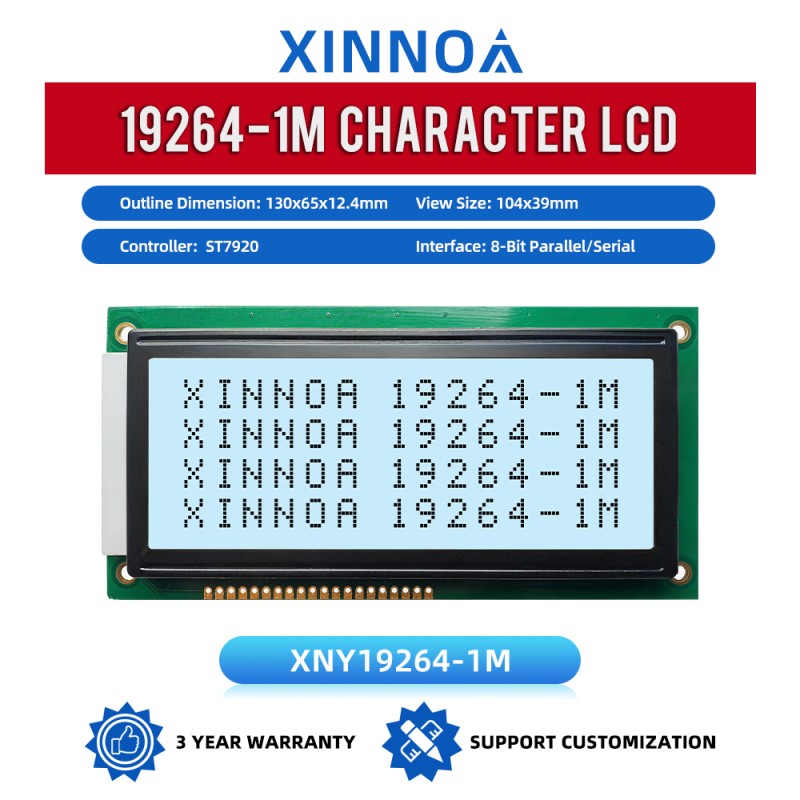

XINNOA XNY19264-1M DOT MATRIX LCD Module

The XINNOA XNY19264-1M DOT MATRIX LCD Module is a reliable and versatile display solution suitable for a wide range of applications. This large-format module offers clear and concise information display, making it ideal for integration into various electronic devices and systems that require expanded screen area.

Key Benefits:

  • Clear and concise dot-matrix display
  • Large-format yet easy to integrate
  • Durable and reliable performance
  • Cost-effective display solution
  • Customizable to meet specific requirements

Target Industries and Applications: This standard dot-matrix LCD module features a 192×64 resolution, ensuring clear and sharp character and graphic display effects. Equipped with ST7920 controller and 8-Bit Parallel/Serial dual interface options, it supports stable signal transmission and flexible system integration. With an outline dimension of 130×65×12.4mm and wide operating temperature range, it delivers long-lasting and stable performance in diverse environments, suitable for industrial control, smart meters, medical devices, industrial instrumentation, and various large-format display applications.

Product Attributes

FOB Price 65.00
FOB Unit piece
Weight 0.1025 kg
Dimensions 130x65x12.4mm
Color Gray light

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 19264
Resolution 192*64
is_customized Yes
Model Number 19264-1M
Type COB
Origin Mainland China
Outline Dimension 130x65x12.4mm
View Size 104x39mm
Controller ST7920

19264-1M Gray Film ST7920 Industrial Control Instrument With Built-in Chinese Character Library Serial And Parallel Port Module

19264-1M Gray Film ST7920 Industrial Control Instrument With Built-in Chinese Character Library Serial And Parallel Port Module

19264-1M Gray Film ST7920 Industrial Control Instrument With Built-in Chinese Character Library Serial And Parallel Port Module

19264-1M Gray Film ST7920 Industrial Control Instrument With Built-in Chinese Character Library Serial And Parallel Port Module

19264-1M Gray Film ST7920 Industrial Control Instrument With Built-in Chinese Character Library Serial And Parallel Port Module

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
