Grey Film 240128Y 144X104X12MM UCI6963C LCM Monochrome LCD Module Original T6963C

Specifications

Model Number :

Owen 240128Y

Origin :

Mainland China

Color :

Red light-black font, Gray light-black font, Green light-black font, Gray light-blue font, Orange light-black font, Ice blue light-black font

Resolution :

240*128

Hign-concerned Chemical :

None

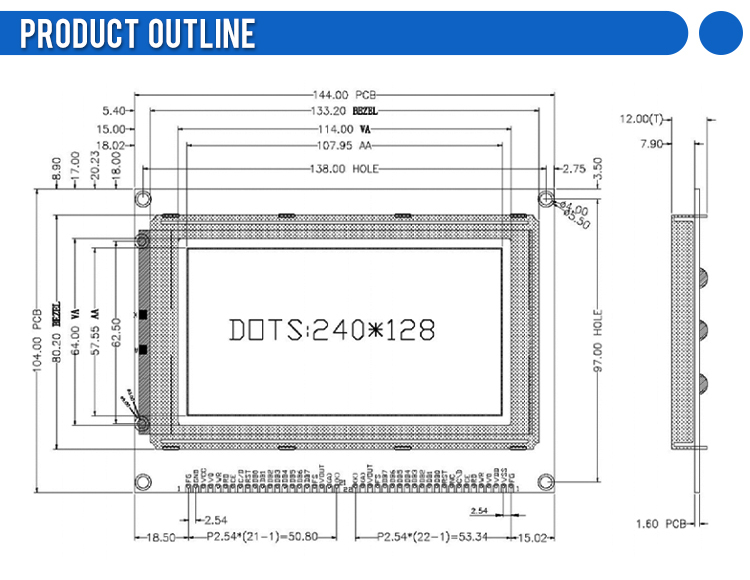

Outline Dimension :

144x104x12mm

Display Mode :

240128

Controller :

UCI6963C

Type :

COB

View Size :

114x64mm

is_customized :

Yes

Description

Owen 240128Y

High-quality display module designed for various industrial and commercial applications. The Owen 240128Y offers excellent visibility and reliability.

Key Benefits:

Clear and crisp display
Durable construction for long-lasting performance
Customizable options available
Wide operating temperature range
Easy integration into existing systems

Target Industries: Industrial automation, medical devices, consumer electronics, and more.

Applications: Control panels, handheld devices, instrumentation, and user interfaces.

Product Attributes

FOB Price: 159.0

FOB Unit: piece

Product MOQ: Not Specified

Weight: 0.3908 kg

Dimensions: 16 × 12 × 3 cm

Color: Red light-black font, Gray light-black font, Green light-black font, Gray light-blue font, Orange light-black font, Ice blue light-black font

Technical Specifications

Attribute	Value
Hign-concerned Chemical	None
Display Mode	240128
Resolution	240*128
Is Customized	Yes
Model Number	Owen 240128Y
Type	COB
Origin	Mainland China
Outline Dimension	144x104x12mm
View Size	114x64mm
Controller	UCI6963C

Grey Film 240128Y 144X104X12MM UCI6963C LCM Monochrome LCD Module Original T6963C

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
