Specifications
Origin :
Mainland China
is_customized :
Yes
Model Number :
Owen COG12864J-CFDTSW
Type :
COB

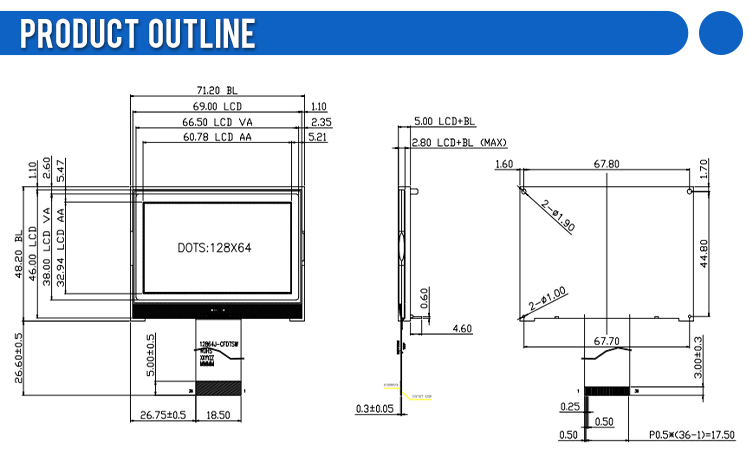

Outline Dimension :
71.2×48.2x5mm
View Size :
66.5x38mm
Color :
Blue Film
Controller :
ST7565R
Hign-concerned Chemical :
None
Display Mode :
12864
Resolution :
128*64
Description

Owen COG12864J-CFDTSW

High-quality LCD display module designed for various industrial and commercial applications. The Owen COG12864J-CFDTSW offers a clear and reliable display solution with excellent visibility and performance.

Key Benefits:

  • High Resolution: 128x64 pixels for sharp and detailed visuals.
  • Compact Design: Outline Dimension of 71.2×48.2x5mm for easy integration.
  • Wide Viewing Area: 66.5x38mm View Size for optimal readability.
  • Reliable Controller: Utilizes ST7565R controller for stable performance.
  • Customizable: Yes, customized options available to meet specific requirements.

Target Industries & Applications:

Ideal for use in industrial control panels, medical devices, instrumentation, and other applications requiring a reliable and clear display.

Product Attributes

FOB Price: 25.0
FOB Unit: piece
Product MOQ: Not Mentioned
Packaging & Delivery: Not Mentioned

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 12864
Resolution 128*64
Is Customized Yes
Model Number Owen COG12864J-CFDTSW
Type COB
Origin Mainland China
Outline Dimension 71.2×48.2x5mm
View Size 66.5x38mm
Controller ST7565R

Blue Film COG12864J-CFDTSW Screen Display Graphic Cog Fog LCD With LED Backlight

Blue Film COG12864J-CFDTSW Screen Display Graphic Cog Fog LCD With LED Backlight

Blue Film COG12864J-CFDTSW Screen Display Graphic Cog Fog LCD With LED Backlight

Blue Film COG12864J-CFDTSW Screen Display Graphic Cog Fog LCD With LED Backlight

Blue Film COG12864J-CFDTSW Screen Display Graphic Cog Fog LCD With LED Backlight

Blue Film COG12864J-CFDTSW Screen Display Graphic Cog Fog LCD With LED Backlight

Blue Film COG12864J-CFDTSW Screen Display Graphic Cog Fog LCD With LED Backlight

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
