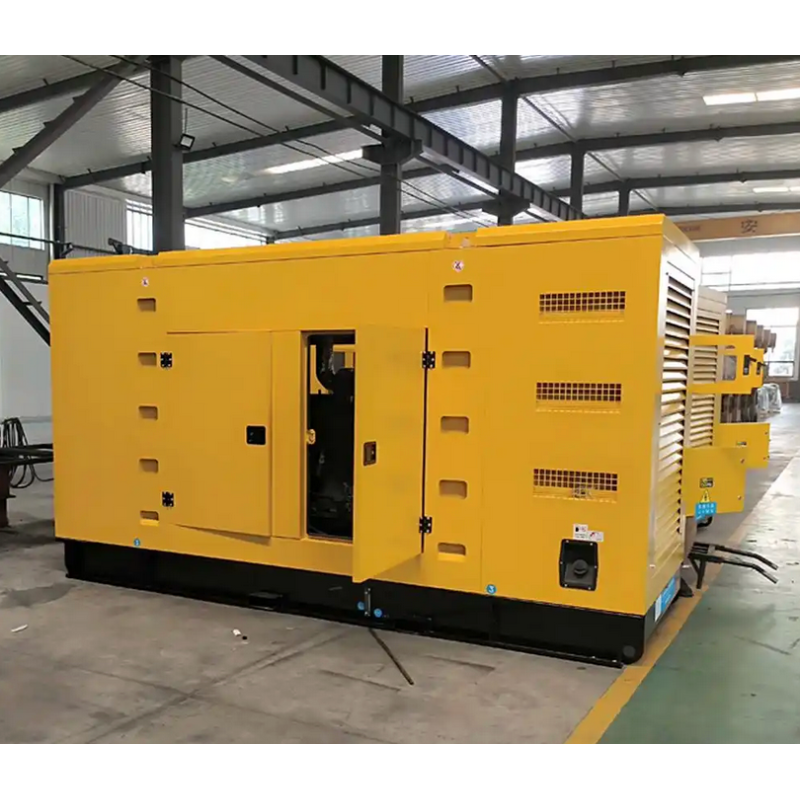

550KW Industrial Generator Set For Construction Site
550KW Industrial Generator Set For Construction Site
Specifications
Fuel Consumption :
2.5 liters/hour
Net Weight :
150kg
Voltage Regulation :
Automatic Voltage Regulation
Size :
940 x 540 x 740
Engine Speed :
3000RPM
Weight :
350 kg
Description
Silent/Open Diesel Generator Set With /Perkins/Volvo Engine 4BT3.9-G1 30kw 37.5kva With ATS
Diesel 4BT3.9-G1 Genset Specification
Manufacturer
ModelMB-C30
Prime Powder30KW/37.5KVA
Standby Powder33KW/41.25KVA
Power FactorCOSΦ=0.8(lagging)
Max. Output current54 A
Genset Weight940KG
Length x Width x Height (Engine) (mm)1800x760x1400
Voltage400/230V
Frequency50HZ
Engine Specification
Manufacturer
Model4BT3.9-G1
Rated speed1500rpm
Prime Powder36KW/45KVA
Standby Powder40KW/50KVA
Fuel Consumption<=210g/KW.H
Lube oil capacity9 L
Bore (mm) x Stroke (mm)102*120
Compression ratio17.5:1
Displacement (litre)3.92L
Coolant capacity, L/
Configuration4 in line ,four-stroke, Turbocharged, Charge Air Cooled
CoolingLiquid Cooled
Governor typeMechanical
Starting voltage24 Volts DC
Filtration systemAir Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer
ModelMBC22A
Voltage RegulatorAVR
Voltage adjust range±1%
Rated Voltage/Frequency/Factor400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency5%
No-load Voltage Adjust Range>=95%-105%
Insulation ClassH
IP Protection22
Excitation TypeBlushless

A diesel generator silent enclosure (also commonly referred to as a soundproof canopy or acoustic enclosure) is a specialized structure engineered to minimize the operational noise generated by diesel generator sets.

I. Structural Features

  • Outer Shell: Generally fabricated from high-strength sheet metal (such as galvanized steel or aluminum), providing excellent mechanical strength, corrosion resistance, and durability to protect the internal generator set.

  • Sound-Absorbing Materials: Lined with premium materials like fiberglass or rock wool to absorb acoustic energy and eliminate sound wave reflections inside the canopy.

  • Sound-Insulation Barriers: Integrated with heavy-duty acoustic felts or dampening sheets to block and contain noise transmission effectively.
