API Compliant Workover Rig Components For Reliable Well Servicing
API Compliant Workover Rig Components For Reliable Well Servicing
Specifications
Model Number :

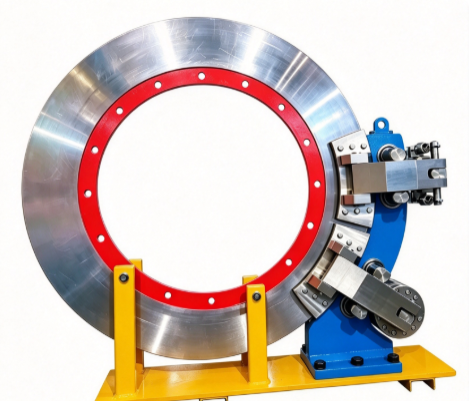

disc brake-350
Working calipers (set) :
2
MOQ :
1 pcs
Working brake torque (kN·m) :
61
Delivery Time :
15-30 working days
Payment Terms :
L/C,T/T
Safety braking torque (kN·m) :
28/56
Certification :
API
Safety calipers (set) :
1(2)
Brand Name :
XI'AN RIG
Workover rig model :
XJ350
Place of Origin :
China
Maximum Hook Load (kN) :
900
Description

Overall Working Characteristics and Operational Attributes of Workover Equipment

The workover rig is a truck-mounted mobile special-purpose service rig. Compared with drilling rigs, it features greater mobility, faster rig relocation, quicker installation, suitability for scattered well sites, more complex operating procedures, frequent start-stop, and variable operating conditions.

1. It is mainly aimed at repair operations on old wells, production wells, and problem wells, without requiring a long-term fixed well location;

2. It involves many operating procedures and frequent process switching: running/pulling tubing, well flushing, sand washing, well killing, fishing, milling, plugging, and unplugging operations alternate in sequence;

3. The equipment withstands severe impact loads, many alternating loads, low-speed heavy-load operation, and frequent braking;

4. The delivered media are complex: sewage, sand-bearing formation water, crude oil, heavy oil, chemical agents, kill fluid, and lost-circulation plugging fluid — with strong corrosiveness and sand-induced abrasiveness;

5. It operates in the open field around the clock in all weather conditions, requiring extremely high resistance to corrosion, dust, water, and both low and high temperatures.

API Compliant Workover Rig Components For Reliable Well Servicing

Workover rig model Working calipers (set) Safety calipers (set) Maximum Hook Load (kN) Working brake torque (kN·m) Safety braking torque (kN·m)
XJ250 2 1 675 61 28
XJ350 2 1(2) 900 61 28/56
