API Standard Drilling Mud Pump Power End Parts Pinion Shaft For oilwell drilling
API Standard Drilling Mud Pump Power End Parts Pinion Shaft For oilwell drilling
Specifications
Delivery Time :
in stock
Application :
drilling triplex pump for oilwell drilling equipment
Type :
Pinion Shaft
Model Number :
Pinion Shaft
MOQ :
1 pcs
Material :
40CrMnMo Alloy steel
Application 2 :
Mud Pump Power End
Manufacturing Process :
Forging
Payment Terms :
L/C, T/T
Packaging Details :
Woden carton
Structure :
Herringbone tooth profile
Certification :
API
Brand Name :
XI'AN RIG
Place of Origin :
China
Description

API Standard Drilling Mud Pump Power End Parts Pinion Shaft For oilwell drilling

Pinion shaft is a very important part of power end of mud pump. It works together with the big gear ring transfer the power to the mud pumps from the power unit. In order to ensure its quality, we use 40CrMnMo alloy steel forging material to manufacture it. And due to the high precision CNC grinding machine we use, the accuracy of its gear could be ensure.

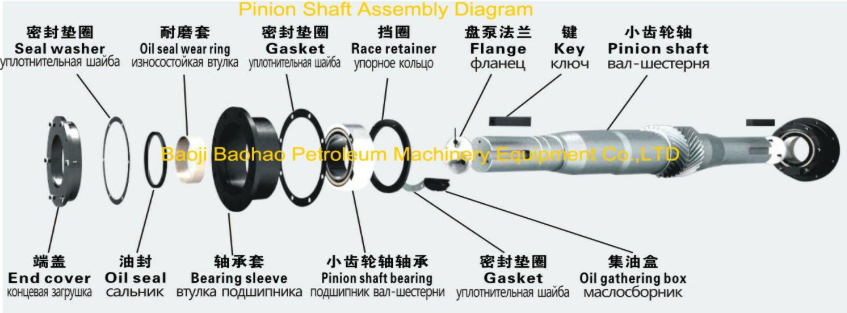

Pinion shaft is an alloy steel forging. There are herringbone gears on its axle with medium hard tooth surface. For convenient maintenance, single row long cylindrical roller bearings without inner ring ribs are used. Due to the shaft extension, either side of the shaft can be mounted with belt pulleys or chain wheels.

API Standard Drilling Mud Pump Power End Parts Pinion Shaft For oilwell drilling

The model we can supply

Brand Model
BOMCO F-500, F-800, F-1000, F-1300, F-1600, FB-1300, FB-1600, D-375, D-700
LANSHI 3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800
QINGZHOU SL3NB-1300A, QZ-1000, QZ-500, QZ-350, QZ-800, SL3NB-1600
HONGHUA 3NB-1600F, HHF800/1000F, HHF1300/1600, HHF1600HL, HHF2200HL
DRILLMEC 7TS450, 7TS600, 9T800, 9T1000, 10T1300, 12T1600
EMSCO F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, FC-1600, FC-2200
IDECO T-500, T-800, T-1000, T-1300, T-1600
GARNDER DENVER PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
NATIONAL 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-200, 14-P-220, K-700A, K-500, K-500A
OILWELL A-350PT, A-560PT, A-600PT, A-850PT, A-1100P, A-1400PT, A-1700PT
Wirth TPK1000, TPK1600, TPK2000/2200
Weatherford MP-5, MP-8, MP-10, MP-13, MP-16
