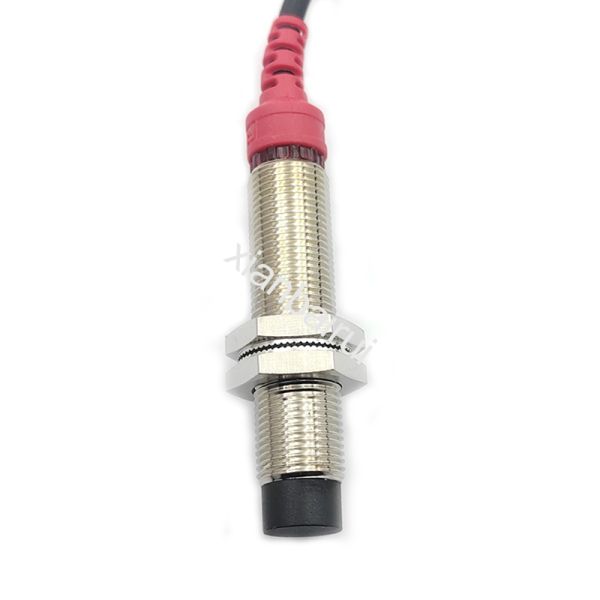

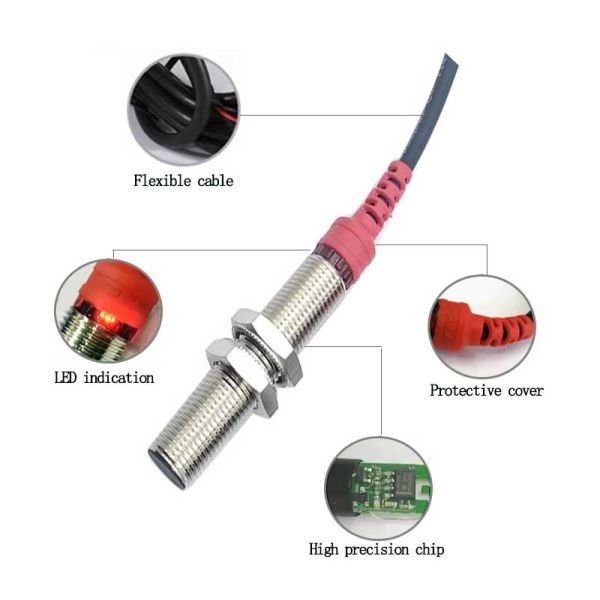

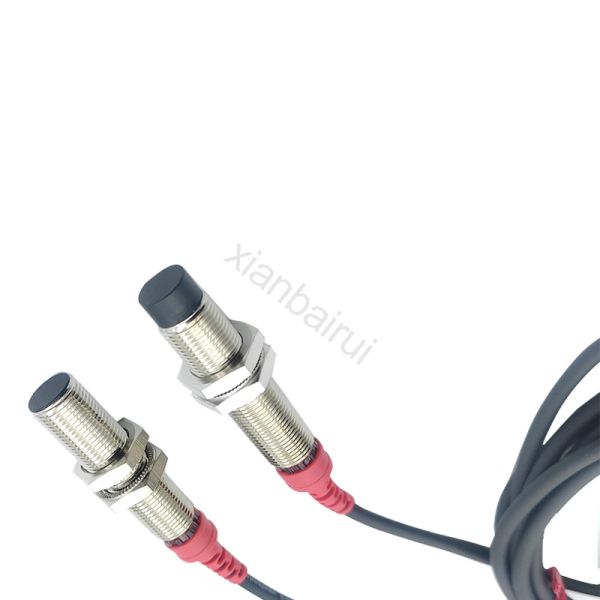

Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Specifications
Model Number :
LN4-50GM12
Place of Origin :
Shaanxi, China
Brand Name :
Bairui Electric
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200000pcs
Series :
M12
Features :
Threaded
Mounting Type :
Screw thread
Description :
Object detection, Proximity Sensor LN4-50GM12
Manufacturing Date Code :
2025
Type :
Inductive Proximity Sensor
Usage :
Object detection
Theory :
Inductive type
Output :
NPN.NO/NPN.NCPNPNO/PNPNC
Ingress Protection :
IP65
Shielding :
Unshielded
Termination Style :
smd (smt) tab
Sensing Distance :
2-3mm
indicator :
no indicator
Response Frequency :
1000Hz
Material - Body :
Stainless steel
Description
Inductive PNP Output Proximity Switch Sensor with One Year Warranty
Products Description
Product name
Inductive proximity sensor
specification
M12
Model number
LN4-50GM12
place of origin.
Xi 'an
brand
Bairui Electric
Feature
Object detection
Detection distance
4mm
Operating voltage
Within 12~24VDC+10% action (P-P)
Current consumption
< 10mA
Load current
100mA
Leakage circuit
< 0.01mA No-load
Residual voltage
< 1.5VDC(load current 100mA, wire 2 meters)
repeatability
< 2% detection distance
Response frequency
1KHZ
Reaction time
0.5 ms
Power supply reverse protection
There are
Output short-circuit protection
There are
Output mode
NPN.NO/NPN.NC PNPNO/PNP.NC
Ambient temperature
-25 ~ 70°C no frost, freezing (storage temperature -25 ~ 70 no frost, freezing)
Temperature drift
< At 25°C +10% detection distance
Relative humidity
35 ~ 95%RH frost-free (storage humidity 35 ~ 95% frost-free)
Class of protection
IP67
Impulse withstand voltage
1000VAC 50~60HZ 1min(between charging part and housing)
Insulation resistance
> 20M2(between the charging part and the housing)
Connection mode
φ3x2M/2-wires φ3x2M/3-wires
Shell material
PBT+ copper nickel plating +PVC
Net weight
About 35g
Application industry
Whole industry, automation
