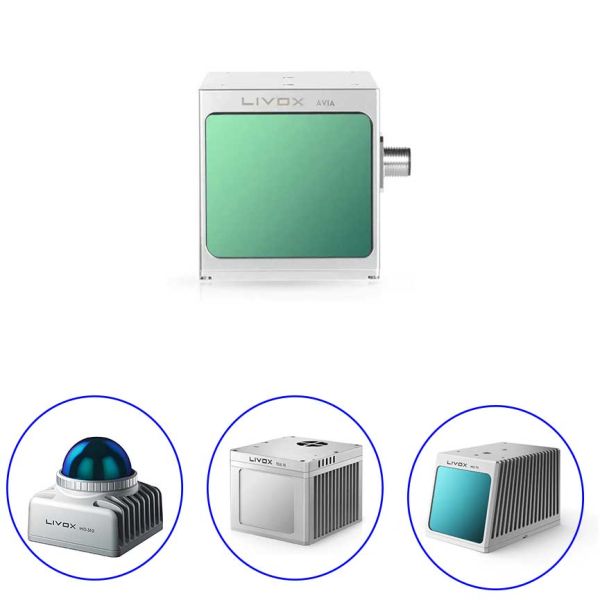

Livox Avia Image & Camera Sensors Laser Detection Rangefinder

Specifications

Place of Origin :

shenzhen

Brand Name :

livox

Model Number :

VAIA

Packaging Type :

Box pack

Application :

Robots, driverless vehicles, unmanned aircraft

Mounting Type :

Thread fixation

Description :

Laser detection rangefinder

Frame rate :

10 HZ

Resolution :

905nm

Voltage - Supply :

DC 9-27v

Sensor Type :

CMOS

Field Angle :

70.4°

Product name :

Radar sensor

Working temperature :

-20...55℃

MOQ :

1 piece

Price :

Negotiable

Description

Key Features Highlight:
Avia adjusts the detection distance according to the intensity of ambient light while ensuring an extremely low noise rate. The range performance in low-light environments (such as cloudy days, indoors, at night, etc.) has been enhanced to 450 meters, enabling surveying and mapping equipment to operate at higher navigation altitudes, improving efficiency without missing details of distant objects

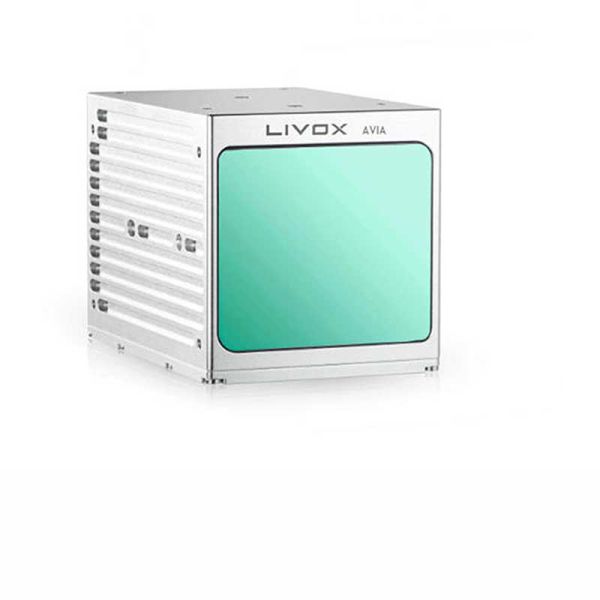

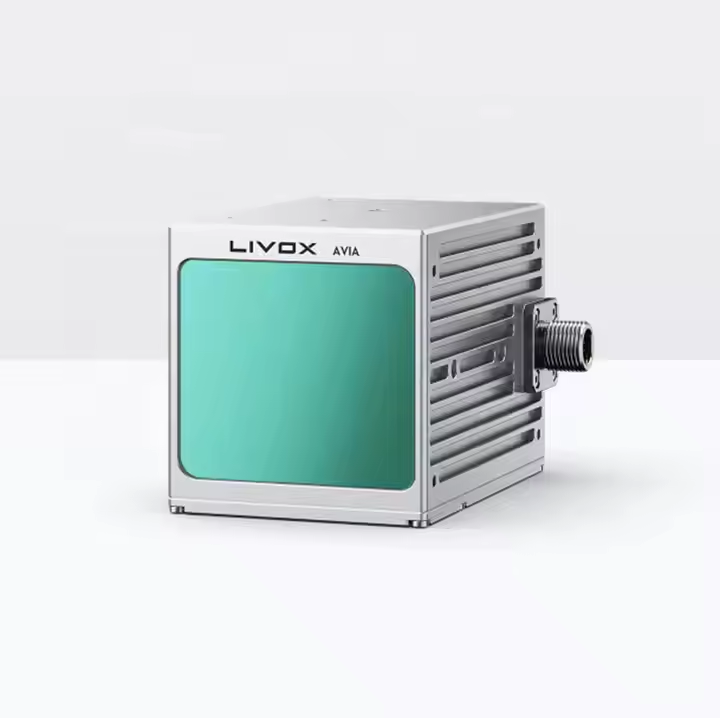

The Avia lidar from Aolan features a lightweight and compact design, significantly enhancing its detection range and efficiency. With a FOV exceeding 70°, it supports three-echo and dual-scan modes and can be widely applied in various fields such as power, forestry, general mapping, and smart cities.

_{VAIA Technical Specifications}
item	value
Mounting Type	TBD
Description	Livox Avia LiDAR sensor
Model Number	Livox Avia
Place of Origin	China
Brand Name	Livox

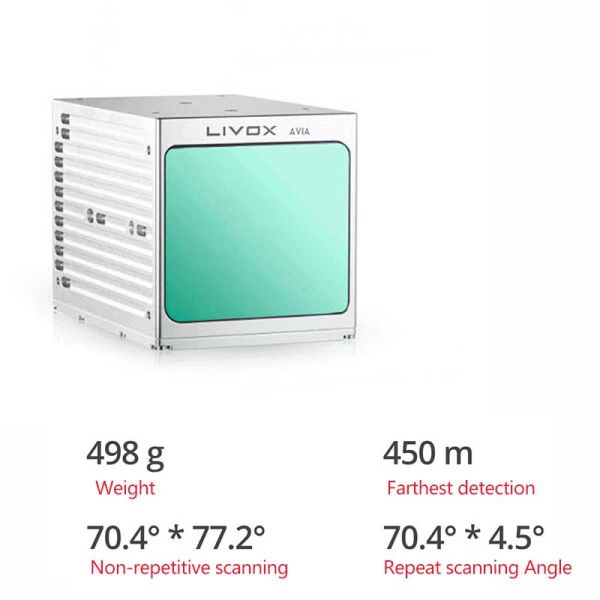

Detecting distance	320m @ 80% reflectivity
FOV	70.4x77.2 degrees
Distance radom error	<2cm @ 20m
Angular radom error	<0.05 degrees
Laser wavelength	905nm
Point rate	240,000-720,000Hz
Protection grade	IP67
Supply voltage	DC 10-15V
Weight	498g
Dimensions	91x61.2x64.8mm

Packing & Delivery

Separate package

1 pcs packing

50pcs can be provided with free packaging specifications and colors according to user requirements.

Carton packing

1pcs package 1pcs package size, 1000*1000*800mm. Weight: 1kg'

Bailui Electric Technology Co., Ltd. was established in January 2013. Is a focus on sensor products research and development, design, production, trade of professional companies. With more than ten years of technology accumulation, follow the business philosophy of technology first and service first, to provide customers with a complete set of mature application solutions. The industries involved include pharmaceutical, aerospace, chemical, electronics and other industries. In foreign trade, I have rich experience in dealing with all aspects of trade. The company promises: "reasonable price, short production time, satisfactory after-sales service", hope to cooperate with more customers, common development, mutual benefit. Potential buyers are welcome to contact us.

1. What's your idea about your offer? We have factory,we offer high quality products with proper price.

2.What's the MOQ? The MOQis one pc,but our price base on the qty,if you need more,the price will be cheap.

3.What type of payment do you have available? Weaccept TT and L/C,as sample order,the Western union,Moneygram and Aliexpress is available.

4.What's the delivery time? 7-10days after we get the payment.

5.How to make an order ? Tell us the size and qty you need or tell us where to use,our technician will
suggest the size you need. Then pay to our bank account,we will arrange the production and send you ASAP.
