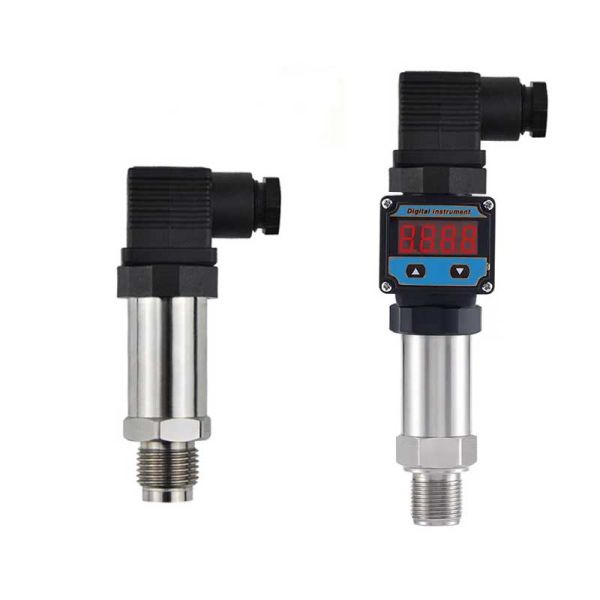

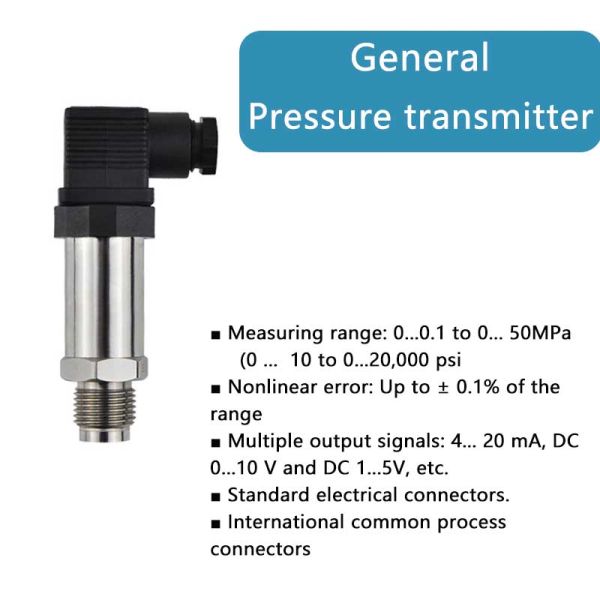

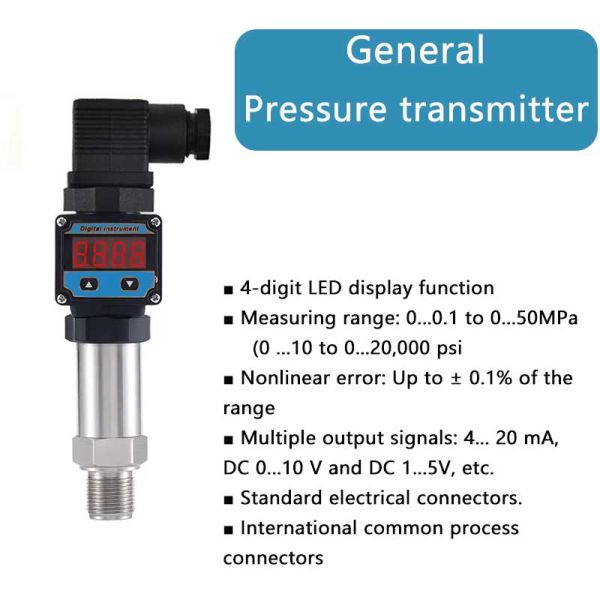

Product name | Small pressure transmitter |

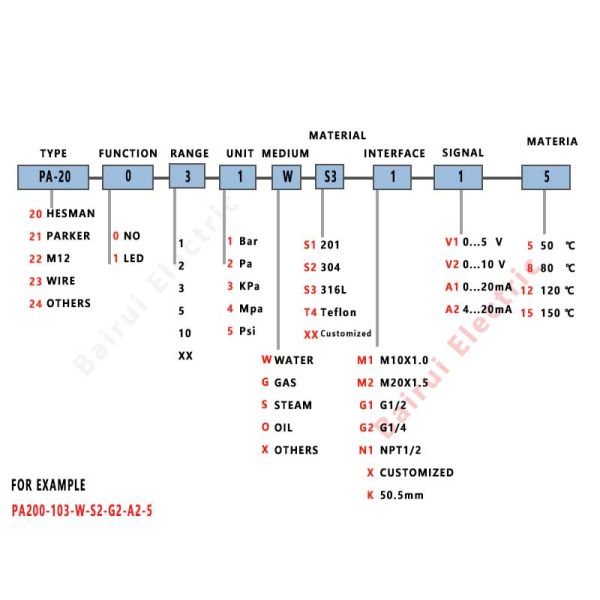

Model number | PA-20 |
place of origin. | Xi 'an |
brand | Xi 'an Bairui |
Feature | Pressure measurement |
custom | Supports oem and ODM customization |
Pressure range | ~-0bar-200bar |
precision | ±0.5%, 0.2%, 0.1% |
Pressure type | Gauge pressure, absolute pressure |
Power dissipation | 2w |
Ambient temperature | ~ 25 ℃ to 70 ℃ |
exportation | 4-20mA HART |
Connection thread (custom) | M20*1.5, M14*1, 1/2NPT G1/2 |
Overload capacity | 200% 1 minute |
Shell material | 304, 316L |
Package size | 15*15*20mm |
Packaging material | Carton packaging |
Net weight | Approx. 150g |
Application industry | Gas, liquid |
