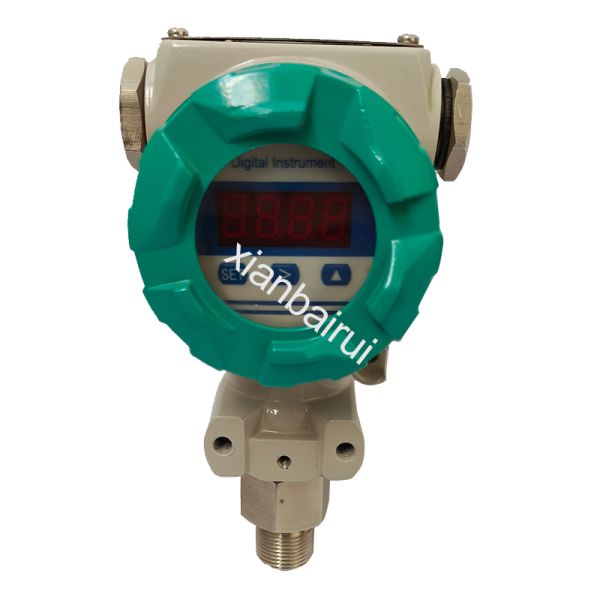

High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
Specifications
Brand Name :
Xi 'an Bairui
Place of Origin :
China
Model Number :
PAB-8
MOQ :
2 pieces
Price :
Negotiable
Payment Terms :
T/T
accuracy :
±0.5%,0.2%,0.1%
customized support :
OEM, ODM
material :
Quartz sperm
warranty :
1 years
Description
High Accuracy 4-20mA Industrial Pressure Transmitter With HART
Product Overview

The PAB-8 Digital Pressure Gauge is a high-precision industrial pressure transmitter featuring HART communication protocol, designed for reliable pressure measurement across various industrial applications.

Specification Details
Model Number PAB-8
Place of Origin Xi'an
Brand Xi'an Bairui
Feature Pressure Measurement
Customization Supports OEM and ODM Customization
Pressure Range -0.1 to 400 bar
Precision ±0.5%, 0.2%, 0.1%
Sensor Quartz Crystal
Alarm Record Available
Power Consumption 5.5W
Display Liquid Crystal Display
Display Range -1999 to 9999
Ambient Temperature -20℃ to 65℃
Output 4-20mA HART
Connection Thread M20*1.5, M14*1, 1/2NPT (Customizable)
Overload Capacity 200% for 1 minute
Shell Material Stainless Steel + Aluminum Shell
Package Size 15 * 15 * 25 cm
Packaging Material Carton Packaging
Net Weight Approximately 300g
Application Industry Whole Industry, Automation
Product Gallery
High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor High Accuracy ±0.5% 4-20mA HART Pressure Transmitter with Quartz Crystal Sensor
Our Advantages

High Precision

Advanced quartz crystal sensor technology ensures accurate pressure measurements with precision up to ±0.1%.

Customization Support

Full OEM and ODM services available to meet specific customer requirements and applications.

Robust Construction

Stainless steel and aluminum housing provides durability in harsh industrial environments.
