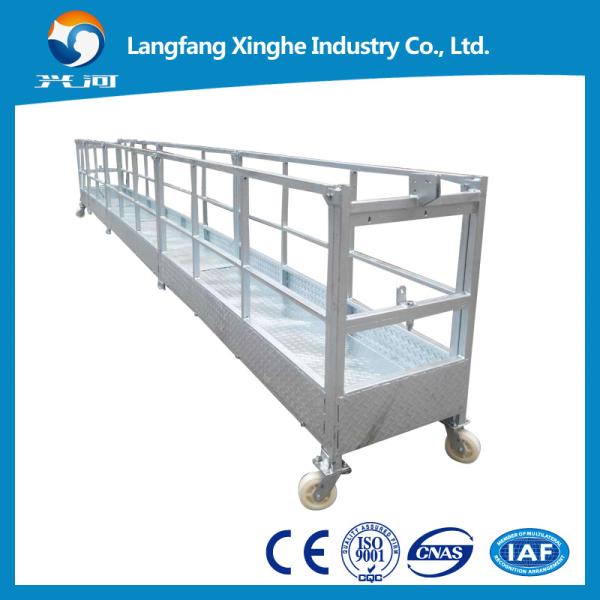

hot galvanized / aluminum Motion Suspended Gondola Platforms, Swing Stage
hot galvanized / aluminum Motion Suspended Gondola Platforms, Swing Stage
Specifications
Place of Origin :
China
Brand Name :
Xinghe
Certification :
ISO CE
Model Number :
ZLP800
Size :
3*2500mm *690mm *1180mm
Rated Loading :
800 kg
Working platform finished :
hot galvanizing, aluminum alloy
Max lifting height :
100m
Actuation :
electric motor
Wire rope diameter :
8.6mm
Hoist Voltage :
380v,415v,220v 50/60 Hz
Hoist motor :
2*2.0kw
Warranty :
the whole suspended platform for one year
MOQ :
1 set
Price :
FOB Tianjin 1700~2400 USD/SET
Packaging Details :
Standard exporting package by plywood case,then steel pallet for container.
Delivery Time :
7~10 days after receiving the deposit
Payment Terms :
t/t l/c western union
Supply Ability :
400sets/month
Description

ZLP Series Suspended platform / Cradle / Gondola mainly include two types: zlp630 & zlp800

Suspended platform is mainly used in exterior wall construction and maintenance of high-rise and multi-story buildings. For example: exterior wall plastering, brushing coating, paint, cleaning, sticking marble, curtain wall construction, repairing works of bridges and dams. It is also applied for installation of elevators, hull outside repairs in ship construction. This is an ideal machine for construction companies, curtain wall companies and cleaning companies.

ZLP Suspended platform / Cradle / Gondola

Specification :

1.Type: zlp 630 & zlp800 & zlp 1000

2.Surface finished: Hot galvanized & aluminum alloy

3.Lifting height: 100m , 300m maximum

4.HS Code: 84289090

5.Certificate: ISO9001 & CE

6.Warranty : The whole machinery is for one years, some main components are 6 years

7.We can also customize for you

Product Description

Item zlp630 zlp800
Rated Loading 630kg 800kg
Lifting Speed

~9.5m/min

~8.5m/min

Platform size(L*W*H)

(3*2000mm)*690mm*1180mm

 (3*2500mm)*690mm*1180mm

Suspension Mechanism

Rated exerted length of front beam

1.1m~1.5m

Terrain clearance of front beam

1.45m~1.75m
Type

LTD63

LTD8
Motor type

Customization

Customization
Power

2*1.5Kw

2*2.0Kw

Voltage

 380v/415v/220v(50hz) 380v/415v/220v(60hz)

Speed

1400n/min

1400n/min

Braking torque

15N.M

15N.M

Safety Lock
type

LS30

Angle of tilted locking rope

3°~8°

Allowable impact force

30KN
Quality

Suspension platform

300kg

370kg

Hoist

52kg*2

56kg*2

Safety lock

5.5kg*2

5.5kg*2

Suspension mechanism

320kg(not including counter weight)

320kg(not including counter weight)

Electricity box

18kg
