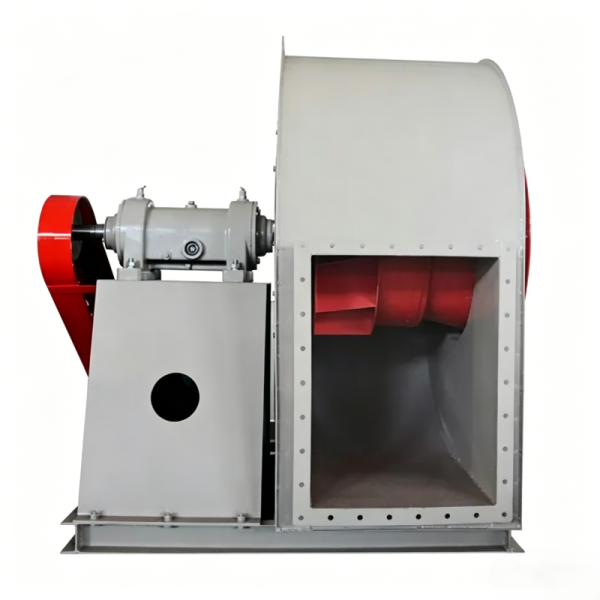

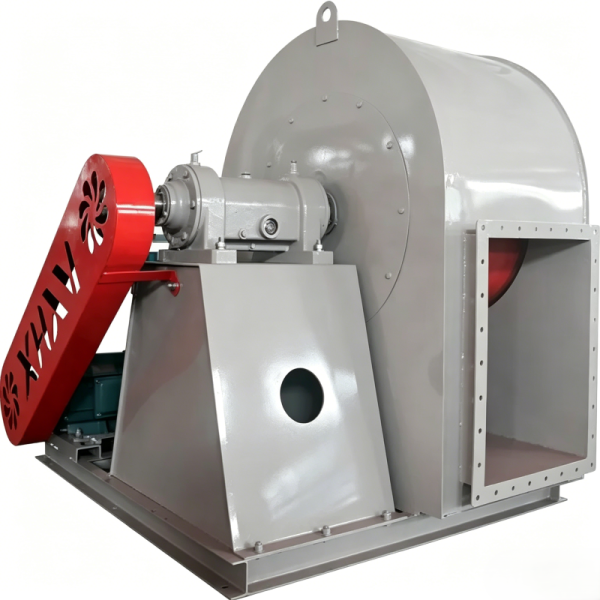

The 5-90 series centrifugal fan is a high-performance industrial ventilation equipment distinguished by its high efficiency, moderate pressure, extremely large flow rate, and low noise level. It is specifically designed for factories and large buildings that require substantial air volume for ventilation and air exchange.
This fan can be used for both air supply and exhaust applications. It is engineered to convey air and other non-flammable, non-explosive, non-tangling, non-toxic, and non-corrosive gases to steel materials. The conveyed gas must not contain viscous substances, with dust and hard particle content ≤150 mg/m³, and a maximum gas temperature of 80℃. All models feature a C-type belt drive configuration for flexible speed adjustment and reliable operation.

• High-Efficiency Backward-Curved Impeller: Equipped with 12 backward-curved arc-shaped thin-plate blades welded between a curved front disc and flat rear disc. Optimized blade profile ensures excellent aerodynamic performance and high operating efficiency. Precision manufacturing guarantees smooth operation and minimal vibration.
• Reliable Transmission Assembly: Main shaft made of high-quality steel for long service life and high load capacity. Integral bearing housing structure for enhanced stability and easy maintenance. C-type belt drive system allows flexible speed adjustment to meet different airflow requirements.
• Optimized Curved Air Inlet: Integral structure with a curved cross-section parallel to the axial direction. Minimizes airflow resistance and ensures smooth air entry into the impeller. Firmly fixed to the fan side with bolts for a secure and airtight connection.
• Low Noise Operation: Advanced aerodynamic design reduces aerodynamic noise significantly. Balanced rotating components minimize mechanical noise. Ideal for noise-sensitive environments requiring large air volumes.
• Wide Performance Range: Covers a broad range of flow rates and pressures to meet diverse application needs. Multiple speed options available for precise performance matching.

• General ventilation and air exchange in large industrial factories and workshops
• Ventilation systems for warehouses, logistics centers and storage facilities
• Air circulation in large commercial buildings, shopping malls and supermarkets
• Ventilation for gymnasiums, exhibition halls and other public facilities
• Underground parking garage ventilation and smoke exhaust systems
• Air supply and exhaust for production lines requiring large air volumes
• General ventilation for hospitals, schools and office buildings

• 1* complete centrifugal fan unit
• 1* matching three-phase asynchronous motor
• 1* set of motor pulleys and V-belts
• 1* set of motor slide rails
• 1* set of anchor bolts
• Installation and operation manual

When placing an order, please clearly specify the following information:

• Fan model number (e.g., No.5C, No.8C)
• Required spindle speed (r/min)
• Required air flow rate (m³/h) and total pressure (Pa)
• Motor model, rated power (kW) and rated speed (r/min)
• Any special requirements for materials, coatings or accessories
