BS 4504 Carbon Steel Blind Flanges For Pn2.5/6/10/16/25/40
BS 4504 Carbon Steel Blind Flanges For Pn2.5/6/10/16/25/40
Specifications
Brand Name :
XF
Model Number :
XinFeng Flange
Place of Origin :
Hebei . CHINA
Certification :
ISO9001.PED
MOQ :
1Ton
Price :
negotiable
Packaging Details :
PLYWOODEN CASES / PALLET
Delivery Time :
15-45 DAYS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000-5000 TONS/MONTH
Process :
Forged
Material :
Carbon Steel, S235JR, RST37-2, A105, Tainless Steel, ASTM A182, F304/ 304L, F316/ 316L, 316Ti, 321
Connection Type :
Welding Neck, Slip On, Blind, Socket Welding, Threaded
Size :
DN15-DN2000, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN2000
Flange Type :
WN,SO,PL,BL,SW,LF/SE,TH
Package :
Wooden Cases, Pallets, Etc.
Pressure :
PN6, PN10, PN16, PN25, PN40, PN64, PN100,PN160
Certificate :
ISO, CE, API, BV, Etc.
Description

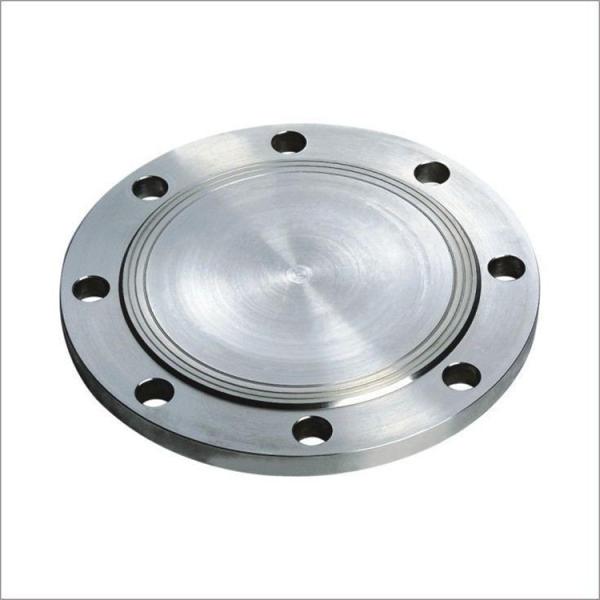

BS 4504 Carbon Steel Blind Flange Flanges: Precision Components for Pressure Applications

1. Product Description: BS 4504 Carbon Steel Blind Flange Flanges are critical components used in various pressure systems and pipeline connections. These flanges are manufactured from carbon steel, offering a balance of strength and ductility. Designed to meet the British Standard 4504, they are available in different pressure ratings, such as PN2.5, PN6, PN10, PN16, PN25, and PN40, to suit a variety of industrial applications.

2. Product Parameters:

Parameter Description
Standard BS 4504
Material Carbon Steel
Type Blind Flange (also known as Blank Flange or Slip-on Flange)
Pressure Ratings PN2.5, PN6, PN10, PN16, PN25, PN40
Sizes Customizable based on nominal pipe size (NPS)
Face Types Raised face, flat face, or as specified by client
Bolt Holes As per BS 4504 specifications
Surface Treatment As-rolled, galvanized, or painted as required

3. Mechanical Properties:

Property Typical Requirements
Tensile Strength Varies with steel grade, typically above 400 MPa
Yield Strength Typically above 240 MPa
Elongation Typically ≥20% for most carbon steel grades

4. Chemical Composition:

Element Typical Range (%)
Carbon 0.15 - 0.30
Manganese 0.50 - 1.60
Phosphorus ≤ 0.045
Sulfur ≤ 0.045
Silicon ≤ 0.50

5. Product Uses:

  • Pressure Vessels: Used to close off the ends of pressure vessels.
  • Piping Systems: Ideal for creating a closed or "blind" end in a pipeline.
  • Industrial Plants: Employed in various industrial plants for maintenance and testing purposes.
  • Machinery and Equipment: Utilized in machinery that requires flanged connections.
