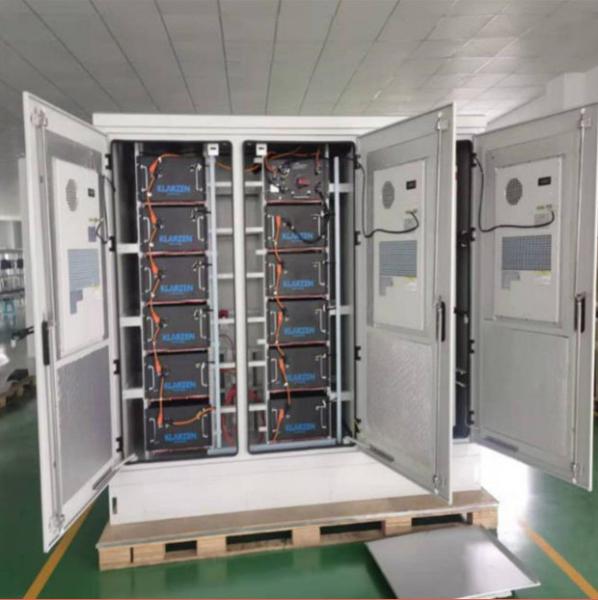

Battery Cabinet Customization IP55 IP65 IP66 IP67 Rack Cabinets Backup Energy Storage Telecommunication Cabinet Outdoor

FEATURES

Specification description

1.Internal Dimension(H*W*D) :Standard 40U *800*800mm or any customized size
External Dimension(H*W*D) : Standard 2100*900*900mm or any customized size
Width awailable:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth awailable:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any customized size

2.Internal capacity: 18U,22U ,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)

3.Door :With one front door, with special lock for outdoor cabinet (support padlock)
4.Thickness: 19’’rails: 2.0mm, outer panel adopt 2.0mm galvanized sheet, the top, the bottom, the side and
the door panel with the air conditioner wrapped with 30mm PIR thermal insulation material.
5.Cooling method: with air conditioner/Fans
6.Surface treatment: Painting, plasma electrostatic painting, hot galvanized, powder coating, polishing, brushing.
7.Mounting method:Floor mounted
8.Cabinet Accessories:
1* Temperature and humidity sensor,
1* Smoke sensor ,
2* Door limit sensor ,
1*DC 48V 12W LED light,
1* Document holder,
1* UK type 220V outlet,
1* Grounding bar,
2* L-rail, 8* PG21+ 8* PG29,
1* 16 pin terminal block (UK2.5N)
9.IP55, color:RAL7035/Pantone428C
