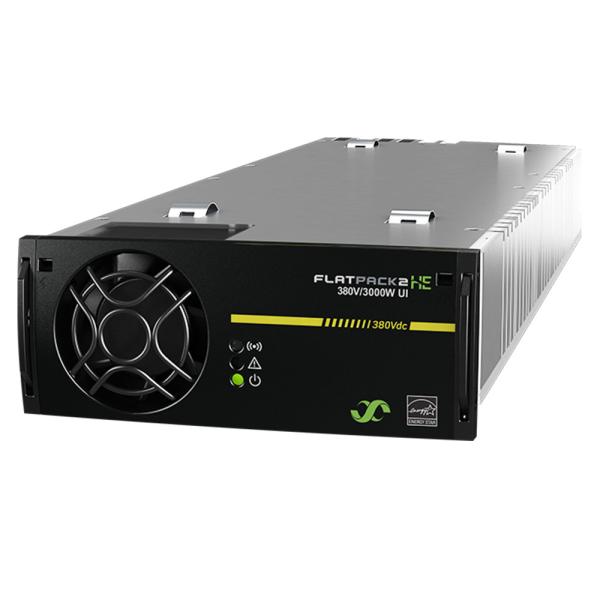

In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)

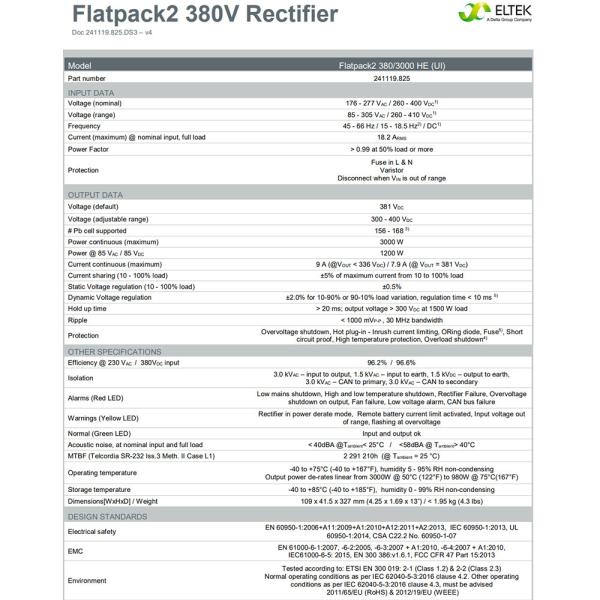

Specifications
Type :
Rectifier Module
Model Number :
Flatpack2 380V/3000W HE UI
Place of Origin :
Guangdong, China
Brand Name :
ELTEK
Model :
Flatpack2 380V/3000W HE UI
Part No. :
241119.825
Dimensions WxHxD (mm) :
109 x 41.5 x 327 mm
Weight :
4.3lbs
Operation temperature :
-40 - 167 °F
Efficiency :
96.2%
Output Current (maximum) :
9A DC
Input Voltage :
85 - 305VAC
DC Output Maxi Power :
3000W
DC Output Voltage (adjustable range) :
300 - 400VDC
Packaging Details :
To ensure that our products are not damaged, we first put the product in a plastic bag, then wrap it in a foam and put it in the carton.
Port :
shenzhen
Supply Ability :
1000 Set/Sets per Month
Price :
$699.00/pieces 1-9 pieces
Description
Product Description
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
380V Rectifier Flatpack2 380/3000 HE UI
The Flatpack2 380V/3000W HE rectifier has high efficiency, OR-ing protection on output and high output power. Distribute pure
battery backup DC voltage with a minimum of loss. Remove the low reliability DC-AC step in the central backup power system and
maximize its reliability and efficiency.

HE rectifier for 380 Vdc in data centers.

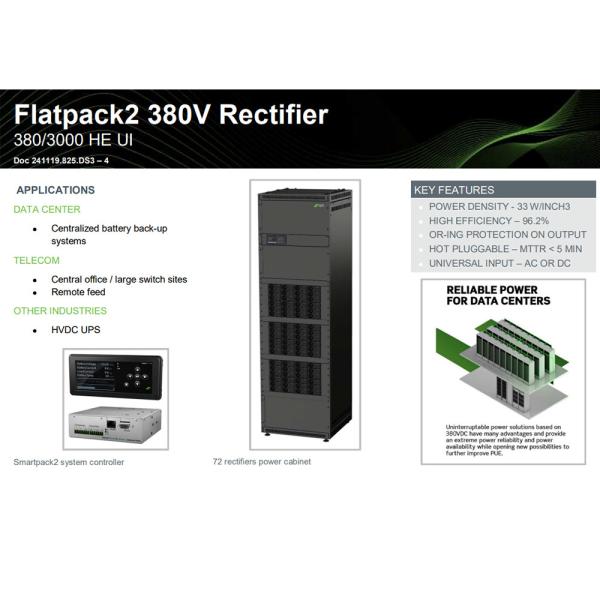

Stack cabinets with up to 72 rectifiers to build large power systems monitored by the Smartpack2 controller.

Key features:
* Power density - 33 W/inches3
* High efficiency – 96.2%
* OR-ing protection on output
* Hot pluggable – MTTR 5 min
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
Application
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
Specification
Type
Rectifier Module
Model Number
Flatpack2 380V/3000W HE UI
Place of Origin
Guangdong, China
Brand Name
ELTEK
Model
Flatpack2 380V/3000W HE UI
Part No.
241119.825
Dimensions WxHxD (mm)
109 x 41.5 x 327 mm
Weight
4.3lbs
Operation temperature
-40 - 167 °F
Efficiency
96.2%
Output Current (maximum)
9A DC
Input Voltage
85 - 305VAC
DC Output Maxi Power
3000W
DC Output Voltage (adjustable range)
300 - 400VDC
Customer Feedback
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
OEM & ODM Service
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
Company Profile
Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.

The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.

We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.

We provide OEM / ODM services according to customers' specific needs.
Our Advantages
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
Packing & Delivery
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
In Stock Valere ELTEK Rectifier Module FP2 Switching Power Supply Flatpack2 380V/3000W HE UI (241119.825)
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2021,sell to Southeast Asia(25.00%),Africa(13.00%),Mid East(10.00%),Southern Europe(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),Domestic Market(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you purchase from us?
Telecommunication cabinet, Embedded Power System, huawei, ZTE OLT, Rectifier module, Monitoring module, Indoor Network Cabinet, UPS, Power Supply System, etc.

4. Why should you buy from us not from other suppliers?
We are pecialized in distributing HUAWEI, EMERSON, ELTEK, DELTA, FLATPACK, ETC with original package and teachical service to provide competive Pricing and fast delivery.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
