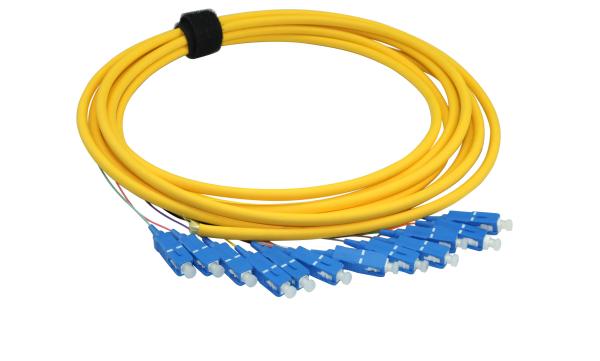

Fiber Optic Pigtail SC/LC/FC/ST Connector SC UPC Singlemode Multimode
Fiber Optic Pigtail SC/LC/FC/ST Connector SC UPC Singlemode Multimode
Fiber Optic Pigtail SC/LC/FC/ST Connector SC UPC Singlemode Multimode
Fiber Optic Pigtail SC/LC/FC/ST Connector SC UPC Singlemode Multimode
Fiber Optic Pigtail SC/LC/FC/ST Connector SC UPC Singlemode Multimode
Fiber Optic Pigtail SC/LC/FC/ST Connector SC UPC Singlemode Multimode
Specifications
Brand Name :
XDK
Model Number :
G652D/G657A1/G657A2
Certification :
ISO, OHSAS18001,RoHS,CRP,UL
Place of Origin :
China/Vietenam
MOQ :
1 pcs
Price :
Negotiation
Supply Ability :
5000000m per month
Packaging Details :
Standard packing 2km per wooden roll drum/ Customized negotiation
Product name :
All Dielectric Fiber Optic Cable
Fiber Type :
Single Mode Or Multi Mode
Fiber Counts :
12 to 144core
Outer jacket :
PE, LSZH( Can Be Required)
Lead Time :
Within One Week
Packing :
Negotiable
Description

Fiber Optic Pigtail SC/LC/FC/ST Connector SC UPC Singlemode Multimode

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/PVC
Connector Type FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Loss(dB) ≤0.25dB ≤0.3dB
TIA/EIA-455-107 (PC/UPC/APC) (PC/UPC)
Return Loss(dB) ≥50dB (PC/UPC) ≥40dB (PC/UPC)
TIA/EIA-455-107 ≥60dB(APC)
Exchange-ability ≤0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature(°C) -10~+70
Storage Temperature(°C) -40~+85
Package 1pieces/bag

Fiber Optic Pigtail SC/LC/FC/ST Connector SC UPC Singlemode Multimode

6.2 Cable reel

Details given below shall be marked with a weather materials on both outer sides of the reel flange :

(1) Cable type and fiber counts

(2) Length of cable in meters

(3) Year of manufacture

Notice: shipping mark is available if requested by customer.

7, Packing Informations

(1) Packing material: Wooden drum

(2) Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer
