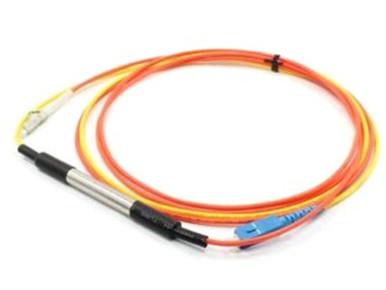

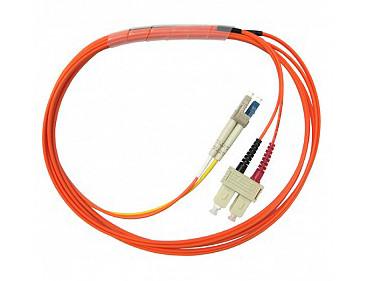

Waterproof PVC / LSZH Sheath Fiber Optic Patch Cord For FTTx
Waterproof PVC / LSZH Sheath Fiber Optic Patch Cord For FTTx
Waterproof PVC / LSZH Sheath Fiber Optic Patch Cord For FTTx
Waterproof PVC / LSZH Sheath Fiber Optic Patch Cord For FTTx
Waterproof PVC / LSZH Sheath Fiber Optic Patch Cord For FTTx
Waterproof PVC / LSZH Sheath Fiber Optic Patch Cord For FTTx
Specifications
Brand Name :
XDK
Model Number :
Mode Conditioning Patchcord
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 million termination/month
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Connector Type :
SC, LC, ST, FC, etc
Fiber Mode :
G652D, G657A, G657B, OM1, OM2, OM3, OM4
Fiber Type :
SM, MM
Cable Diameter :
2.0/3.0mm
Material :
LSZH、OFNP、OFNR、PVC
Color :
according to stranded color (can be required)
Description

PVC / LSZH Mode Conditioning Patch cord with Water Proof used in FTTx, Telecommunication Networks

Description


Mode-conditioning patch cords are designed for longwave(1310nm) Gigabit Ethernet applications over multimode fiber. They consist an offset connection of a SM fiber to a MM fiber. There are two MM fibers on one end and one MM and one SM fiber on the other. This patch cords is required with -LX or longwave Gigabit Ethernet transceivers that use both SM and MM fibers. When launching into a MM fiber, the transceivers can generate multiple signals that cause Differential Mode Delay (DMD) which can severely limit transmission distances. A mode conditioning patch cord removes these multiple signals, eliminating problems at the receiver end.

Features

  1. Other connection mode available according customer requirements
  2. Low insertion loss,High return loss,Stricter than industry standards
  3. Good exchange ability and good durability,Stable optical properties
  4. Standard connector,Various connector option: LC,SC,FC,ST etc.
  5. Compliant with IEC61754,GR-326,TIA/EIA 568 standard
  6. Permanent displacement seal
  7. Screen different value delay effection


Waterproof PVC / LSZH Sheath Fiber Optic Patch Cord For FTTx

Specification

Fiber Type SM(9/125um) MM(50/125um,62.5/125um)

Polish

 UPC APC UPC
Insertion Loss (typical) Light source
direction

Testing

Wavelength

 Data
A→B 850nm, 1300nm ≤0.20dB
B→A 850nm, 1300nm ≤0.20dB
C→D 850nm, 1300nm ≤15.0dB(50/125) ≤18.0dB(62.5/125)
C→D 1310nm, 1550nm ≤2.1dB(50/125) ≤2.6dB(62.5/125)
D→C 850nm, 1300nm ≤0.20dB

Return Loss

 SM/UPC≥50dB,APC≥60dB；MM/UPC≥20dB
3D

Radius of Curvature :10-25mm(PC/UPC) , 5-12mm(APC)
Apex offset : 0-50um

High fiber : ±100 nm

Angle:8±0.2°(APC)

Repeatability

 1000 times typical change value ≤ 0.20dB

Interchangeability

 ≤ 0.20dB
Cable Diameter 2.0/3.0mm
Jacket Material(optional) LSZH,OFNP,OFNR,PVC
Fiber Moder(optional) G652D, G657A, G657B, OM1, OM2, OM3, OM4
Operating Temperature -20 ~ +70 ℃
Storage Temperature -40 ~ +85 ℃

Application

  1. CATV,LANs,WANs
  2. Telecommunication networks
  3. Active device termination
  4. FTTx
  5. Building network access
