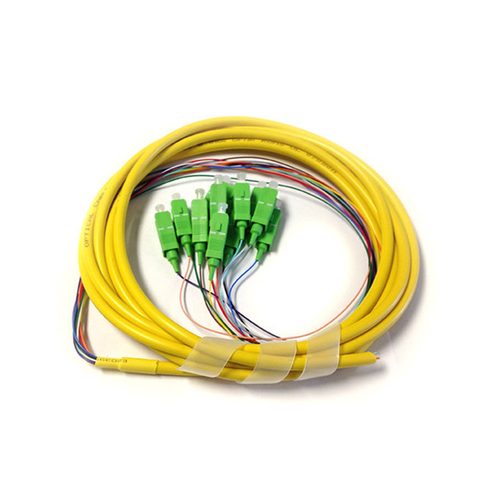

12 Cores Mini Breakout Fiber Optic Pigtails For Sc Connector
12 Cores Mini Breakout Fiber Optic Pigtails For Sc Connector
12 Cores Mini Breakout Fiber Optic Pigtails For Sc Connector
12 Cores Mini Breakout Fiber Optic Pigtails For Sc Connector
Specifications
Brand Name :
XDK
Model Number :
12 cores SC Fiber optic pigtail
Certification :
CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin :
China/ Vietnam
MOQ :
30PCS
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5million termination per month
Delivery Time :
5-8 Working day
Packaging Details :
OEM PE bag, carton box, wooden roll
name :
12 cores SC Fiber optic pigtail
Connector type :
LC, SC/APC, fc/pc, FC SC ST LC, SC / APC
Color :
blue, Yellow/orange/Aqua, aqua, yellow, Orange
Type :
PC/UPC/APC, 9/125μm, Singlemode
Cable diameter :
3mm, 0.9mm, 2mm
Cable length :
can be customized
Description

12 cores SC Fiber optic pigtail Mini Breakout Pigtail SM/MM fiber pigtail sc connector

1. Compliant with Telcordia,GR-326-CORE, TIA/EIA and IEC
2. Low Insertion Loss & Back Reflection
3. Environmentally Stable
4. 2,4,6,8, 12 and 24 Channels Avaliable
5. Save Duct Space,Cost and Installation time
6. Easy Push/Pull Operation
7 Breakout Cable/Bundle Distribution Cable/ Ribbon Cable/Outdoor Waterproof cable optional

Applications

Termination of optical networks via fusion or mechanical splicing

Testing of optical devices

Cable acceptance testing

12 Cores Mini Breakout Fiber Optic Pigtails For Sc Connector

Product Description

1. The 12 fiber pigtail comes pre-terminated with LC, LC/APC, SC, SC/APC, ST, and FC/APC connectors.

2. Core and cladding combinations range from 62.5/125µm, 50/125µm, and 9/125µm for OM1, OM2/OM3/OM4, and OS2 fiber specifications.

3. 12 Fiber Optic pigtails come in lengths of 1, 2, or 3 meters with additional longer with available upon special request.

Features

  • Ceramic Ferrule;
  • High return loss;
  • Low insertion loss;
  • Good repeatability and and exchangeability
  • Excellent Polished and 100% tested;
  • Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652/G655/G657 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80
