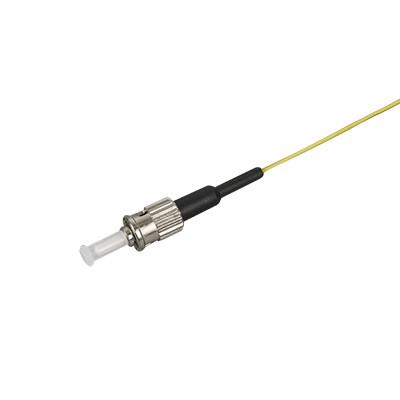

ST UPC Fiber Pigtail Assembly , 1310nm / 1550nm Single Mode Pigtail
ST UPC Fiber Pigtail Assembly , 1310nm / 1550nm Single Mode Pigtail
ST UPC Fiber Pigtail Assembly , 1310nm / 1550nm Single Mode Pigtail
ST UPC Fiber Pigtail Assembly , 1310nm / 1550nm Single Mode Pigtail
Specifications
Brand Name :
XDK
Model Number :
9/125 μm
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Supply Ability :
5 million termination per month
Packaging Details :
regular packaging
Connector : :
ST
Polish Type: :
UPC
Fiber Mode: :
9/125 μm
Fiber Count: :
Simplex
Jacket Color: :
Yellow
Wavelength: :
1310 nm/1550 nm
Insertion Loss: :
≤0.25 dB
interchangeability: :
≤0.2 dB
Description

ST UPC Pigtail

Description

A fiber pigtail is a single , short usually tight - buffered optical fiber that has an optical connector. Pre-installed on one end and a length of exposed.Fiber optic pigtail is a piece of cable terminated with fiber optic connector at only one side of the cable while leave the other side no connector.

All patch cords are functionally tested before shipping, ensure that the end face is spotless, insertion loss and return loss are in line with international telecommunication standards.

Specification

parameter ST Connector
SM MM
PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss ≥50dB ≥55dB ≥60dB /
operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity ≤1um ≤4um

Applications:
1. Local Area Network (LAN)
2. Data communication network
3. Telecommunication optical transmission network
4. Optical access network(OAN)
5. Active device termination
6. Equipment
7. CATV
