Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness
Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness
Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness
Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness
Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness
Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness
Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness
Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness
Specifications
Brand Name :
XDK
Model Number :
Customized MTP® 24 Fibers OM4 Multimode Conversion Harness Cable
Certification :
CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T D/P D/A
Supply Ability :
5million termination per month
Delivery Time :
7 working days
Packaging Details :
OEM PE bag, carton box, wooden roll
Ferrule :
0.35dB(Low Loss Elite)
Color :
Aqua, Pink, Violet, Customized
Outerjacket :
LSZH(CPR),PVC,UL PVC,OFNR ,OFNP
Diameter :
3.0mm,4.6mm
Connector Type :
US Conec MTP®-MTP® Female (Without Pin)
Fiber Mode :
OM3 OM4 50/125μm
Installation Tensile Load :
70N
Long-Term Tensile Load :
50N
Description

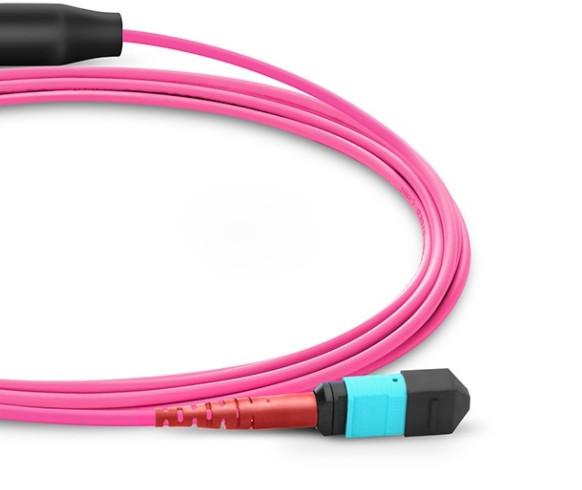

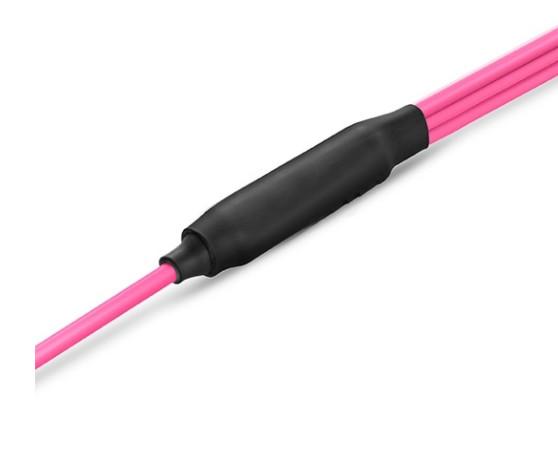

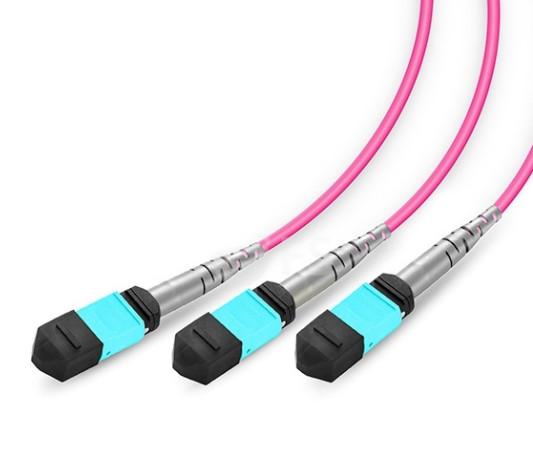

Customized MTP® 24 Fibers OM4 Multimode Conversion Harness Cable

MTP® conversion cable is designed to provide a more flexible multi-fiber cabling system based on MTP® products. Unlike MTP® harness cable, MTP® conversion cables are terminated with MTP® connectors on both ends, can provide more possibilities for the existing 24-fiber cabling system.

The 40G/100G MTP® conversion cables eliminate the wasted fibers in current 40G transmissions and upcoming 100G transmission. Compared to purchase and install separate conversion cassettes, using MTP® conversion cables is a more cost-effective and lower-loss option.

Performance:

END A END B
Connector Type MTP/MPO MTP/MPO LC LC Uniboot SC
Polarity Polarity A, Polarity B, Polarity C
IL(MTP/MPO) Standard ≤0.5 dB Ave ≤0.3dB
IL(MTP/MPO) Elite: ≤0.35dB Ave: ≤0.2dB
IL(LC/SC) Standard ≤0.25dB Low Loss : ≤0.15dB
RL SM:≥60dB MM: ≥20dB
Tester Brand EXFO & JGR
Repeatability ≤0.2dB
Interchangeability ≤0.2dB
Mating 1000 Times
Opterating Temperature -20℃ ~ +70℃
3D Interferometer Fiber Height: 1000nm~3500nm
Radius Long: 500mm min Radius Short: 50mm min Ferrule Height: 7.95mm min
MM Core Dip: <100nm

Test:

Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness

Features:

- Ulitize MPO/MTP connectors

- Inner: Ceramic Ferrule

- Available in Elite insertion loss and standarad insertion loss.

- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.

- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.

- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5

- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard

- Interface polished type has PC, UPC and APC

- Support use in attaching directly to 40/100G transceivers

- 100% factory tested, with test results included for each assembly

Application

- Metro

- CATV

- Passive fiber optic networks

- Builing communication center

- Bank Data center

- Communication center rooms
- FTTH (Fiber to The Home)

- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment

- Defense combat readiness

Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness

Polarity Testing:

Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness

Customized MTP MPO OM4 Multimode 24 Fiber Optic Cable Conversion Harness
