12 Fibre Singlemode Mpo To Lc Breakout Cable ISO9001 Approval
12 Fibre Singlemode Mpo To Lc Breakout Cable ISO9001 Approval
12 Fibre Singlemode Mpo To Lc Breakout Cable ISO9001 Approval
12 Fibre Singlemode Mpo To Lc Breakout Cable ISO9001 Approval
Specifications
Brand Name :
XDK
Model Number :
MTP/MPO - LC
Certification :
CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin :
China/ Vietnam
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5million termination per month
Delivery Time :
7 Working day
Packaging Details :
OEM PE bag, carton box, wooden roll
Fiber core :
12 core, 24 core, 8 core, 48 core, MPO MTP to LC SC fiber optic breakout fanout cable
Operating temperature :
-10°C to +70°C, -20℃~+70℃, -40deg C to + 80deg C
3d testing :
100%
Cable diameter :
3mm for 12 strands, 3.0mm Micro Cable, 5.5mm for 24 strands, 3.0mm Optional
Description

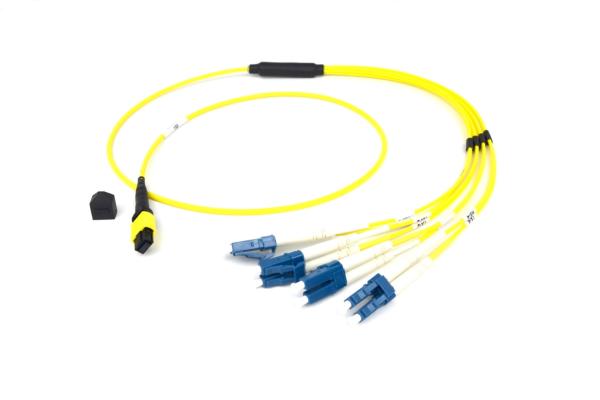

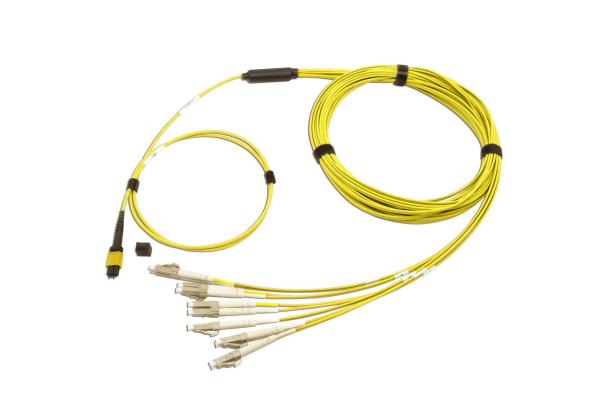

MTP (MPO) TO LC fiber cable MTP (MPO) – LC 12 Fibre Singlemode Breakout Harness Cable

100% Modular

Quickly add 12 LC ports to your network at a time.
24 fibre runs can be simply created using 1 x MTP 24 fibre trunk cable and then connect direct to equipment using M310 fan-out harnesses.
Installation is quick, clean and time is greatly reduced compared to traditional installation.
Plus installation can happen at a time convenient to you.

Our range of 3mm 12 fibre cables and 3.8mm 24 fibre cables ensures that a small bend radius is achievable, the cable weight is reduced by 65% and the space in cable trays is reduced by 60% compared to traditional tight buffered or loose tube fibre.

This allows for high density networking without loss of performance.

12 Core Physical Specification
Single Sheath Dual Sheath
Weight kg/Km 8 23
Outer Diameter 3.0mm 4.5mm
Sheath Wall Thickness (nominal ave. mm) 0.55mm Inner 0.55mm, outer 0.45mm
Sheath Wall Thickness (minimum mm) 0.48mm Inner 0.48mm, outer 0.35mm
Maximum pull force 300 N 1000 N
Transport and storage – 25 °C to + 70 °C – 25 °C to + 70 °C
Installation – 5 °C to + 50 °C – 5 °C to + 50 °C
Installed – 10 °C to + 70 °C – 10 °C to + 70 °C
Minimum Bend Radius (installed) 10 x outside diameter 10 x outside diameter
Minimum Bend Radius (installation) 15 x outside diameter 15 x outside diameter
Maximum Crush Resistant (long term) 150 N/dm 300 N/dm
Jacket Colour Singlemode – Yellow Singlemode – Yellow
