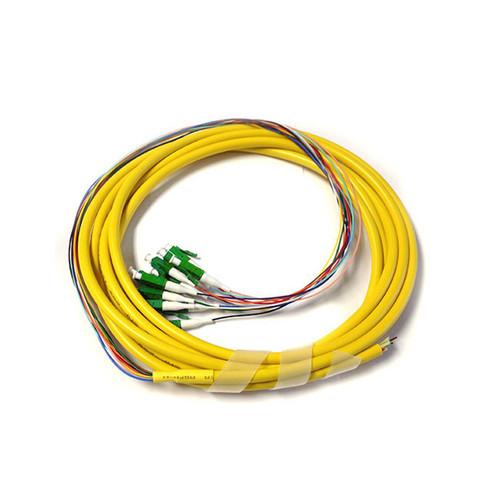

Breakout Lc Fiber Pigtail , Ceramic Ferrule 12 Fiber Pigtail Assembly
Breakout Lc Fiber Pigtail , Ceramic Ferrule 12 Fiber Pigtail Assembly
Specifications
Brand Name :
XDK
Model Number :
12 fiber LC Fiber optic pigtail
Certification :
CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin :
China/ Vietnam
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5million termination per month
Delivery Time :
6 working day
Packaging Details :
OEM PE bag, carton box, wooden roll
product name :
12 fiber LC Fiber optic pigtail
Connector :
FC, SC, SC/APC (LC, LC, FC for choice)
Fiber type :
SM 9/125 G652D, OS1, 9/125 tight buffered fiber Single Mode simplex, G652D/G657A1/G657A2 etc., G657A1 etc.
Jacket :
PVC/LSZH, PVC or LSZH
Cable diameter :
3mm, 0.9mm, 2mm
Length :
1m or customized
Description

12 fiber LC Fiber optic pigtail singlemode/ multimode Fiber Breakout Pigtail Ceramic Ferrule

Description

The 12 fiber pigtail comes pre-terminated with LC, LC/APC, SC, SC/APC, ST, and FC/APC connectors. Core and cladding combinations range from 62.5/125µm, 50/125µm, and 9/125µm for OM1, OM2/OM3/OM4, and OS2 fiber specifications. 12 Fiber Optic pigtails come in lengths of 1, 2, or 3 meters with additional longer with available upon special request.

Breakout Lc Fiber Pigtail , Ceramic Ferrule 12 Fiber Pigtail Assembly

Specification

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652/G655/G657 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80

Features

  • Ceramic Ferrule;
  • High return loss;
  • Low insertion loss;
  • Good repeatability and and exchangeability
  • Excellent Polished and 100% tested;
  • Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

Applications

  • Termination of optical networks via fusion or mechanical splicing
  • Testing of optical devices
  • Cable acceptance testing
