Simplex LC UPC Fiber Optic Pigtails 1310nm 1550nm Wavelength
Simplex LC UPC Fiber Optic Pigtails 1310nm 1550nm Wavelength
Simplex LC UPC Fiber Optic Pigtails 1310nm 1550nm Wavelength
Simplex LC UPC Fiber Optic Pigtails 1310nm 1550nm Wavelength
Specifications
Brand Name :
XDK
Model Number :
9/125 μm
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Supply Ability :
5 million termination per month
Packaging Details :
regular packaging
Connector : :
LC
Polish Type: :
UPC
Fiber Mode: :
9/125 μm
Fiber Count: :
Simplex
Jacket Color: :
12 Colors
Wavelength: :
1310 nm/1550 nm
Insertion Loss: :
≤0.25 dB
Interchangeability: :
≤0.2 dB
Description

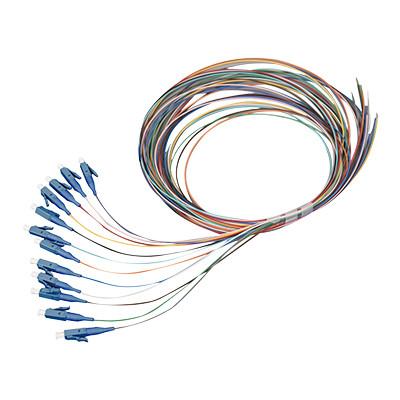

LC UPC 12 Colors Pigtail

Description

Pigtail is a piece of fiber with connector terminated just on one end, used for terminating a fiber by fusion splicing the fiber with a pigtail or directly terminating the fiber with a fast connector to make a fiber patch cord.

LC/UPC Simplex Fiber Optic Pigtails are ultra-reliable components featuring low insertion loss and high return loss.

Specification

Parameter LC Connector
SM MM
PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss ≥50dB ≥55dB ≥60dB /
operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity ≤1um ≤4um

Characteristics:

  • 1. Low Insertion loss
  • 2. High return loss
  • 3. Good Repeatability
  • 4. Good Interchange
  • 5. Excellent Environmental Adaptabilit

Application:

  • 1. Communication rooms
  • 2. FTTH (Fiber to The Home)
  • 3. LAN (Local Area Network)
  • 4. FOS (fiber optic sensor)
  • 5. Fiber Optic Communication System
  • 6. Optical fiber connected and transmitted equipment
  • 7. Defense combat readiness
