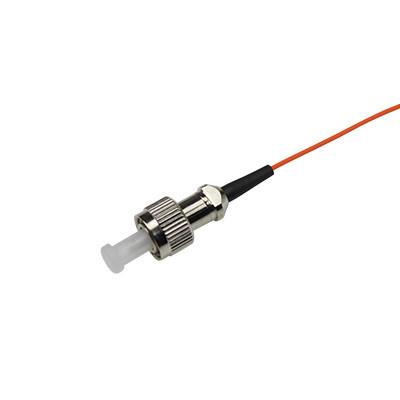

OM1/OM2 Multimode Pigtail Fiber Cable , Orange Fc Pigtail
OM1/OM2 Multimode Pigtail Fiber Cable , Orange Fc Pigtail
OM1/OM2 Multimode Pigtail Fiber Cable , Orange Fc Pigtail
OM1/OM2 Multimode Pigtail Fiber Cable , Orange Fc Pigtail
Specifications
Brand Name :
XDK
Model Number :
OM1/OM2
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Supply Ability :
5 million termination per month
Packaging Details :
regular packaging
Connector : :
FC
Polish Type: :
UPC
Fiber Mode: :
OM1/OM2
Fiber Count: :
Simplex
Jacket Color: :
Orange
Wavelength: :
850nm, 1300nm
Insertion Loss: :
≤0.25 dB
Interchangeability: :
≤0.20 dB
Description

FC OM1/OM2 Multimode Pigtail

Description

Our pigtails provides high reliability and flexibility for our customers in different industries. Our top -of - the - line fiber optic cable assembles and stringent manufacturing process ensures the excellent optical performance for our pigtails with traceable data. All pigtails can be customized in length, fiber types and connector types to suit each customer requirement with our state-of-the-art production facilities.

Specification

parameter FC Connector
SM MM
PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss ≥50dB ≥55dB ≥60dB /
operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity ≤1um ≤4um

Applications :

  • Suitable for fiber optic patch panel
  • Telecommunication networks
  • Communication networks
  • CATV, LAN, WAN, Test &Measurement
