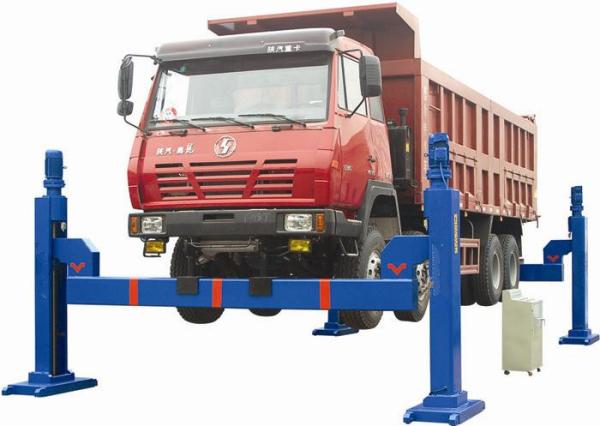

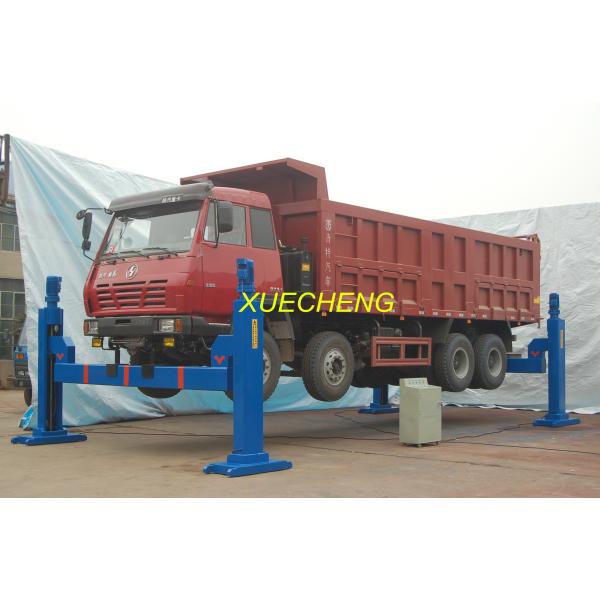

Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm
Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm
Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm
Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm
Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm
Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm
Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm
Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm
Specifications
Brand Name :
XCarepairking
Model Number :
XT30-4B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$8400
Payment Terms :
T/T, Western Union, Cash, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
30-45 days
Packaging Details :
plywood box
Lifting Capacity :
30ton
Lifting Height :
1700mm
Design :
Four Post
Type :
One Cylinder Hydraulic Lift
Total Height :
2690mm
Total Width :
4410mm
Length :
can be adjustable depending on the vehicle
MIni Lifting Height :
580mm
Description

Electric Hydraulic Heavy Duty Vehicle lift 30ton/1700mm Four Post Truck Lifter

Features

  • Strong hydraulic cylinder;
  • Adjustable runway;
  • Maintenance free load bearing;
  • Built-in lift, large bearing capacity;
  • Open front design for easy under-vehicle access;
  • Individual design, reasonable aesthetic;

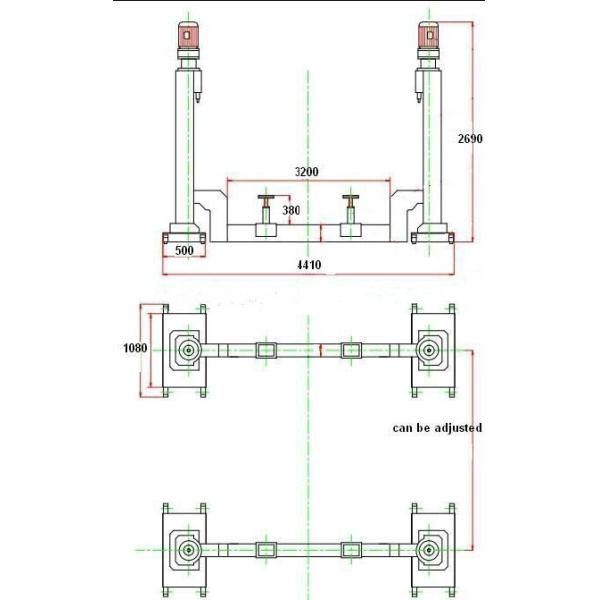

Technical Drawing

Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm

Technical Parameters

Model

XT20-4B/XT30-4B/XT40-4B

lifting capacity

20/30/40ton

lifting height

1700mm

effective span

3200mm

output speed

50 r/min

lifting speed

600mm/min

motor power

2.2kw×4/ 3kw×4/ 3kw×4

input voltage

380v

Weight

2.1-4ton

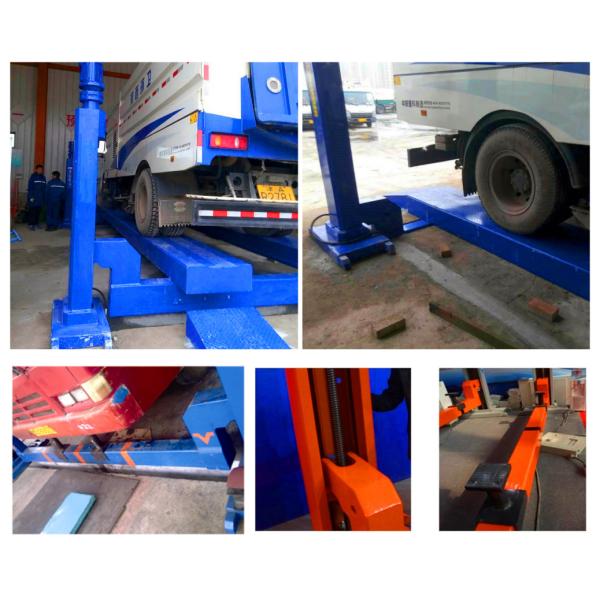

Detailed Pictures

Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm

Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm

Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm

Packaging&Shipping

Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm

Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm

More Models for Optional

Heavy Duty Hydraulic Vehicle Lift Large-scale Lifts 4 Post Truck Lifting Machine 30Ton/1700mm
