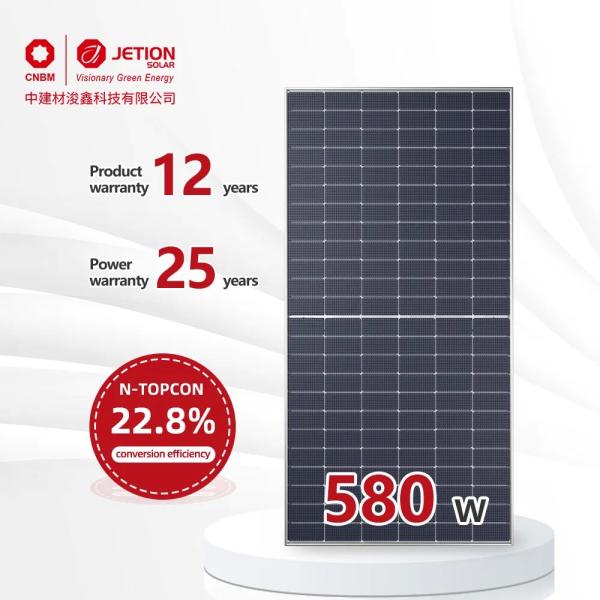

580W 42 Volt Monocrystalline Solar Panel with IP68 Junction Box and Compact Design for High Efficiency

Specifications

MOQ :

10,000,000

Price :

0.095

Max. Power :

580W

Optimum Voltage :

42.62 V

Optimum Current :

13.61A

Open-Circuit Voltage :

51.47V

Short-Circuit Current :

14.37A

Operating Temperature :

-40-85

Max. System Voltage :

1500V (IEC)

Max. Fuse Current :

30A

Power Tolerance :

0-5W

Cell Temperature :

44 Degree

Power Coefficient :

-0.26 %

Voltage Coefficient :

-0.24%

Current Coefficient :

0.04%

Module Size :

2278*1134*30mm

Module Weight :

32 KG

Description

580W Soft Solar Panel For Roof Material

Basic information

Basic information	Data
cell type	TOPCon cell 182*91 mm
cell arrangement	144 pcs(2126)
module size	2278113430 mm
Module weight	32 KG
Junction box	Enclosure rating IP68
Output cable	4mm2, 500mm cable net length. cable length can be customized
Connector registration	MC4 compatibility
Frame	N/A
Front static load (snow pressure)	5400/2400Pa
Rear static load (wind pressure)	N/A

Beijing X-Solar Energy Co., Ltd. was found in 2020, and headquartered in Beijing. It's a science and technology innovative energy enterprises with the main business of future cell R&D, flexible photovoltaic modules, building photovoltaic module production, high-end equipment manufacturing, production line delivery, and AI-CITY wisdom energy management services.

In July 2023, the company's first demonstration factory, Jiangsu X-Solar Green-building Technology Co., Ltd., was established in Jiangyin CNBM Jetion Industrial Park. Meanwhile, Jiangsu YuanTeng FengSheng Intelligent Manufacturing Technology Co., Ltd., a wholly-owned equipment company of the company, delivered the world's first "three-in-one" automatic production line for Jiangyin base. The production line can be compatible with the production of three categories: X-Solar Light shadow series (flexible PV modules), X-Solar Light rhyme series (building PVtile modules), X-Solar Light Curtain series (building PV wall modules), and customized products. X-Solar PV series products have the advantages of integrating architectural aesthetics, complying with design specifications and creating energy value, which have been widely recognized and praised by customers in domestic and overseas.

In 2024, the company has added two regional centers in Shanghai and Guangzhou of China, and set up the Hong Kong X-Solar Future Energy Research Institute, and overseas sales companies in Australia, Italy, Germany, Saudi Arabia and Argentina. The company has launched a global layout to provide sustainable energy products and services to many countries, and has contributed to the "carbon neutrality and carbon peak".
X-solar company is the subsidiary company for CNBM Jetion.

1. Questions about product performance and advantages: Customers have questions about the power generation efficiency, durability, and ease of installation of photovoltaic lightweight flexible components.
Answer:China National Building Materials Junxin crystalline silicon components adopt cutting-edge battery technology, have high power generation conversion rate and durability, and have passed IEC61215:2021, IEC61730:2023, IEC 61701 (salt spray certification), IEC 62716 (ammonium resistance certification), IEC 60068-2-68 (sand and dust certification). In terms of component power, the maximum power of 720 watts has passed TUV-SUD test certification.

2. Price and cost comparison: Customers will compare the price of photovoltaic flexible modules with conventional crystalline silicon modules and worry that the cost is too high.
Answer:We understand your concern about price, you can refer to our fiberglass frame components. Our fiberglass frame components are based on Junxin N-type battery technology, with fiberglass frames, which minimizes component material costs. Combined with Junxin's cutting-edge battery technology, it is highly efficient and high-power; the fiberglass frame is corrosion-resistant and salt-spray resistant. , high yield strength, and excellent insulation properties enable Junxin crystalline silicon components to produce greater benefits in practical application scenarios.

3. Application scenario applicability: Customers are not sure whether photovoltaic flexible modules are suitable for their specific installation environment or project needs.
Answer:Photovoltaic modules have a wide range of application scenarios, including but not limited to roofs, carports, boat roofs, tents, awnings, etc. Since the establishment of our company, we have strict management regulations for the development and introduction of component materials and subsequent quality inspections. The company has been continuously investing in photovoltaic technology quality control by establishing professional and complete laboratories internally. Externally, our company has always We insist on applying for IEC functional testing for relevant products to ensure that our components can easily adapt to various complex environments and project needs. Our professional technical team will provide customized solutions according to your specific needs.

4. After-sales service and warranty policy: Customers care about the quality of after-sales service, warranty policy and maintenance process of the product.
Answer:Our cutting-edge HJT technology components have a 15-year warranty and a 30-year power warranty. Members of our customer service team have been engaged in the photovoltaic industry for more than 10 years and have extensive on-site technical support experience (domestic and foreign). They can properly handle everything from component delivery to after-sales service.

5. Market competition and comparison of competing products: Customers ask about the differences and advantages of our components compared with other brands or types of products.
Answer:In the field of photovoltaic modules, we have always maintained a leading position in technology and market. Our products are superior to similar products in terms of performance, durability, and ease of installation. We are well aware of the fierce competition in the market, so we continue to invest in R&D and innovation to provide better products and services to meet customer needs.
