Specifications
Place of Origin :
China
Supply Ability :
200000pcs/Month
Payment Terms :
T/T, Western Union
MOQ :
500pcs
Product name :

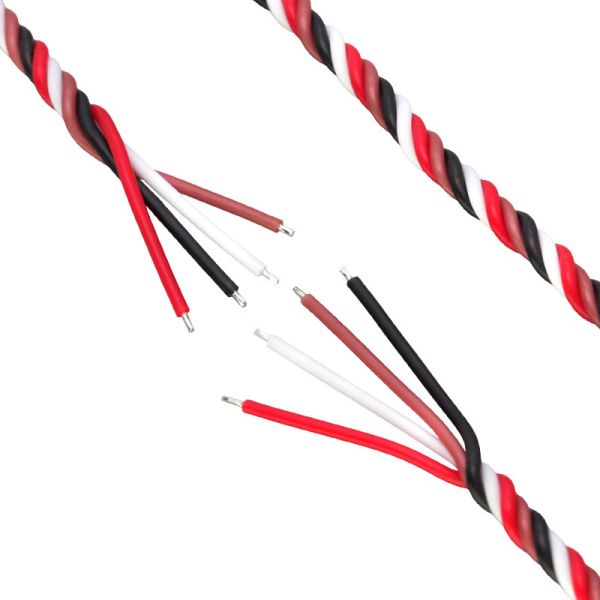

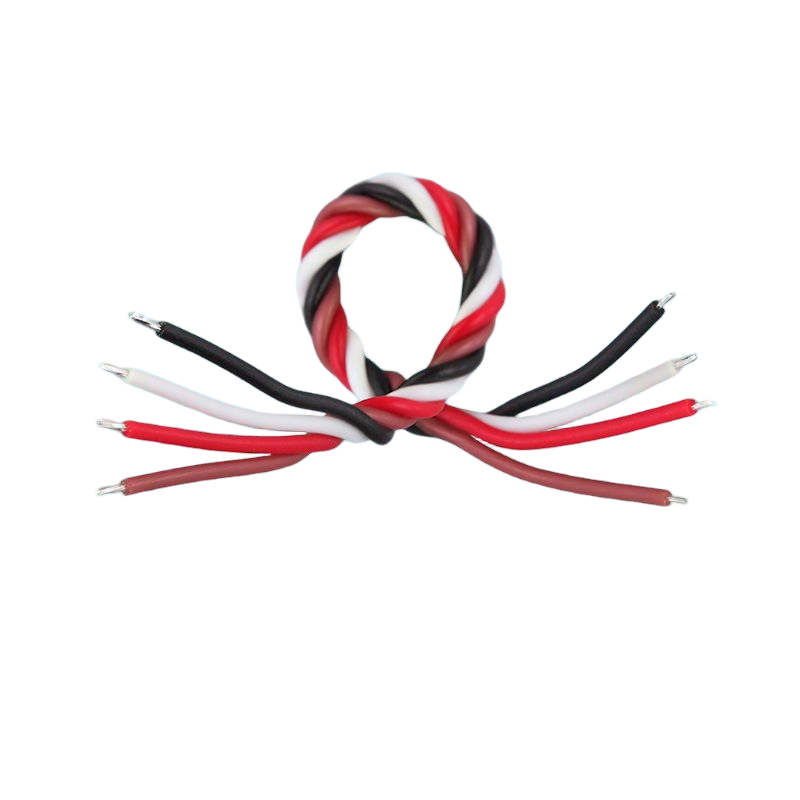

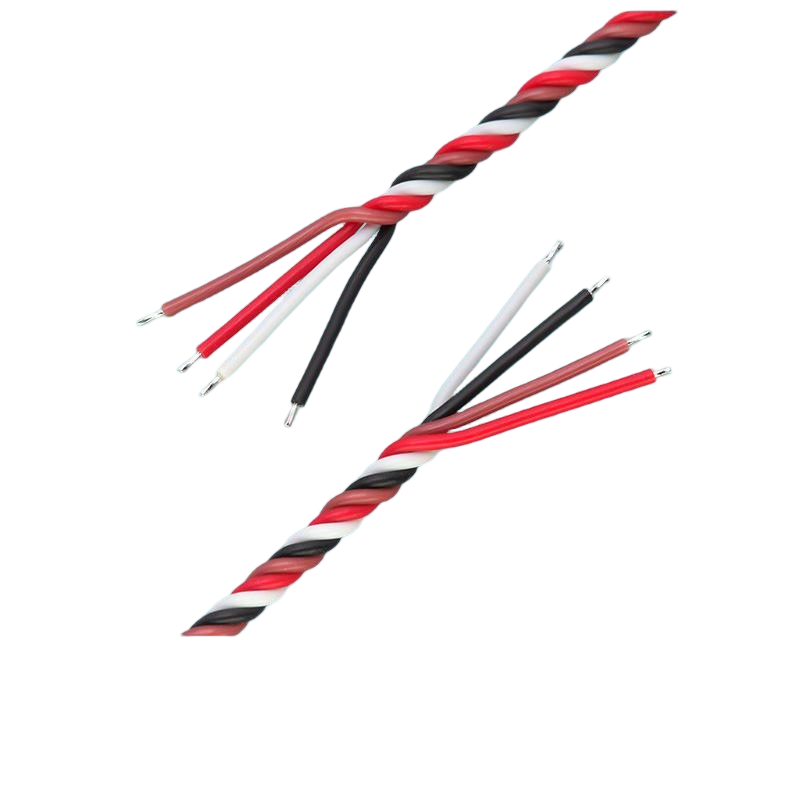

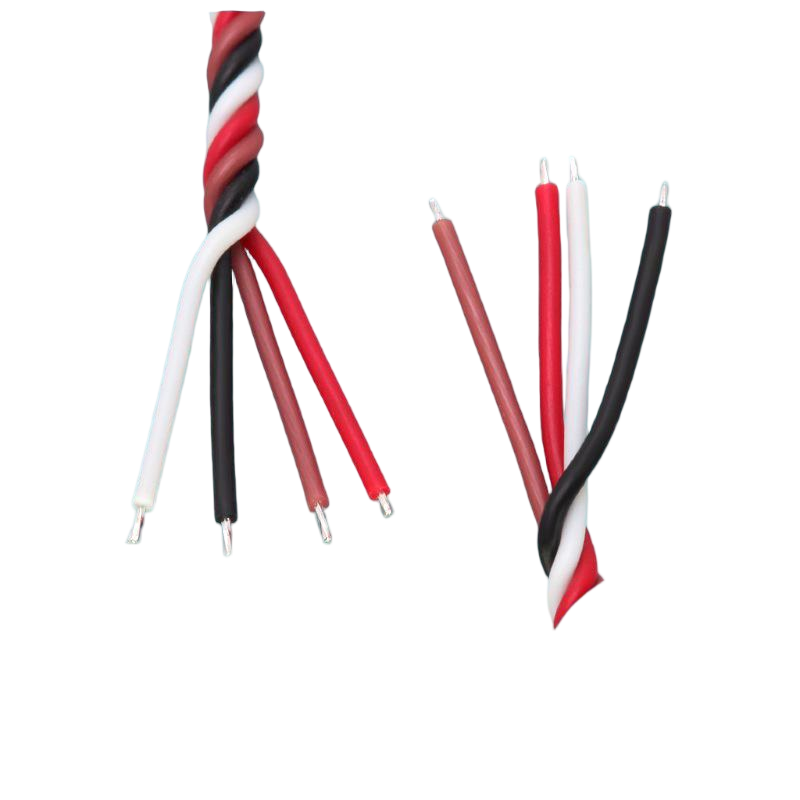

4 Conductor Tinned Copper Twisted Wire with Stripped Ends
Colour :
Red / Black / White / Brown can be customized
Delivery Time :
7-10 day
Packaging Details :
1000pcs per bag, carton for outsdie packing
Model Number :
UT C563
Brand Name :
Unitech
Current Rating :
3A (22AWG) / 2A (24AWG) / 1.5A (26AWG) per conductor
Application :
RC Hobby, Drone, Motor, ESC
Working temperature :
-20℃ to +80℃
Certification :
CE ROHS
Price :
USD, NegotiableMR30
Voltage Rating :
300V AC/DC
Professional in :
Wire connector harness
Key feature :
Custom Wiring Harness
Description

Custom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified Factory

Product Specification:
Name 4 Conductor Tinned Copper Twisted Wire with Stripped Ends
Conductor Gauge 22AWG / 24AWG / 26AWG (customizable 20AWG / 28AWG)
Conductor Material Tinned Copper
Insulation Material PVC
Cable Length Custom lengths from 100mm to 1000mm
Twisting Pitch 10~20mm (optimized for maximum EMI suppression, customizable)
Color Coding Red / Black / White / Brown (custom color combinations available)
Application FPV Drone, Quadcopter, Flight Controller (FC) to 4-in-1 ESC ConnectionCertificationRoHS Compliant
Rated Rating
 300V AC/DC
Key Features
Precision twisting design effectively eliminates electromagnetic interference
Engineering service OEM and ODM service ,2D drawing
Quality Control

1. 100% breakover test

2. 100% crimp inspection

3. 100% size inspection

4. 100% visual inspection
Samples

1.Samples confirmed first before mass production

2.Samples for free
MOQ Small Order Can Be Accepted
Package Inner:plastic bag outer:standard export cartons or custom package

Wire Harness And Cable Features:

1.Differential Twisted Pair Anti-Interference Design

The 4 conductors are twisted into two differential pairs (e.g., red-brown / white-black), which cancels out common-mode noise induced by motors, ESCs, and RF modules. This prevents signal corruption, making it ideal for high-speed serial communication (UART, I2C, SBUS) in drones and industrial systems.

2.Tinned OFC Conductors for Reliability

Oxygen-free copper ensures excellent electrical conductivity, while tin plating prevents oxidation and corrosion, extending service life in humid or industrial environments. The stranded construction offers flexibility and resistance to fatigue cracking.

3.Flexible, Durable Insulation

Standard PVC insulation is flexible, durable, and RoHS-compliant, suitable for most applications. High-temperature FEP/PTFE options are available for environments near heat sources (e.g., ESCs, motors).

4.Customizable Bare End Termination

The stripped and tinned ends allow for direct soldering to PCBs or crimping to any connector type (XH2.54, GH1.25, JST, etc.), making this wire highly versatile for custom projects.

5.Standard Color Coding for Easy Wiring

The industry-standard red/black/white/brown color scheme aligns with common power and signal pinouts, reducing wiring errors and simplifying troubleshooting in complex setups.

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

Custom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified FactoryCustom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified FactoryCustom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified FactoryCustom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified Factory

Customized electrical wire harness connectors: we produce custom solutions for all industries and applications

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

All Wire Harnesses will be custom made as your drawing ans specifications
Sample Prototype, Trial Order will be welcome!


If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com

Customization Options:
1.Wire Gauge: Custom AWG sizes from 20AWG to 30AWG available
2.Insulation Material: Upgrade to high-temperature FEP/PTFE insulation
3.Color Coding: Custom color combinations to match your specific pinout requirements
4.Connector Termination: Pre-crimped with any connector type (XH2.54, GH1.25, PH2.0, etc.)
5.Shielded Versions: Optional aluminum foil shield + drain wire for environments with extreme EMI interference
6.Packaging: Bulk spools, cut-to-length bundles, or custom retail packaging

Important Notes:


1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.

Custom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified FactoryCustom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified FactoryCustom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified FactoryCustom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified FactoryCustom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified Factory
