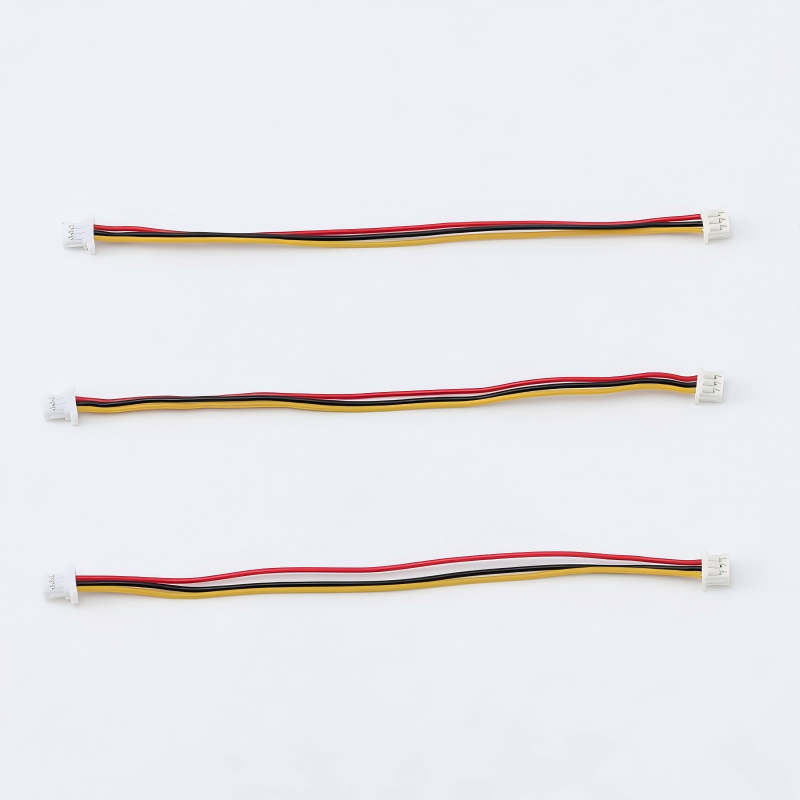

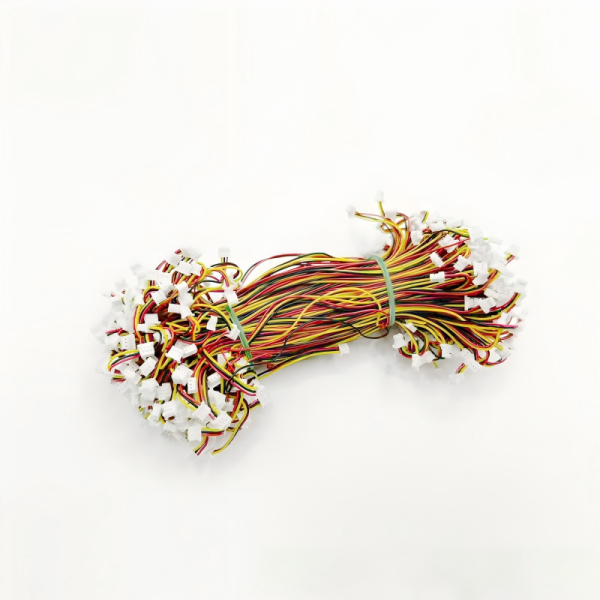

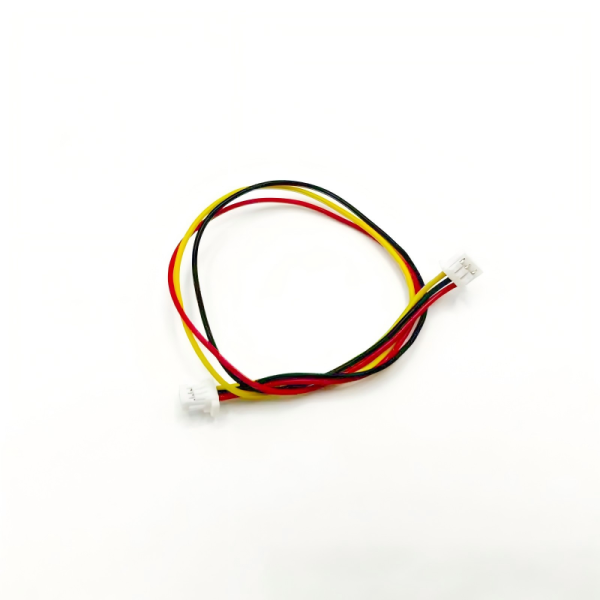

Custom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in China
Custom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in China
Custom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in China
Custom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in China
Custom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in China
Custom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in China
Specifications
Brand Name :
Unitech
MOQ :
500pcs
Delivery Time :
7-10 day
Working temperature :
-20℃ ~ +80℃
Certification :
CE ROHS
Payment Terms :
T/T, Western Union
Place of Origin :
China
Colour :
Red / Black / Yellow can be customized
Supply Ability :
200000pcs/Month
Product name :
ZH 1.5mm 3 Pin Male to Female Terminal Cable for Drone
Packaging Details :
1000pcs per bag, carton for outsdie packing
Model Number :
UT C563
Price :
USD, NegotiableMR30
Insulation Resistance :
≥ 100MΩ at 500V DC
Professional in :
Wire connector harness
Key feature :
Custom Wiring Harness
Application :
RC Hobby, Drone, Motor, ESC
Contact Resistance :
≤ 20mΩ
Category :
Male-to-Male / Male-to-Female / Female-to-Female / Single-Ended (Bare Wire)
Description

Custom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in China

Product Specification:
Name ZH 1.5mm 3 Pin Male to Female Terminal Cable for Drone
Connector ZH1.5
Insulation Material Flexible PVC
Conductor Gauge 26AWG / 28AWG (customizable 24AWG available for higher current)
Wire Construction 4 Conductors (Red/Yellow/Blue/Black color-coded)
Cable Length 50mm / 100mm / 150mm / 200mm (custom lengths from 30mm to 500mm supported)
Conductor Type Tinned Oxygen-Free Copper (OFC) stranded wire
Application Drones & RC Models, DIY & Prototyping
Rated Voltage
 150V AC/DC
Color Coding Red/Yellow/Black (standard power/signal scheme)
Engineering service OEM and ODM service ,2D drawing
Quality Control

1. 100% breakover test

2. 100% crimp inspection

3. 100% size inspection

4. 100% visual inspection
Samples

1.Samples confirmed first before mass production

2.Samples for free
MOQ Small Order Can Be Accepted
Package Inner:plastic bag outer:standard export cartons or custom package

Wire Harness And Cable Features:

  • Ultra-Compact 1.5mm Pitch Connector


The 1.5mm pitch design offers a space-saving footprint, making it ideal for small electronics and tight installations where larger connectors cannot fit.

  • Secure Latching Lock Design


The built-in positive lock prevents accidental disconnection due to vibration or tugging, a critical feature for drones, portable devices, and moving machinery. It also prevents reverse insertion to protect components.

  • Standard 3-Color Coded Conductors


The industry-standard red/yellow/black color scheme aligns with common power and signal pinouts (VCC, GND, Signal), reducing wiring errors and simplifying troubleshooting.

  • High-Quality Tinned OFC Conductors


Oxygen-free copper ensures excellent electrical conductivity, while tin plating prevents oxidation and corrosion, extending service life in humid or industrial environments.

  • Flexible, Durable PVC Insulation


The flexible PVC jacket resists cracking under repeated bending, making it suitable for tight routing inside device enclosures. It is also heat-resistant and RoHS-compliant.

  • Multiple Configuration Options


Available in various configurations (male-to-male, male-to-female, single-ended bare wire) to suit different connection needs, from board-to-board links to custom wiring projects.

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

Custom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in ChinaCustom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in ChinaCustom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in China

Customized electrical wire harness connectors: we produce custom solutions for all industries and applications

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

All Wire Harnesses will be custom made as your drawing ans specifications
Sample Prototype, Trial Order will be welcome!


If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com

Customization Options:
  1. Connector Variants: Alternative connectors (PH2.0, XH2.54, GH1.25) available; custom gender configurations
  2. Wire Gauge: Upgrade to 24AWG for higher current carrying capacity
  3. Custom Lengths & Colors: Non-standard lengths, custom color combinations, or logo printing on the insulation
  4. Shielded Versions: Optional foil shield + drain wire for environments with high EMI interference
  5. Packaging: Bulk poly bags, anti-static packaging, or custom retail packaging with your brand label

Important Notes:


1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
