Specifications
Brand Name :
OEM
Place of Origin :
CHINA
MOQ :
1 pcs
Payment Terms :
T/T
Delivery Time :
15-20 days
Model Number :
all
Certification :
ISO9001
Supply Ability :
10000pcs per month
Packaging Details :
Wooden case
Description

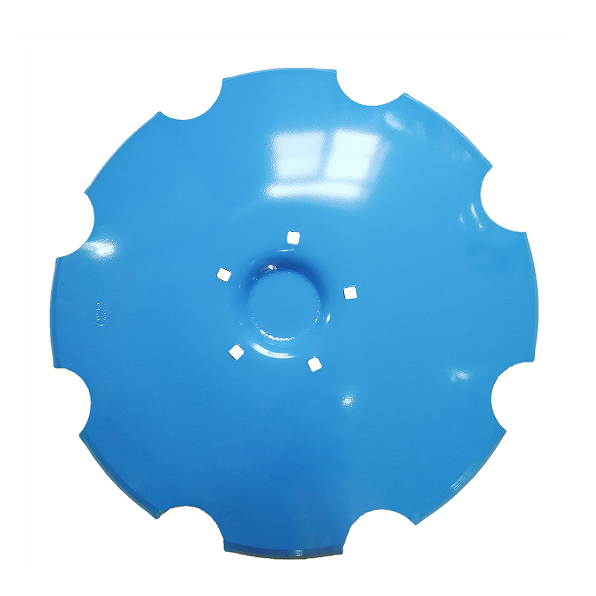

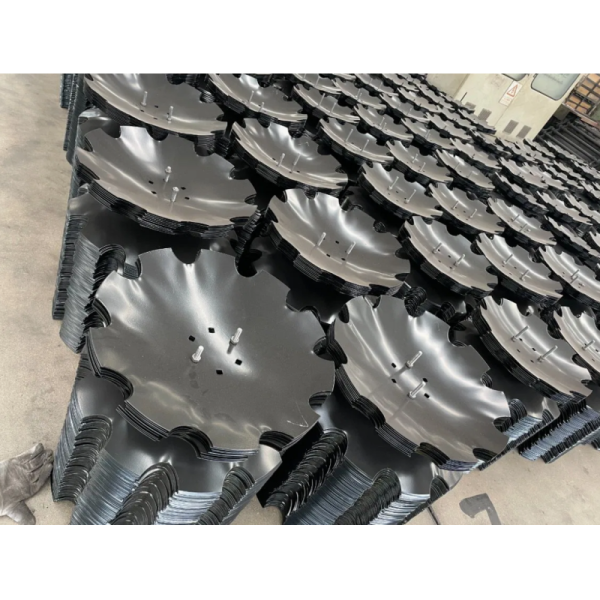

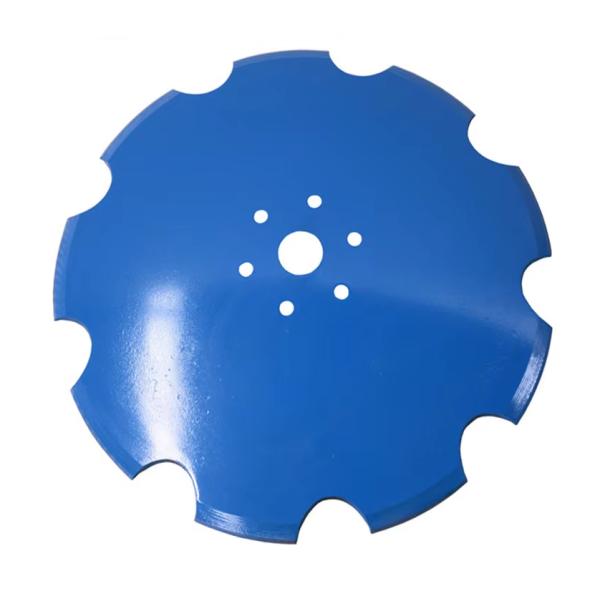

Disc blade are suitable for disc harrow and agricultural machine, as usual teh material is 65Mn spring steel

and 40MnB steel.

As usual 65Mn spring steel hardness is 40-45HRC, 40MnB steel hardness is 43-48HRC. We are able

to producting alot of kinddisc blade, max diameter is 46inch(1170mm).

Material: 65Mn,Boron steel
Hardness: HRC38-45, HRC43-48
Thickness: 3.0-12.5mm
Size/dimension: 12"-44"(300mm-1120mm)
Edge of Disc Blade: Round or Notched.
Shape: Flat,Concave or Wavy
MOQ: 100 pcs
Production Capacity: 7 Million pcs annually
Surface treatment: Painting
Colors: Blue or black ( matt or bright), Made to your order
Hole Type: Square, Round, Hexagon, Clover Leaf, Optional
Hole Size: 27x27mm, 42x42mm, optional
Working Depth: 200mm, 300mm
Working Width: 3.4M ~ 6.2M
Packing: Non-fumigation wooden case, metal case according policy of different regions
Feature /Characteristic: Highest wear life due to special edge making process
DIAMETER THICKNESS WEIGHT PLAIN WEIGHT NOTCHED
MM INCH MM INCH KG LBS KG LBS
300 12” 3 1/8” 1.6 3.5 1.1 2.4
330 13” 3 1/8” 1.8 4 1.2 2.6
360 14” 3 1/8” 2.3 4.9 1.9 4.1
410 16” 3 1/8” 3.2 7 2.7 5.9
460 18” 3 1/8” 4.3 9.5 3.8 8.4
460 18” 3.5 1/7” 4.6 10.2 4.1 9
510 20” 3.5 1/7” 5.8 12.7 5.6 11.5
510 20” 4 2/13” 6.5 14.4 5.8 12.7
560 22” 4 2/13” 8.1 18 7.5 16.5
560 22” 4.5 2/11” 9 20 8.5 18.7
560 22” 5 1/5” 9.5 21.6 9 19.8
560 22” 6 15/64” 12 26.5 11 24.2
610 24” 5 1/5” 11.3 25 10.5 23.1
610 24” 6 15/64” 14.2 31.5 13 28.6
660 26” 5 1/5” 14.1 31 13 28.6
660 26” 6 15/64” 17 37.5 15.8 34.8
660 26” 7 9/32” 20 43.5 18.5 40.7
660 26” 8 5/16” 23 51 21 46
710 28” 6 15/64” 20 44 18.5 40.7
710 28” 7 9/32” 23 50.6 21.5 46
710 28” 8 5/16” 26 57.2 24 52.1
760 30” 8 5/16” 29 64 28 61.5
760 30” 10 3/8” 35 77 33.5 73.7
810 32” 8 5/16” 35 77 33 75
810 32” 10 3/8” 43 95 40 68
910 36” 12 1/2” 68 150 60 132
960 38” 12 1/2” 77 170 70 154
1016 40” 12 1/2” 82 180 77 169.4
1116 44” 12 1/2” 89 196 84 184.8
