Specifications
Brand Name :
OEM
Place of Origin :
CHINA
MOQ :
1 pcs
Payment Terms :
T/T
Delivery Time :
15-20 days
Model Number :
all
Certification :
ISO9001
Supply Ability :
10000pcs per month
Packaging Details :
Wooden case
Description

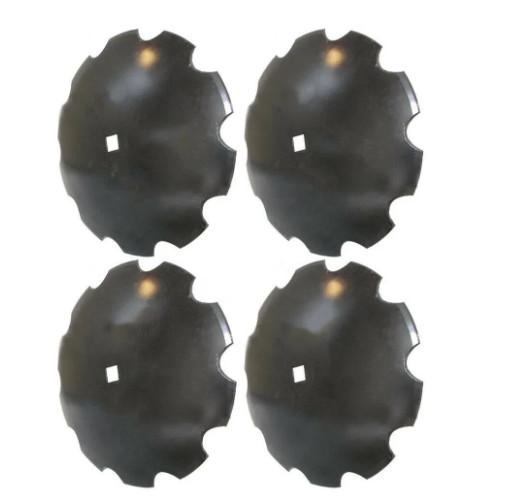

Disc blade are suitable for disc harrow and agricultural machine, as usual teh material is 65Mn spring steel

and 40MnB steel.

As usual 65Mn spring steel hardness is 40-45HRC, 40MnB steel hardness is 43-48HRC. We are able

to producting alot of kinddisc blade, max diameter is 46inch(1170mm).

Material: 65Mn,Boron steel
Hardness: HRC38-45, HRC43-48
Thickness: 3.0-12.5mm
Size/dimension: 12"-44"(300mm-1120mm)
Edge of Disc Blade: Round or Notched.
Shape: Flat,Concave or Wavy
MOQ: 100 pcs
Production Capacity: 7 Million pcs annually
Surface treatment: Painting
Colors: Blue or black ( matt or bright), Made to your order
Hole Type: Square, Round, Hexagon, Clover Leaf, Optional
Hole Size: 27x27mm, 42x42mm, optional
Working Depth: 200mm, 300mm
Working Width: 3.4M ~ 6.2M
Packing: Non-fumigation wooden case, metal case according policy of different regions
Feature /Characteristic: Highest wear life due to special edge making process
Common Specifications of Disc
Dia. Concavity Thickness
mm inch mm mm
255 10 12 3
305 12 19 3
330 13 25 3
355 14 38 3
410 15 38~50 3
430 17 57 3,4
460 18 38~60 3,4
480 19 57 3,4
510 20 44~63 3,4,5
535 21 63 3,4,5
560 22 60~85 4,5,6
585 23 75~90 4,5.6
610 24 75~95 4,5,6
660 26 86~115 5,6,7,8
710 28 100~130 5,6,7,8
760 30 120~135 6,7,8,10,12
810 32 120~140 8,10,12
910 36 120-200 8,10,12
960 38 120-200 8,10,12
