Three Point Mounted Farming Equipment Heavy Duty Disc Harrow
Three Point Mounted Farming Equipment Heavy Duty Disc Harrow
Three Point Mounted Farming Equipment Heavy Duty Disc Harrow
Three Point Mounted Farming Equipment Heavy Duty Disc Harrow
Three Point Mounted Farming Equipment Heavy Duty Disc Harrow
Three Point Mounted Farming Equipment Heavy Duty Disc Harrow
Three Point Mounted Farming Equipment Heavy Duty Disc Harrow
Three Point Mounted Farming Equipment Heavy Duty Disc Harrow
Specifications
Brand Name :
OEM
Model Number :
1BJ
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 pcs
Payment Terms :
T/T
Supply Ability :
5000pcs per month
Delivery Time :
15-20 days
Packaging Details :
Standard export packaging
Description

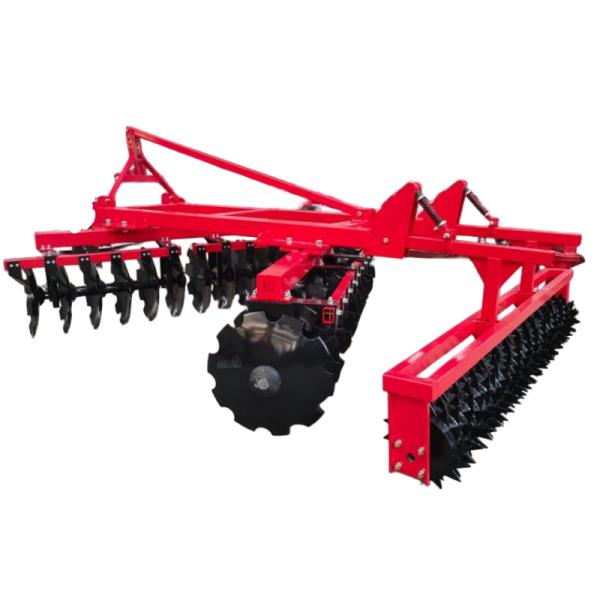

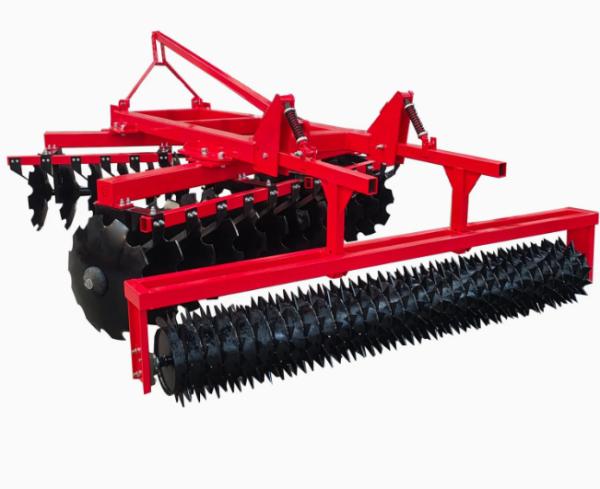

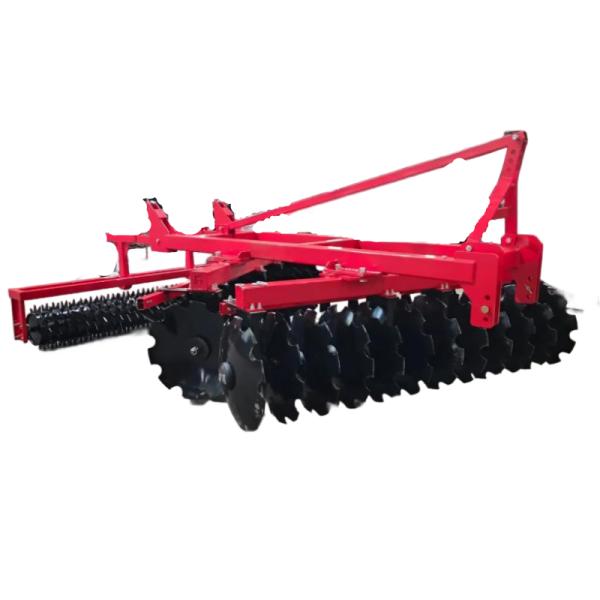

The 1BJ Series Folding Hydraulic Offset Middle Harrow is designed for breaking up clods in heavy, sticky soils after tillage,

as well as for seedbed preparation, soil scarification, and clearing plant stubble before cultivation in lighter soils.

It features a robust structure, high working efficiency, excellent soil penetration, effective leveling and scarification,

a horizontal hinge mechanism, and the convenience of wide working width and narrow transport width.

Model 1BJ-3.0 1BJ-3.4 1BJ-4.0 1BJ-4.4 1BJ-5.3
Working width(mm) 3000 3400 4000 4400 5300
Working depth(mm) 140
Diameter of disc 560mm / 22''
Thickness of disc(mm) 4
No. Of disc(pcs) 28 32 36 40 48
Weight(kg) 1300 1500 1700 2000 2300
Matched power(hp) 70-90 80-100 100-120 120-140 140-160
Linkage Hydraulic trailed with tractor
