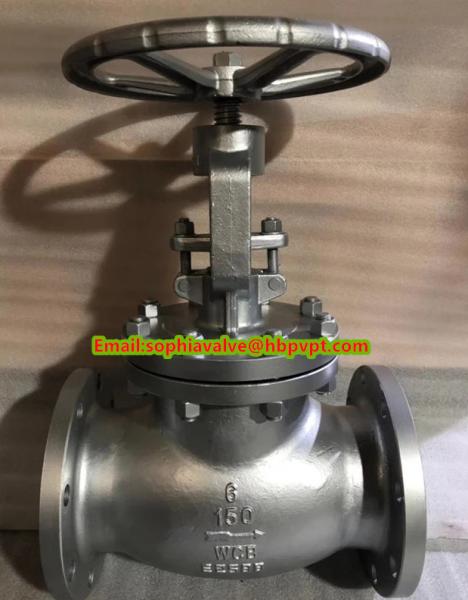

6'' CLASS150 WCB cast steel flanged globe valve with handwheel
6'' CLASS150 WCB cast steel flanged globe valve with handwheel
6'' CLASS150 WCB cast steel flanged globe valve with handwheel
6'' CLASS150 WCB cast steel flanged globe valve with handwheel
6'' CLASS150 WCB cast steel flanged globe valve with handwheel
6'' CLASS150 WCB cast steel flanged globe valve with handwheel
6'' CLASS150 WCB cast steel flanged globe valve with handwheel
6'' CLASS150 WCB cast steel flanged globe valve with handwheel
6'' CLASS150 WCB cast steel flanged globe valve with handwheel
6'' CLASS150 WCB cast steel flanged globe valve with handwheel
Specifications
Brand Name :
PVPT
Place of Origin :
China
MOQ :
1 pc
Price :
EXW FOB CFR CIF
Payment Terms :
L/C, T/T
Delivery Time :
30 days after receiving the down payment
Packaging Details :
wooden case, pallet or as per customer request
Size :
6''
Pressure :
CLASS150
Body material :
WCB
Description

6'' CLASS150 WCB cast steel flanged globe valve with handwheel

Specifications

1.Production Size:1/2"~12".DN15~DN300

2.Pressure:150LB,300LB,600LB,900LB

Standard:

1.Design Standard:API600,API6D,BS1873

2.Face to Face:ASME B16.34

3.Flange Standard:ASME B16.5

4.Testing Standard:API 598

Material of parts:

1.Body:ASTM A216 WCB

2.Bonnet:ASTM A216 WCB

3.Stem:2Cr13,SS304,SS316,Carbon Steel

4.Stem Nut:brass,Ductile iron

5.Disc:ASTM A216 WCB

6.Seat:13Cr13,Stellite

7.Hand wheel:ASTM A536 65-45-12

8.Bonnet bolt:ASTM A193 B7

9.Bonnet nut:ASTM A194 2H

10.Packing:Graphite

Product show

6'' CLASS150 WCB cast steel flanged globe valve with handwheel6'' CLASS150 WCB cast steel flanged globe valve with handwheel6'' CLASS150 WCB cast steel flanged globe valve with handwheel6'' CLASS150 WCB cast steel flanged globe valve with handwheel6'' CLASS150 WCB cast steel flanged globe valve with handwheel
