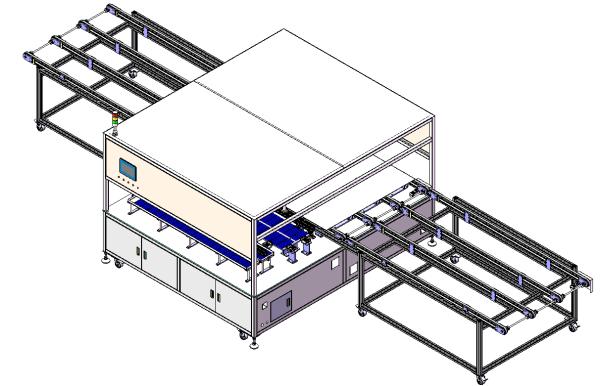

Solar Panel Auto Layup Machine for PV Production Line
Solar Panel Auto Layup Machine for PV Production Line
Specifications
Brand Name :
YNTECH
Model Number :
PBJ-200
Place of Origin :
CHINA
MOQ :
1
Price :
50000-100000
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
15-25Days
Packaging Details :
wooden package
Description

Solar Panel Auto Layup Machine for PV Production Line

—— Precision, Efficiency & Reliability for Your Solar Module Production

1. Product Overview

The YNTECH solar cell typesetting machine is a high-precision, fully automatic solution designed for solar module manufacturing. It is engineered to accurately arrange and position solar cell strings, ensuring consistent alignment and maximum efficiency in your production line.
Built with industrial-grade components and a compact footprint, this machine is ideal for both small-scale workshops and large-scale PV factories, helping you boost throughput while maintaining strict quality standards.

2. Core Advantages

  • Ultra-fast Typesetting: Average 8 seconds per string, supporting high-volume production
  • High Precision & Low Defect: Defect rate controlled below 0.1%, ensuring stable module quality
  • Wide Compatibility: Supports mainstream solar cell sizes from 156mm to 210mm
  • Compact & Space-Saving: Optimized footprint to fit into most existing production layouts
  • Easy Integration: Seamlessly connects with upstream stringers and downstream assembly lines

3.Application Scenarios

This machine is widely used in the pre-assembly stage of solar module production lines, directly connecting with solar cell stringers and upstream equipment. It is suitable for:
  • Small to medium-sized solar module factories
  • New energy equipment integration projects
  • Production lines producing 300W–700W+ PV panels

Technical parameters

Machine Size

L: 2600MM W: 1500MM H: 1600MM

No include assembly line

Product Specification

L:300MM----2300MM

W:156MM----210MM

Working Speed

Typesetting speed average 8 seconds per string

Defect rate

Less than one thousandth

Machine Weight

500KG

Equipment power and voltage

Power:2KW Voltage:220V--240V
Equipment air pressure

0.45--0.6 Mpa

Equipment use environment

Use temperature(-10--40 ℃)Humidity(85%RH Below)

4.Key Features

✅ Fully Automatic Typesetting: No manual intervention required, reducing labor cost and human error
✅ Wide Range Compatibility: Works with most common mono/polycrystalline solar cell sizes
✅ Stable Performance: Designed for long continuous operation with minimal downtime
✅ Easy Maintenance: Modular design allows quick access for cleaning and component replacement

✅ Safety & Reliability: Built-in safety mechanisms to protect operators and equipment

5.Why Choose YNTECH?

At YNTECH, we focus on providing cost-effective, high-quality PV production equipment for global solar manufacturers. Every machine is rigorously tested to meet international standards, and we offer full after-sales support including installation guidance, training, and spare parts supply.
