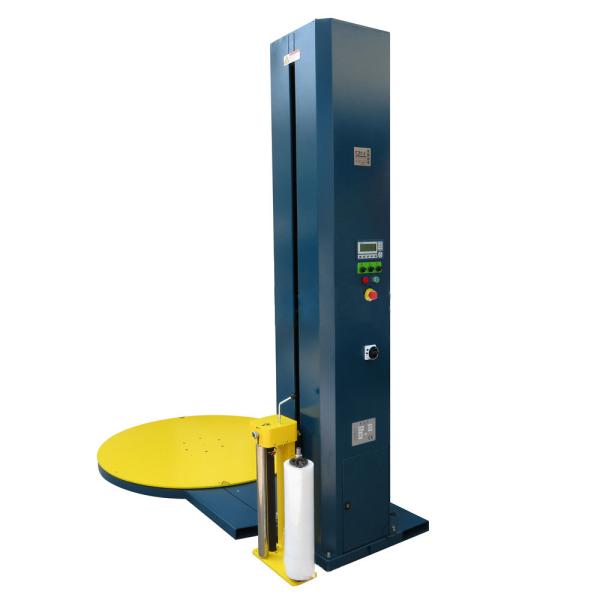

Automatic stretch wrapping machine Maximum packing height 2000mm
Automatic stretch wrapping machine Maximum packing height 2000mm
Specifications
Model Number :
LM-2000
Place of Origin :
China
Maximum packing height: :
2000mm
Column height: :
2400mm
Maximum packing weight: :
2000kg
Turntable diameter: :
1650mm
Description

Automatic stretch wrapping machine

Technical parameters:

Maximum packing height: 2000mm

Column height: 2400mm

Maximum packing weight: 2000kg

Turntable diameter: 1650mm

Turntable height: 80mm

Turntable speed: 1-12r/m

Turntable motor: 0.75KW

Lift motor: 0.37KW

Stretch motor: 0.22KW

weight: 650kg

PLC programmable control.

> the top and bottom winding layers, times, overtopping time and reinforcement layer number 0-9.

LED display screen can be set directly on the panel.

Simple operation: the whole packaging process can be completed by pressing the automatic operation button.

Photoelectric switch to automatically detect the height of the goods.

Selection of electrical control components, high reliability.

Automatic manual switching at any time.

Control is simple and convenient for manual control operation

Turntable adopts variable frequency speed regulation and soft start and slow stop of turntable to prevent goods from collapsing due to inertia.

The user can adjust the tension of the winding film through the screw according to the characteristics of the goods and their own needs.
