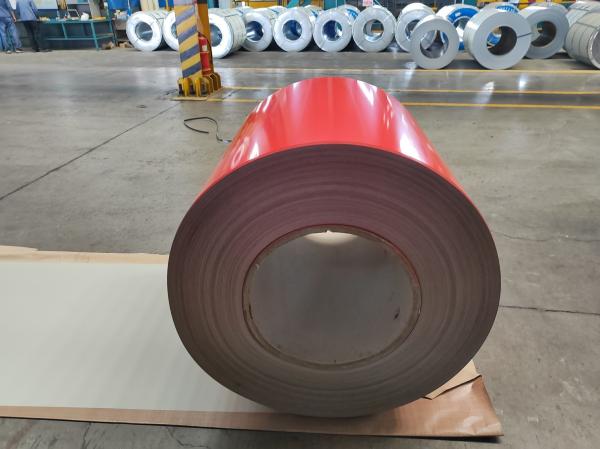

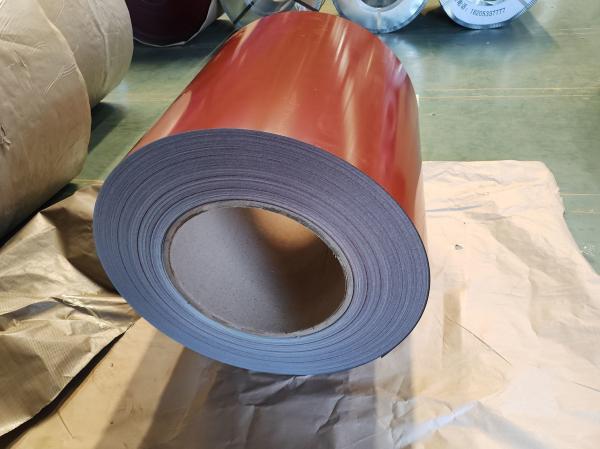

DX51D+Z Prepainted Galvanized Steel Coil with 10–25μm Top Coating and 0.11–1.2mm Thickness for Construction Panels

1. Product Overview

Prepainted galvanized steel coil is widely used in construction panels, roofing sheets, wall cladding, and light fabricated building components where both corrosion protection and decorative surface finish are required. Compared with bare galvanized substrate, the organic paint layer adds color, surface uniformity, and additional resistance to weather exposure.

For DX51D+Z based PPGI, the combination of galvanized substrate and top coating is suitable for roll forming, bending, and panel fabrication. Thickness from 0.11 mm to 1.2 mm covers lightweight cladding and general building sheet applications, while different paint systems can be selected according to environment and service life target.

2. Technical Solution

Product performance is based on:

• Galvanized steel substrate providing base corrosion protection
• Organic top coating adding barrier protection and decorative finish
• Different paint systems for different outdoor and industrial environments
• Controlled paint thickness for appearance and coating durability
• Balanced mechanical properties for forming and panel fabrication

In practical use, the substrate strength affects forming stability, while coating type and paint thickness affect weather resistance, chalking behavior, and surface durability. For construction use, coating selection is usually matched to climate, exposure level, and project life expectation.

3. Specifications

4. Application

• Roofing sheets and roof accessories
• Wall cladding and facade panels
• Sandwich panel outer skins
• Light steel structure enclosure parts
• Garage doors and rolling shutters
• Decorative and functional building panels

5. Processing

• Cut-to-length sheet production
• Slitting into narrow strips
• Roll forming for roofing and wall profiles
• Bending and folding
• Panel pressing and edge forming
• On-site installation after screw fixing or concealed fastening design

6. Advantages

• DX51D+Z substrate supports common roll forming and panel fabrication
• 10–25 μm top coating provides decorative finish and additional surface protection
• Multiple coating systems allow selection by environment and project requirement
• 700–1250 mm width range fits mainstream construction panel lines
• RAL color system supports project color matching
• 3–8 MT coil weight is suitable for standard decoiling and sheet processing operations

7. How to Choose

• General indoor or mild outdoor use → PE is commonly selected
• Stronger weather resistance requirement → SMP or HDP is often preferred
• Higher UV and long-term exterior exposure → PVDF is commonly used
• More demanding decorative surface requirement → select suitable top coating thickness within 20–25 μm
• Roll forming and roofing panel production → confirm thickness, width, coil ID, and coil weight with equipment capacity

8. FAQ

Q1: What is the difference between PPGI and ordinary galvanized steel coil?
PPGI uses a galvanized steel substrate plus an organic paint coating, so it provides both corrosion protection and a finished decorative surface.

Q2: Which coating system is suitable for general construction use?
PE is commonly used for standard construction applications, while SMP, HDP, or PVDF are selected when higher outdoor durability is required.

Q3: Is 25 μm top coating better than 10 μm?
A thicker top coating generally provides better surface coverage and can improve coating durability, but the final choice should match project environment and cost target.

Q4: Can this coil be roll formed into roofing or wall sheets?
Yes, DX51D+Z based prepainted galvanized steel coil is commonly used for roll formed construction panels.

Q5: What coil size is suitable for standard processing equipment?
Coil IDs of 508 mm and 610 mm and coil weights of 3–8 MT are commonly used in industrial decoiling and roll forming lines.
