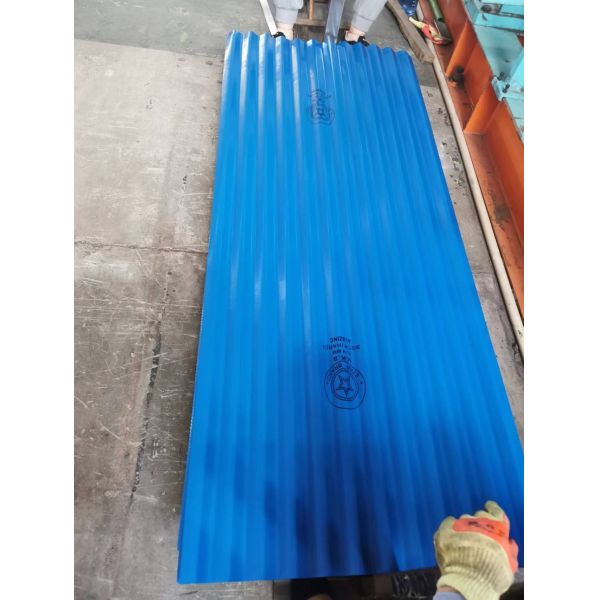

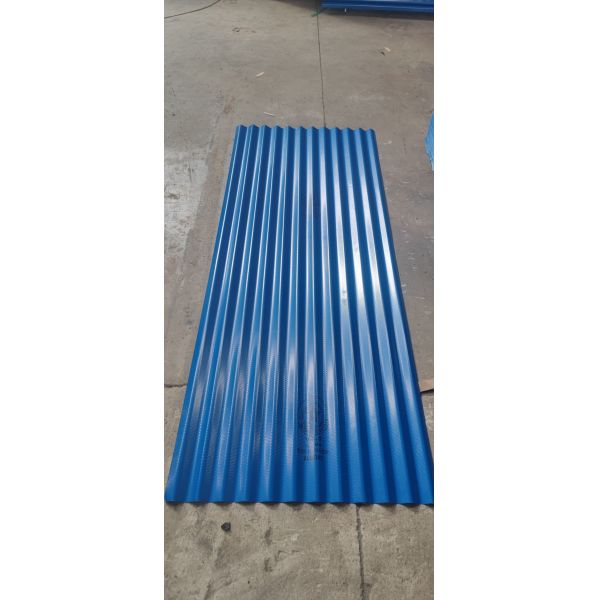

Galvanized Corrugated Metal Roofing Sheets 0.14–1.50mm with 30–275g/m² Zinc Coating for Roofing and Wall Panels

1．Product Overview

Galvanized corrugated metal roofing sheets are used for roofing, wall cladding, warehouse buildings, workshops, agricultural buildings, and light steel structure projects.

The product is made from hot dipped galvanized steel and formed into a corrugated profile. The zinc coating provides corrosion protection, while the corrugated shape improves sheet rigidity and drainage performance for roofing applications.

2．Technical Solution

The galvanized steel sheet is roll formed into a corrugated profile with a standard wave width of 76mm and wave height of 17–17.5mm.

The zinc coating range of 30–275g/m² supports different project environments, from standard roofing use to applications requiring stronger corrosion protection.

Available spangle options include regular, big, small, and zero spangle to match different appearance and project requirements.

3．Specifications

4．Application

This product is suitable for roofing sheets, wall panels, warehouses, workshops, residential buildings, agricultural sheds, temporary structures, fencing panels, and general building enclosure systems.

It is commonly used where lightweight roofing, easy installation, corrosion protection, and economical sheet coverage are required.

5．Processing

• The galvanized steel sheet is roll formed into corrugated roofing profiles.
• Length can be supplied according to project requirements.
• Sheets can be packed in bundles for container loading or bulk shipment.
• Customized thickness, width, length, zinc coating, and spangle can be selected according to the final application.

6．Advantages

• The corrugated profile improves sheet rigidity and roof drainage performance.
• The zinc coating range of 30–275g/m² supports different corrosion protection requirements.
• The 0.14–1.50mm thickness range covers common roofing and wall cladding applications.
• Multiple effective widths support different roof layout and installation designs.
• SGCC, SGCH, and G550 grades are available for different strength and forming requirements.
• Standard export packing supports safe long-distance transportation.

7．How to Choose

• Choose 0.14–0.30mm thickness for lightweight roofing and temporary structures.
• Choose 0.35–0.60mm thickness for general roofing and wall cladding.
• Choose higher zinc coating levels for humid, coastal, or more exposed environments.
• Choose G550 when higher strength and better panel rigidity are required.
• Choose effective width according to roof design, overlap method, and installation efficiency.
• Confirm length, profile size, coating weight, and packing method before production.

8．FAQ

Q1．What is the common application of galvanized corrugated roofing sheets
They are commonly used for roofing, wall cladding, warehouses, workshops, sheds, and light steel structure buildings.

Q2．What zinc coating range is available
The available zinc coating range is 30–275g/m².

Q3．Can the sheet length be customized
Yes. Length can be customized according to project requirements.

Q4．What spangle types are available
Regular, big, small, and zero spangle are available.

Q5．Is this product suitable for outdoor roofing
Yes. Hot dipped galvanized corrugated sheets are widely used for outdoor roofing and wall cladding applications.
