1．Product Overview

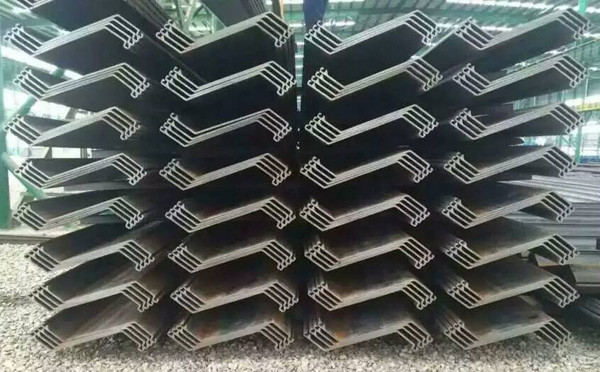

Cold rolled Z type steel sheet piles are structural steel retaining products designed for temporary and permanent earth retention systems.

Compared with conventional U type sheet piles, Z profile sheet piles provide higher section modulus and bending performance with lower steel

consumption, making them suitable for large-scale marine and foundation engineering projects.

The interlock design allows efficient load transfer and stable wall alignment during installation. Z type sheet piles are commonly used in harbor construction, cofferdams, flood protection systems, retaining walls, underground structures, and bridge foundation projects.

2．Technical Solution

The cold rolling manufacturing process provides dimensional consistency and controlled section geometry for interlock accuracy. The Z-shaped cross section places the interlocks away from the neutral axis, increasing bending resistance and improving structural efficiency.

Compared with traditional U piles, Z type sheet piles reduce overall material consumption while maintaining required section performance. They can be supplied as single piles, loose double piles, crimped piles, or fully welded combined piles according to project installation requirements.

3．Specifications

4．Structural Features

5．Application

Cold rolled Z steel sheet piles are widely used in:

• Harbor and port construction
• Cofferdam systems
• Flood protection walls
• Bridge foundation retaining systems
• Underground parking structures
• River embankment reinforcement
• Temporary excavation support
• Marine engineering projects
• Industrial foundation systems

6．Processing

Products can be supplied in customized lengths and pile combinations according to project requirements.

Additional processing services include:

• Cutting
• Welding
• Combined pile assembly
• Surface treatment
• Protective coating
• Project-specific fabrication

7．Advantages

• Higher structural efficiency than traditional U piles
• Lower material weight and transportation cost
• Reliable interlock engagement during installation
• Suitable for permanent and temporary retaining structures
• Applicable for marine and infrastructure engineering
• Compatible with multiple international standards

8．How to Choose

For projects requiring higher bending performance and reduced steel consumption, Z type sheet piles provide an efficient structural solution.

Material grade selection should consider load conditions, corrosion environment, and installation depth.

Q235 and Q345 are commonly used for general civil engineering, while ASTM A572 and EN structural grades are suitable for higher-strength applications.

9．FAQ

Q1．What is the advantage of Z type sheet piles compared with U type piles
Z type piles provide larger section modulus and better bending resistance with lower steel weight.

Q2．What installation forms are available
Single piles, loose double piles, crimped piles, and fully welded pile combinations are available.

Q3．Are customized dimensions supported
Yes. Width, height, thickness, and pile length can be customized according to engineering requirements.

Q4．What environments are suitable for Z sheet piles
They are widely used in marine engineering, retaining walls, bridge foundations, flood protection, and underground structures.

Q5．What standards are commonly used for production
Common production standards include EN10249-1, EN10249-2, ASTM standards, and Chinese structural steel standards.
